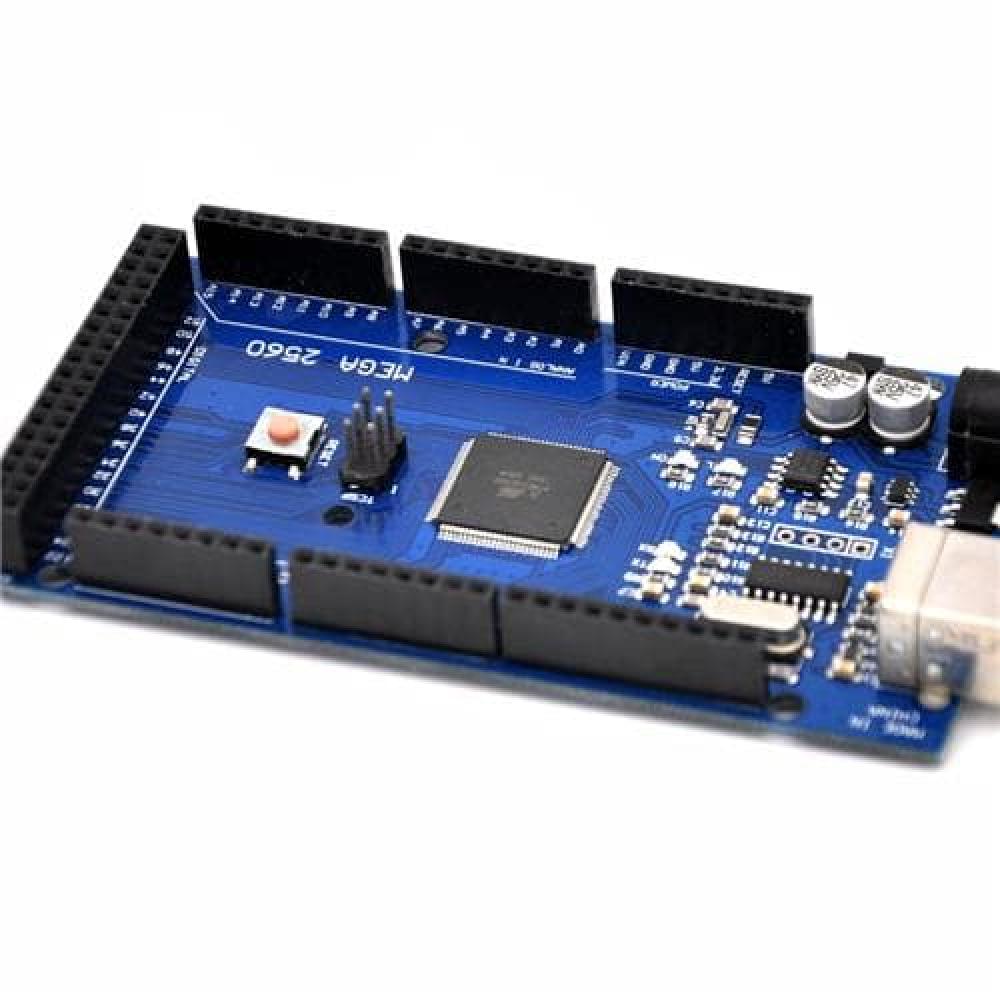

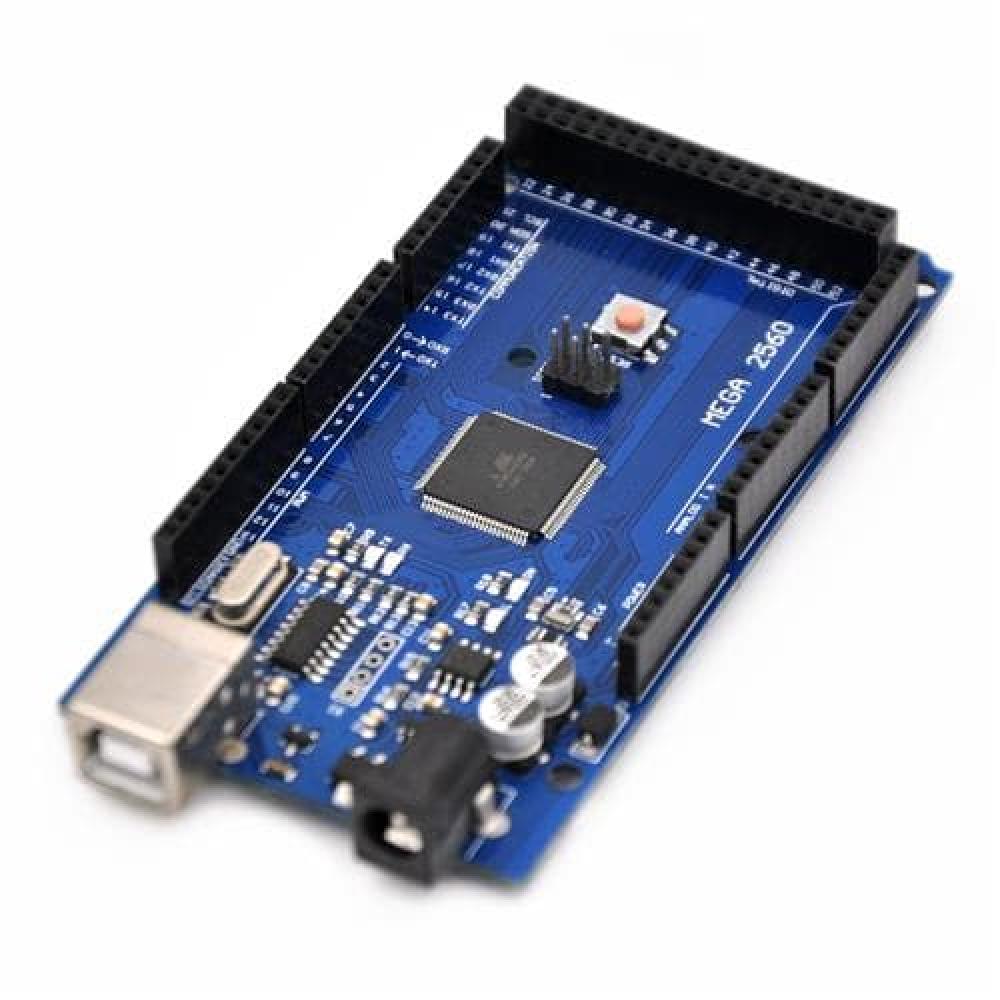

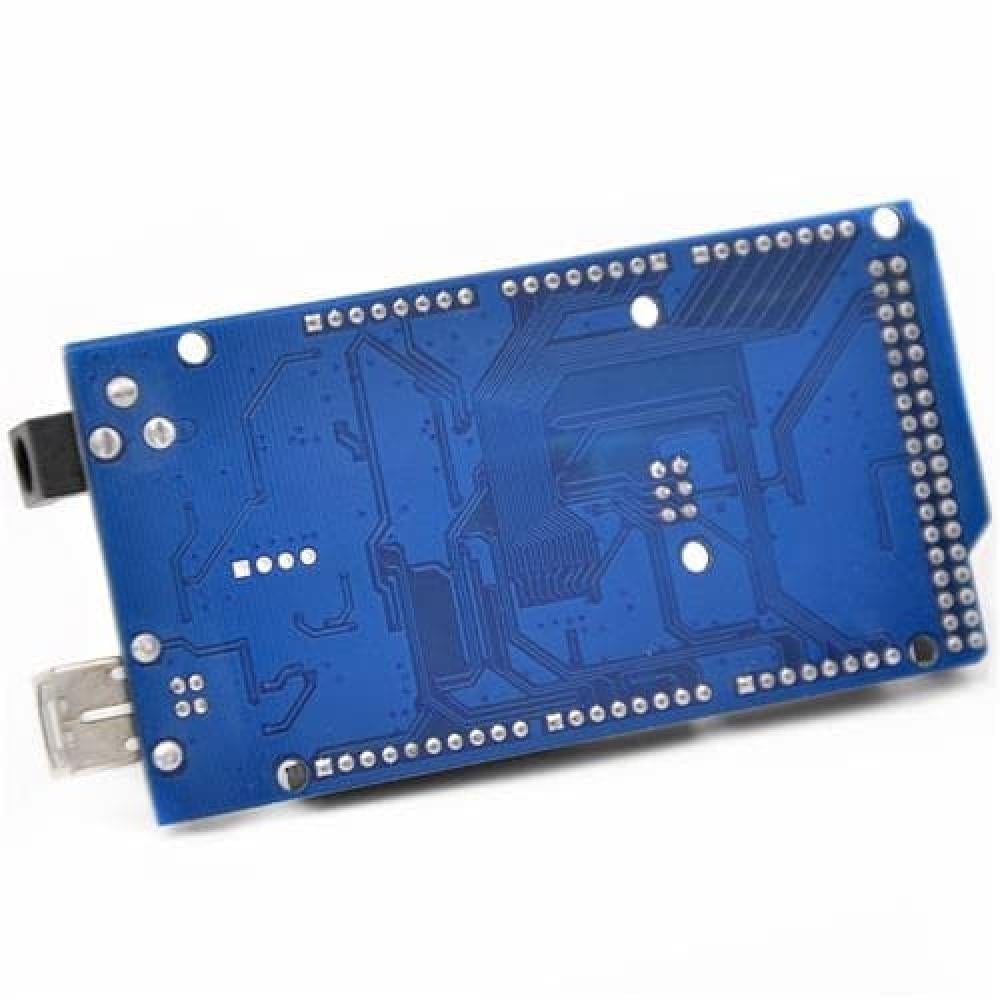

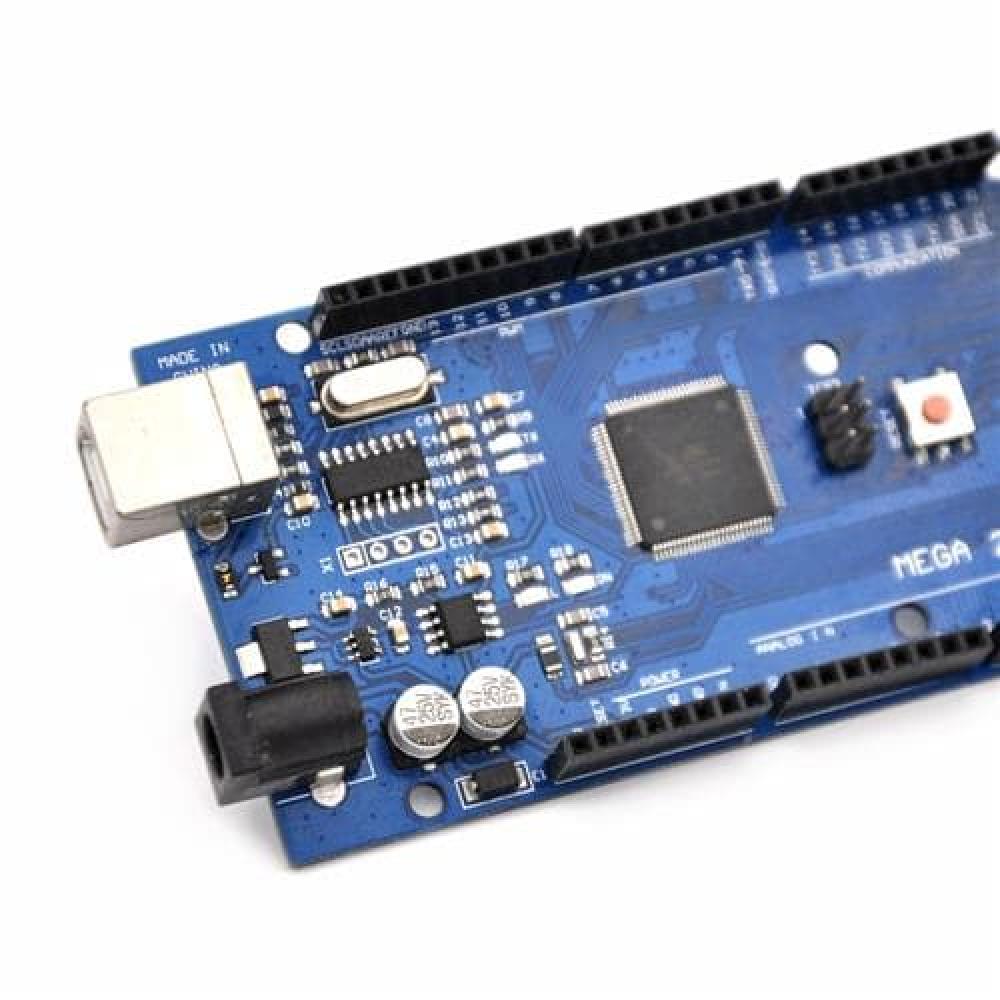

🔷 MEGA 2560 R3 Development Board – Improved Version 🔷
The MEGA 2560 R3 is a powerful development board based on the ATmega2560 microcontroller, making it ideal for large and complex projects requiring more I/O pins and memory. This improved version features the CH340 USB-to-serial converter, ensuring reliable and easy USB communication. Fully compatible with the Arduino IDE, it supports most Arduino shields and external modules.
✅ Technical Specifications:
- Microcontroller: ATmega2560.
- USB Converter: CH340.
- Operating Voltage: 5V.
- Input Voltage (recommended): 7V – 12V.
- Digital I/O Pins: 54 (15 provide PWM output).
- Analog Input Pins: 16.
- Flash Memory: 256KB (8KB reserved for bootloader).
- SRAM: 8KB.
- EEPROM: 4KB.
- Clock Speed: 16MHz.
- Communication: 4× UART, SPI, I2C.
- USB Port: Mini/Micro USB (depending on version).
- Board Dimensions: ~101 × 53 mm.
- Approximate Weight: 38 g.
🔹 Key Features:
✔ Improved version with CH340 USB converter – stable and cost-effective.
✔ Large number of I/O pins for complex projects.
✔ Fully compatible with Arduino IDE and libraries.
✔ Supports shields such as Ethernet, LCD, and motor drivers.
✔ Perfect for robotics, IoT, and large-scale control systems.
📌 Common Applications:
- Advanced robotics projects.
- Industrial and home automation systems.
- Large-scale IoT projects.
- Multi-sensor and multi-module applications.
- Advanced educational projects in electronics and engineering.
