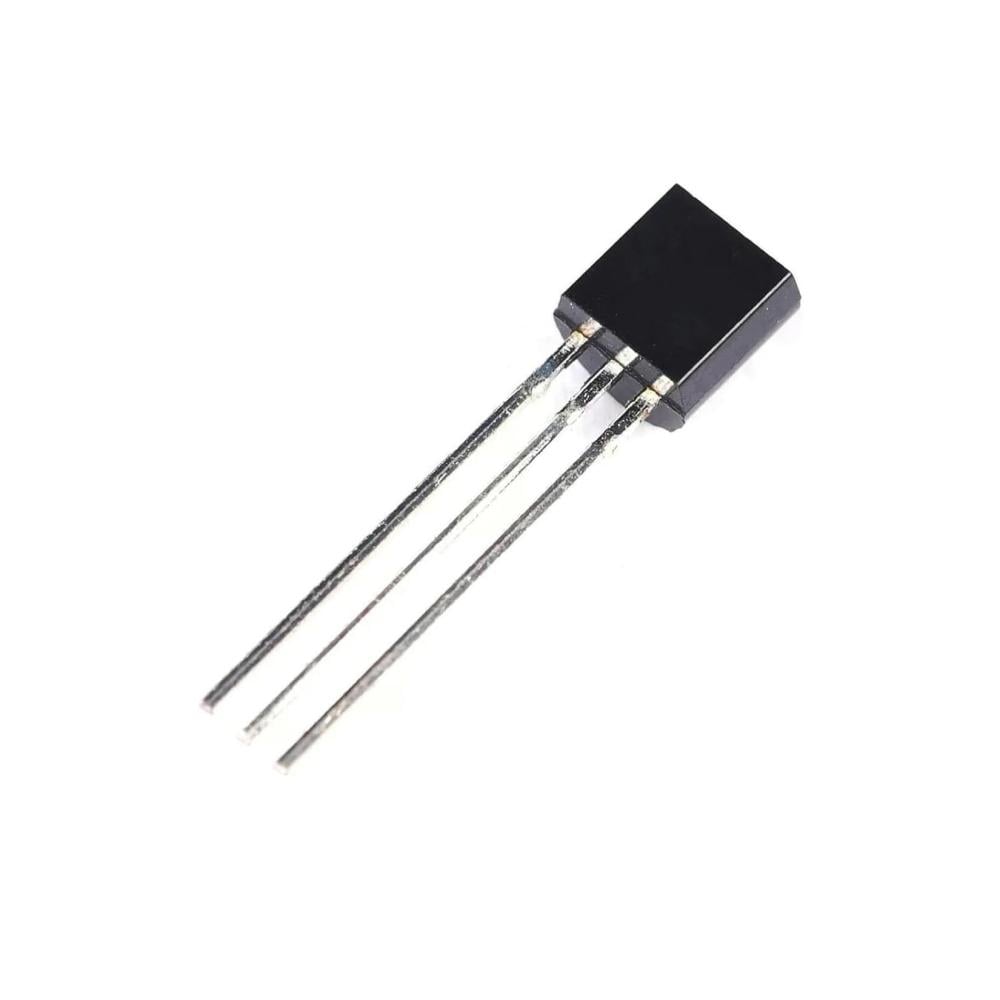

⚡ PN2222A NPN Bipolar Junction Transistor (BJT) ⚡
The PN2222A is a general-purpose NPN BJT transistor designed for amplification and low-to-medium power switching applications. It can handle currents up to 600mA and voltages up to 40V between collector and emitter, making it ideal for switching and analog signal applications.
✅ Technical Specifications:
- Transistor Type: NPN - Bipolar Junction Transistor (BJT)
- Material: High-quality silicon for enhanced performance
- Number of Pins: 3 - Base (B), Emitter (E), Collector (C)
- Collector-Emitter Voltage (Vce): 40V
- Collector-Base Voltage (Vcb): 75V
- Continuous Collector Current (Ic): 600mA
- DC Current Gain (hFE): 35 - 300 (varies with base current)
- Maximum Frequency (fT): 250MHz
🔹 Key Features:
✔ Functions as an electronic switch or signal amplifier.
✔ Supports fast and reliable operation in control applications.
✔ Simple and easy to integrate into electronic circuits.
✔ Compatible with Arduino, Raspberry Pi, and digital circuits.
✔ Efficient for low and medium voltage applications.
📌 Common Applications:
- Controlling small loads such as motors and relays.
- Signal amplification in analog electronic circuits.
- Used as an electronic switch in digital circuits.
- Switching applications in robotics and electronic projects.
- Developing low-voltage and low-current control circuits.
PN2222A Transistor Pin Configuration:
According to the provided image, when viewing the flat side of the PN2222A transistor (where the markings are visible), the pin configuration is as follows:
1️⃣ Emitter (E): Outputs the electrical current to the circuit.
2️⃣ Base (B): Controls the current flow between the collector and emitter.
3️⃣ Collector (C): The main entry point for current into the transistor.
📌 How to Connect in Electronic Circuits:
- Applying a small positive voltage to the base allows current to flow from the collector to the emitter.
