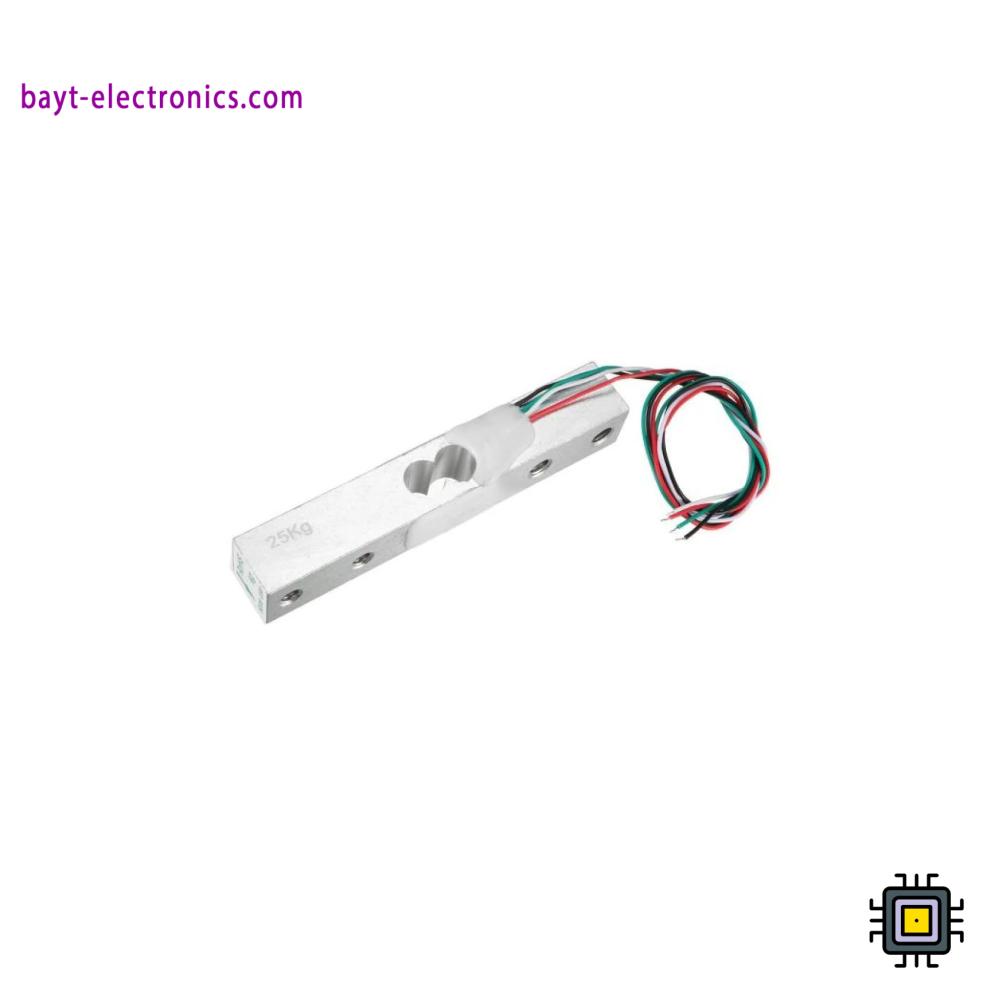

⚙️ YZC-133 Load Cell Sensor 20Kg for Electronic Kitchen Scale with Wires ⚙️
The YZC-133 load cell is a high-precision sensor designed for accurate weight measurement up to 20kg.
It works on the strain gauge principle, converting mechanical force into electrical signals, making it ideal for kitchen scales, educational projects, smart weighing systems, and small industrial applications.
✅ Technical Specifications:
- Model: YZC-133
- Capacity: 20Kg Max
- Recommended Excitation Voltage: 5V – 10V DC
- Output Signal Type: Analog (mV level)
- Sensitivity: 1.0 ±0.15 mV/V
- Non-linearity: ≤ ±0.03% F.S.
- Input Resistance: ≈ 1kΩ
- Output Resistance: ≈ 1kΩ
- Material: High-precision Aluminum Alloy
- Mounting: Fixed holes on both ends
- Cable Type: 4 wires (Red, Black, White, Green)
- Dimensions: ≈ 80 × 12 × 12 mm
- Weight: ≈ 25g
🔹 Wire Connections:
- Red (E+): Positive excitation
- Black (E-): Negative excitation
- White (S-): Negative signal
- Green (S+): Positive signal
🔹 Key Features:
✔ High measurement accuracy up to 20kg.
✔ Lightweight and durable aluminum construction.
✔ Stable and fast analog signal response.
✔ Easy to integrate with HX711 amplifier and Arduino/ESP32.
✔ Perfect for DIY weighing, automation, and robotics.
📌 Common Applications:
- Electronic kitchen scales.
- Smart weighing systems.
- Educational and engineering projects.
- Robotic load sensing applications.
- Pressure measurement systems.
