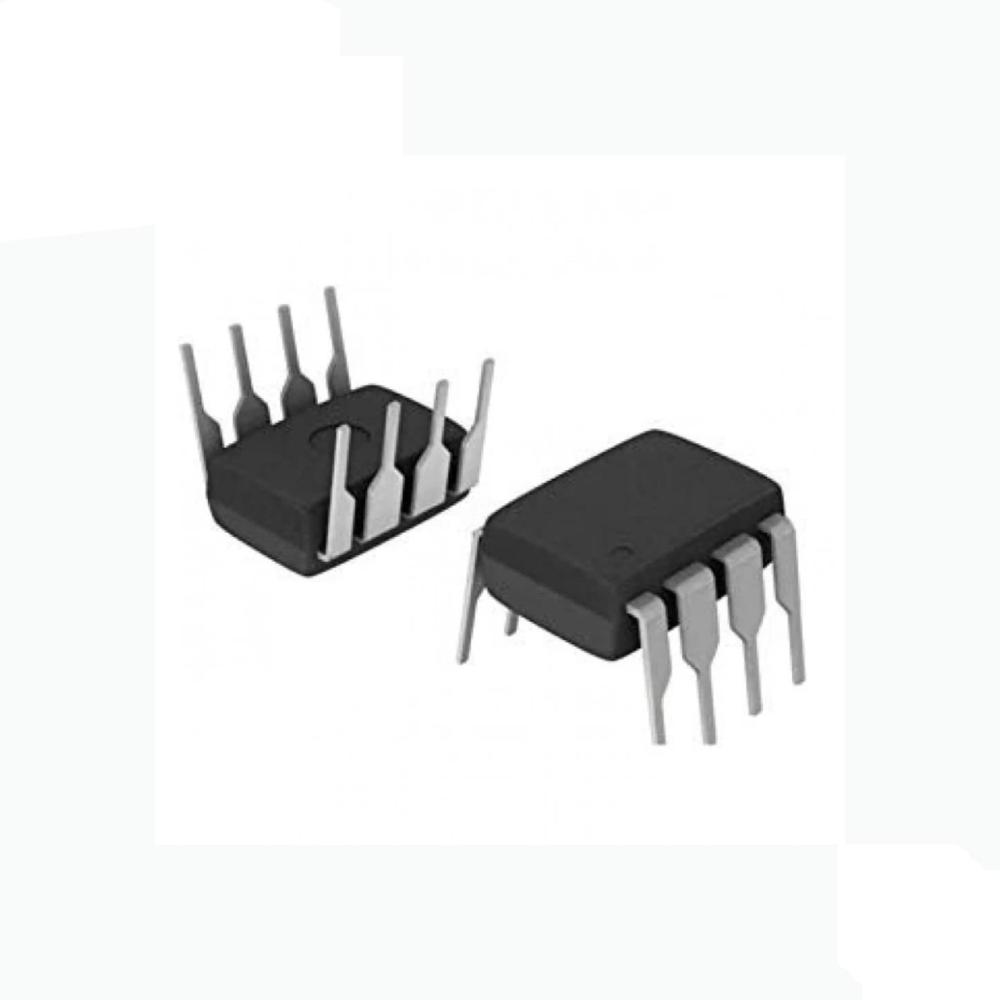

⏱️ NE555P Timer IC - The Ultimate Solution for Timing and Oscillation Applications ⏱️
The NE555P is a versatile integrated circuit (IC) used in timing, pulse generation, and oscillation applications. Since its introduction in the 1970s, this IC has become a staple in numerous electronic applications due to its reliability and ease of use.
✅ Technical Specifications:
- IC Type: 555 Timer
- Operating Voltage Range: 4.5V to 16V
- Supply Current at 5V: 3 to 6 mA
- Supply Current at 15V: 10 to 15 mA
- Maximum Output Current: Up to 200 mA
- Operating Temperature Range: 0°C to 70°C
- Maximum Operating Frequency: Up to 0.5 MHz
🔹 Features:
- Flexible Configuration: Can be used in various operating modes such as Monostable and Astable, allowing for precise pulse generation and continuous oscillations.
- High Output Current Capability: Capable of driving loads up to 200 mA, making it suitable for directly powering small motors and LED indicators without the need for additional components.
- Wide Voltage Range: Operates efficiently within a voltage range of 4.5V to 16V, ensuring compatibility with various electronic systems.
- Excellent Thermal Stability: Features a stability rate of 50 ppm/°C, ensuring precise timing accuracy under varying environmental conditions.
📌 Common Applications:
- Time Delay Generation: Used to create precise time delays in electronic circuits.
- Oscillators: Functions as oscillators to generate fixed-frequency signals in applications like signal generators and LED flash circuits.
- Pulse Width Modulation (PWM): Employed in PWM applications to control motor speeds or light intensity.
- Timer Circuits: Utilized in designing timer circuits for various applications such as alarms and timing systems.
🔹 Approximate Product Weight: 10 grams.
