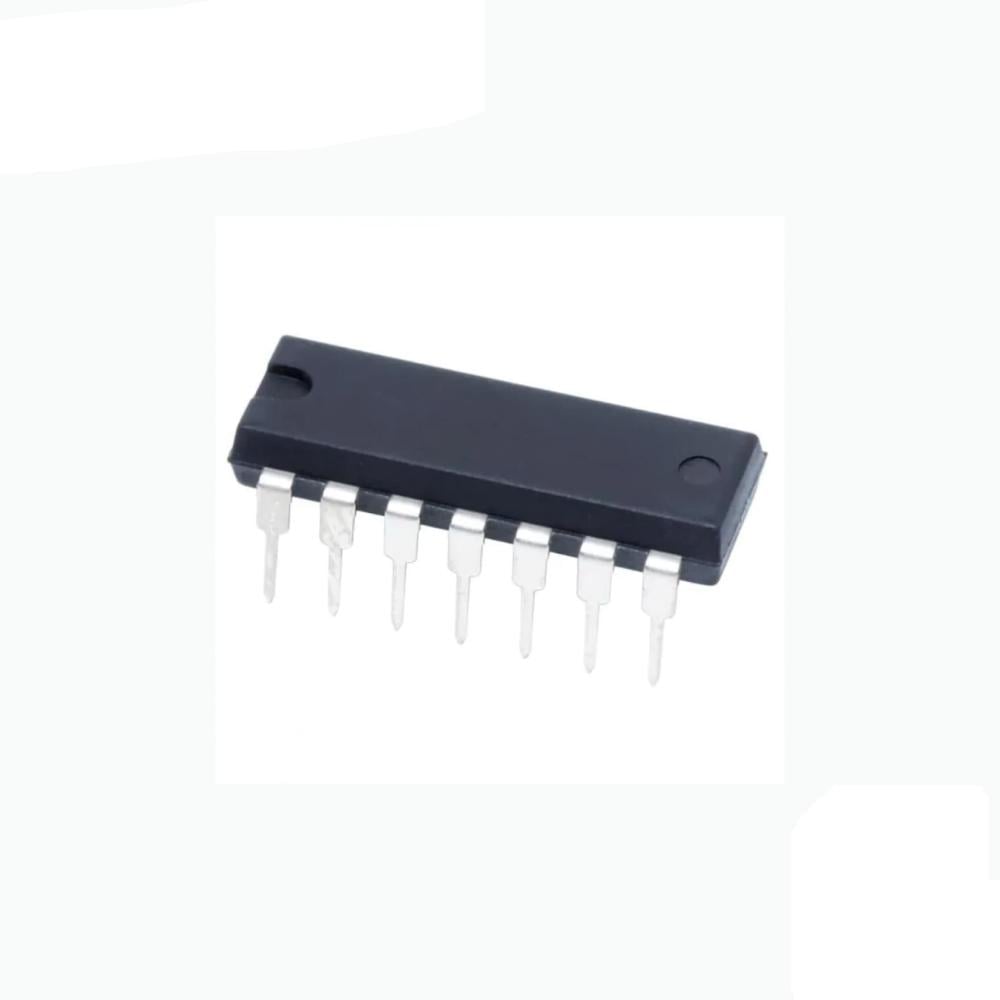

🔌 SN74HC08N AND Gate - 7408 Quad Logic IC 🔌
The SN74HC08N (7408) Logic IC contains four independent AND gates, making it essential for digital circuit design, embedded systems, and logical applications. These gates output a HIGH signal (1) only when both inputs are HIGH (1), making them ideal for data processing, counters, and digital control applications.
✅ Technical Specifications:
- Model: SN74HC08N (7408)
- Number of Gates: 4 Independent AND Gates
- Number of Inputs per Gate: 2 Inputs
- Number of Outputs per Gate: 1 Output
- Operating Voltage Range: 2V - 6V
- Power Consumption: Low-power, efficient operation
- Propagation Delay: Low for high-speed operation
- Operating Temperature Range: -40°C to 85°C
🔹 Key Features:
✔ Low power consumption with high efficiency.
✔ Contains 4 separate AND gates, enhancing design flexibility.
✔ Used in building digital circuits requiring complex logical operations.
✔ Compatible with digital circuits and embedded systems like Arduino & Raspberry Pi.
✔ Ideal for data processing, counters, and smart control units.
📌 Common Applications:
- Designing digital and logical circuits.
- Smart control and industrial automation systems.
- Robotics and embedded system projects.
- Digital data processing and logic flow control.
- Digital counters and interactive logic gates applications.
🔹 Approximate Weight: 10g
