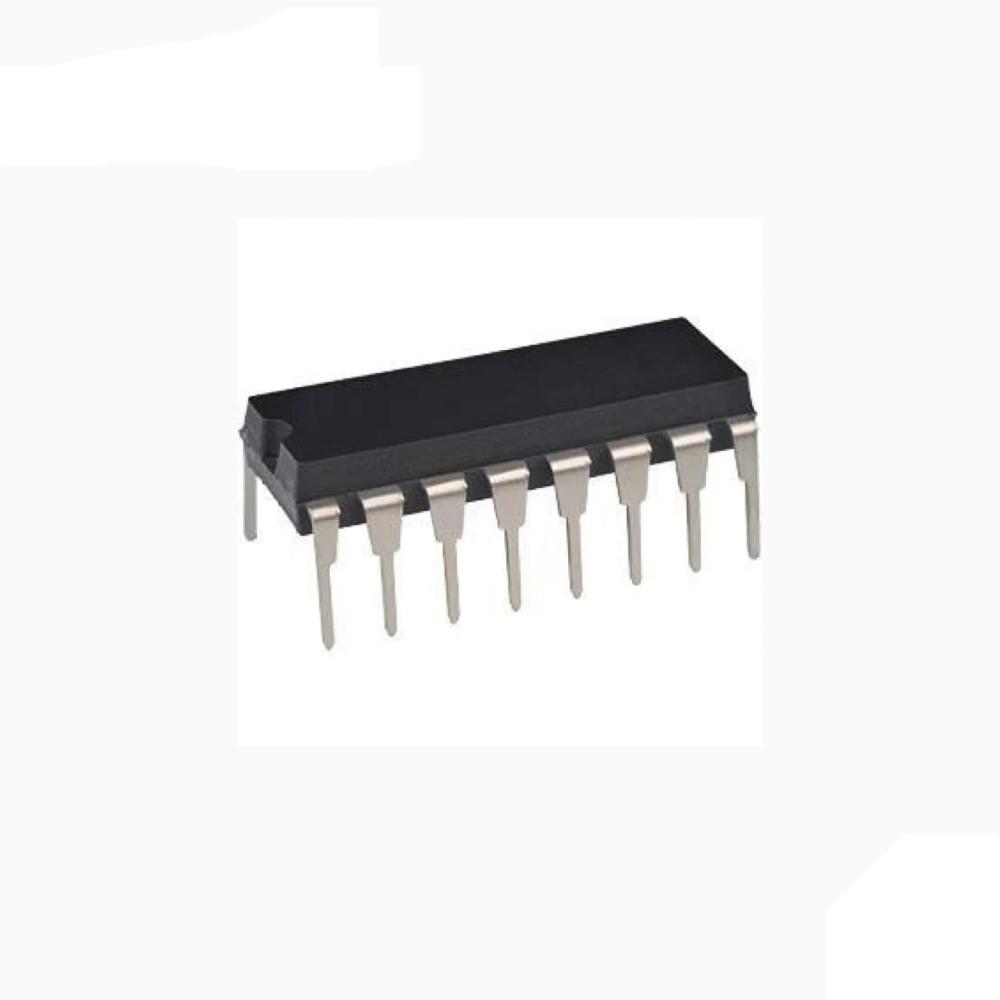

🔄 SN74HC73N Dual J-K Flip-Flop with Clear and Negative-Edge Triggering 🔄
The SN74HC73N is a dual J-K flip-flop featuring two independent flip-flops, each with individual J and K inputs, a negative-edge triggered clock input, and an asynchronous clear input. It is widely used in data storage, counter design, and digital signal processing applications.
✅ Technical Specifications:
- Number of Flip-Flops: 2
- Trigger Type: Negative Edge
- Clear Inputs: Asynchronous
- Operating Voltage Range: 2V to 6V
- Operating Temperature Range: -40°C to 85°C
- Propagation Delay: Approximately 30ns at 5V
- Quiescent Current: 4µA
🔹 Key Features:
- Stable input and output locking for reliable signal processing.
- Wide voltage range compatibility for various digital systems.
- Ideal for counters, data storage, and frequency division applications.
- Compatible with embedded systems like Arduino and Raspberry Pi.
- Used in timing applications such as frequency division and digital data storage.
📌 Common Applications:
- Digital circuit design requiring temporal data storage.
- Used in digital counters and frequency dividers.
- Robotics and embedded system projects.
- Digital signal conversion applications.
- Control of switching circuits and advanced logic gates.
🔹 Approximate Weight: 10 grams
