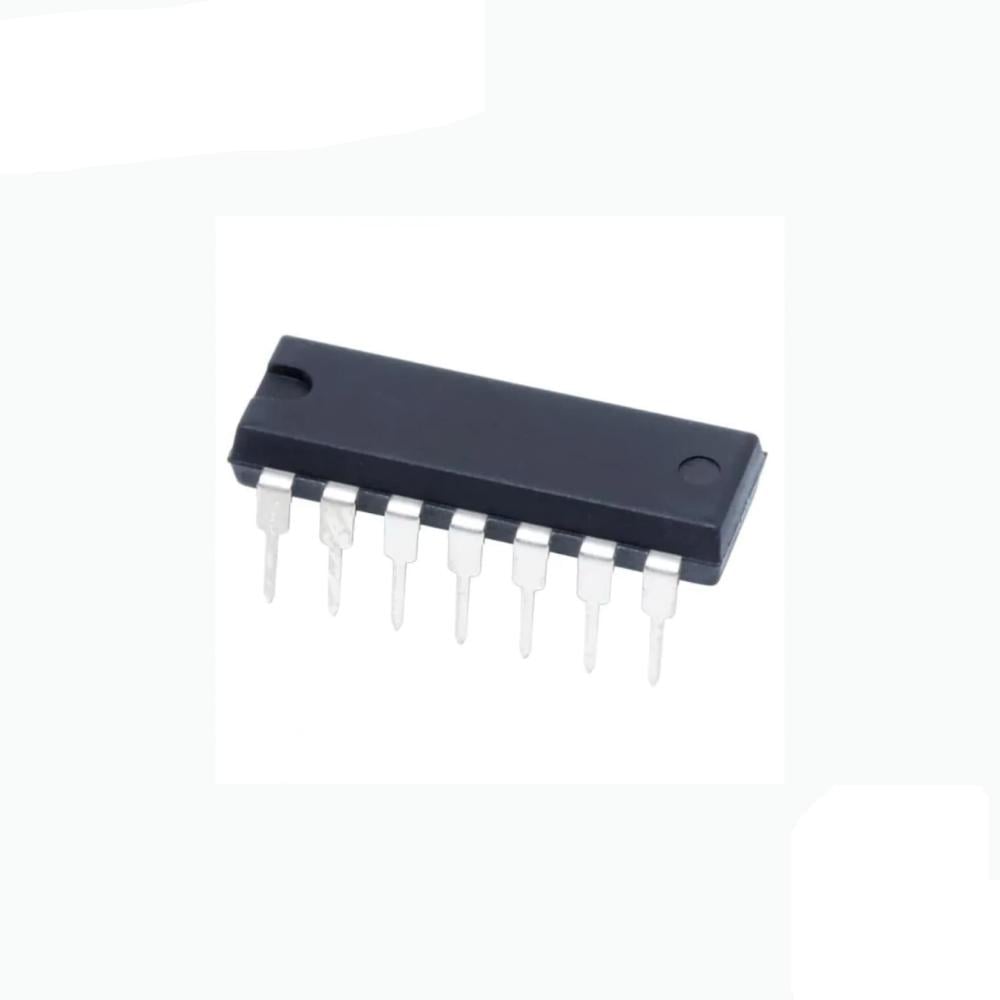

🔌 SN74HC32N OR Gate - 7432 Quad Logic IC 🔌
The SN74HC32N (7432) is a quad OR gate IC that produces a HIGH output (1) when any of the inputs are HIGH (1), making it ideal for signal comparison, logic processing, and digital signal control applications.
✅ Technical Specifications:
- Model: SN74HC32N (7432)
- Number of Gates: 4 Independent OR Gates
- Number of Inputs per Gate: 2 Inputs
- Number of Outputs per Gate: 1 Output
- Operating Voltage Range: 2V - 6V
- Power Consumption: Low-power, efficient operation
- Propagation Delay: Low for high-speed operation
- Operating Temperature Range: -40°C to 125°C
🔹 Key Features:
✔ Low power consumption with high efficiency.
✔ Contains 4 independent OR gates, enhancing design flexibility.
✔ Used in digital circuits that require logic signal comparison or merging.
✔ Compatible with embedded systems like Arduino & Raspberry Pi.
✔ Ideal for data processing, counters, and smart control units.
📌 Common Applications:
- Designing digital and logic circuits.
- Smart control and industrial automation systems.
- Robotics and embedded system projects.
- Logic signal processing in electronic applications.
- Used in digital processing units (ALU) and data comparison.
🔹 Approximate Weight: 10g
