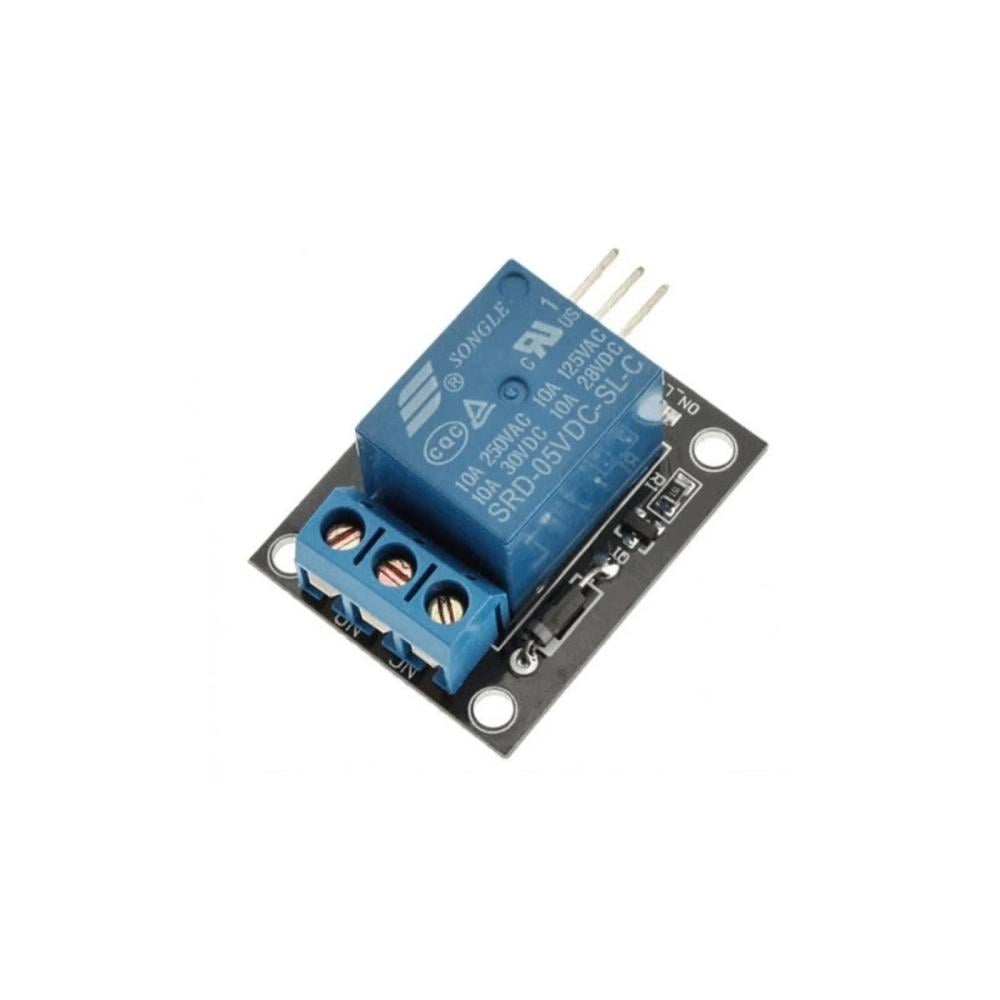

🔌 Low Current Single-Channel Relay Module with Mounting Holes – Compact and Reliable Control 🔌
This single-channel relay module is designed for controlling low-current electrical loads through low-voltage signals from Arduino, Raspberry Pi, ESP32, and other controllers. It features pre-drilled mounting holes for easy and secure installation in mechanical and electronic projects, supporting loads up to 10A.
✅ Technical Specifications:
- Channels: 1
- Operating Voltage: 5V DC
- Max Switching Current: 10A at 250V AC or 30V DC
- Relay Type: Mechanical (SPDT)
- Control Signal: Low-level trigger
- LED indicators for status monitoring
- Easy screw terminal connections
- Built-in mounting holes for easy installation
- Operating Temperature: -40°C to 85°C
🔹 Features:
- Stable and reliable load control
- Compact design ideal for embedded projects
- Visual LED indicators for easy operation monitoring
- Compatible with Arduino, Raspberry Pi, and other microcontrollers
- Fast response with low power consumption
📌 Common Applications:
- Small light or fan control
- Basic home automation projects
- Small pump or low-power device switching
- Alarm and monitoring systems
- Smart low-voltage control projects
🔹 Approximate Weight: 20 grams
