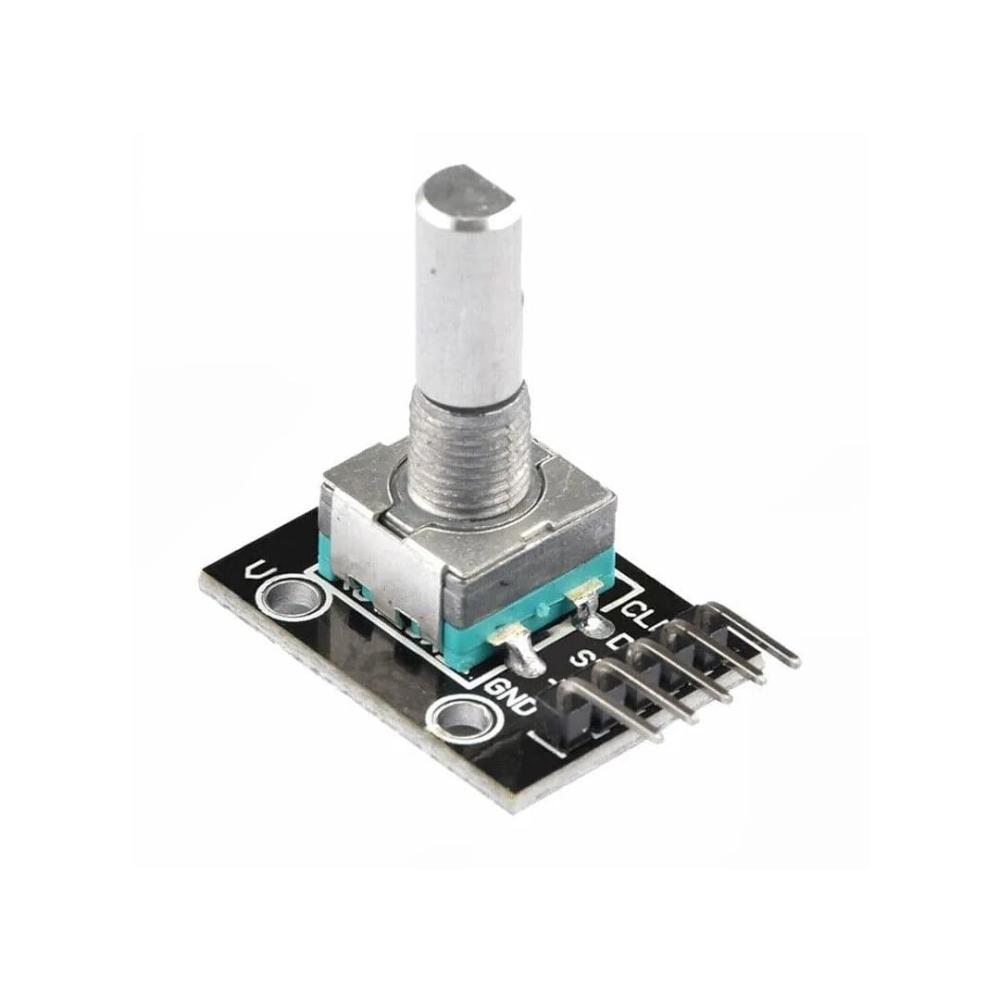

🔄 Rotary Encoder Module - Shaft Rotation Detection Unit 🔄
The rotary encoder is used to read rotational movement and convert it into digital pulses, allowing control over speed, direction, or positioning. It is ideal for robotics projects, electronic menu systems, and precision control systems using Arduino and ESP32.
✅ Specifications:
- Encoder Type: Incremental Rotary Encoder.
- Operating Voltage: 5V DC (also compatible with 3.3V with adjustments).
- Pins:
- GND (Ground)
- VCC (Power)
- CLK (Clock Signal)
- DT (Data Signal)
- SW (Push Button Switch)
- Rotatable shaft with integrated push-button functionality.
🔹 Key Features:
✔ Accurate reading of rotation direction and speed.
✔ Integrated push-button for additional control options.
✔ Easy to interface with Arduino, ESP32, and other microcontrollers.
✔ No re-initialization required at startup (unlike analog sensors).
✔ Perfect for menu navigation and multifunctional control systems.
🔹 Weight: 12 grams
📌 Common Applications:
- Navigation control for screen menus (e.g., control panels).
- Robotics and smart navigation systems.
- Angle or rotational tracking systems.
- Input devices for smart gadgets.
- Motor and servo control systems.
