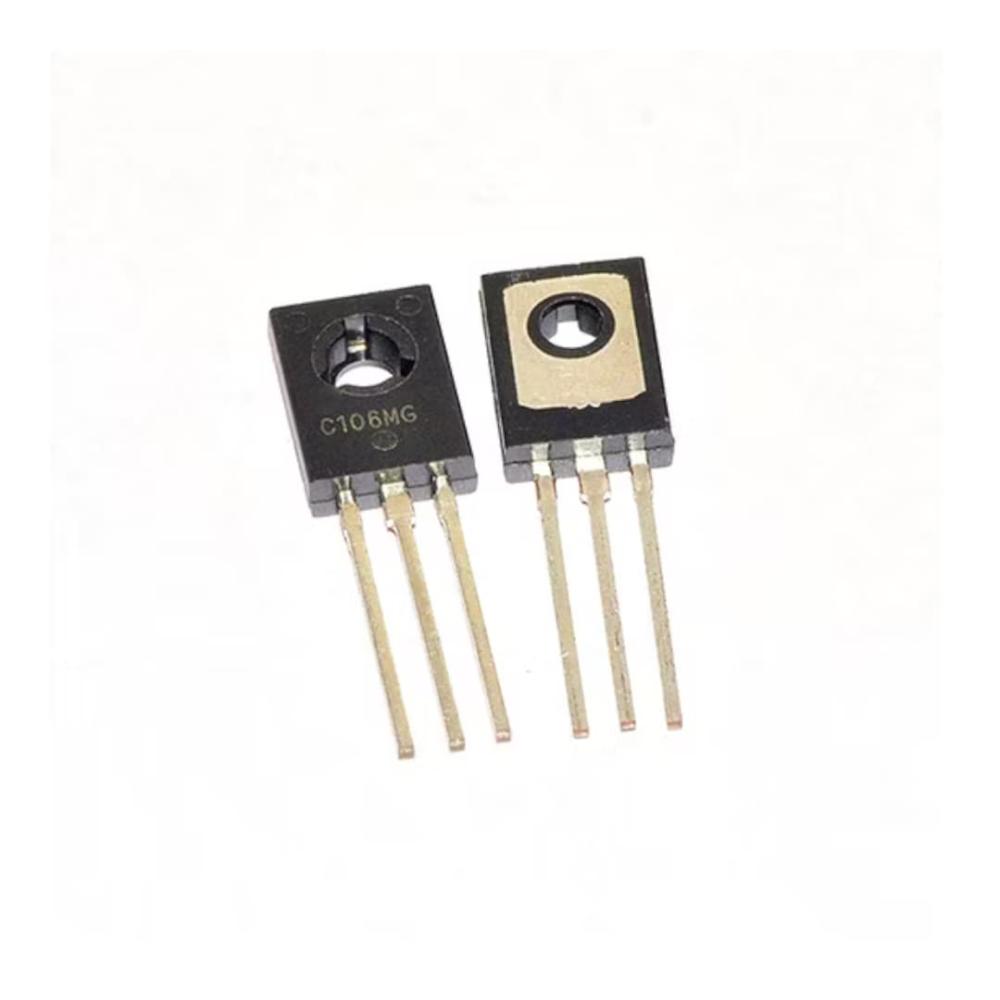

⚡ C106M Thyristor – Silicon-Controlled Rectifier ⚡
The C106M is a general-purpose SCR (Silicon-Controlled Rectifier) designed for switching and controlling AC or DC power with precision. Triggered via a low-voltage gate signal, it is ideal for power control, motor speed regulation, dimming systems, and other medium-load applications. The TO-220 package allows easy installation with a heat sink if needed.
- ✅ Specifications:
- Type: SCR / Thyristor
- Model: C106M
- Max Continuous Current: 4A
- Max Voltage: 400V
- Gate Trigger Voltage: ~0.8V – 1.5V
- Gate Trigger Current: ~200µA – 500µA
- Pins: 3 (Anode, Cathode, Gate)
- Package Type: TO-220
- Mounting: Through-Hole (THT)
🔹 Key Features:
✔ Precise control of power switching via gate trigger
✔ Suitable for AC load switching and motor control
✔ Durable design with heat sink mount option
✔ Reliable performance for industrial or DIY circuits
✔ Low gate activation requirements
📌 Common Applications:
- Power control and regulation circuits
- AC dimmer and lighting control
- Motor speed control (AC motors)
- Timed switching and triggering systems
- Hobby and industrial automation
🔹 Approximate Weight: 2.5g
