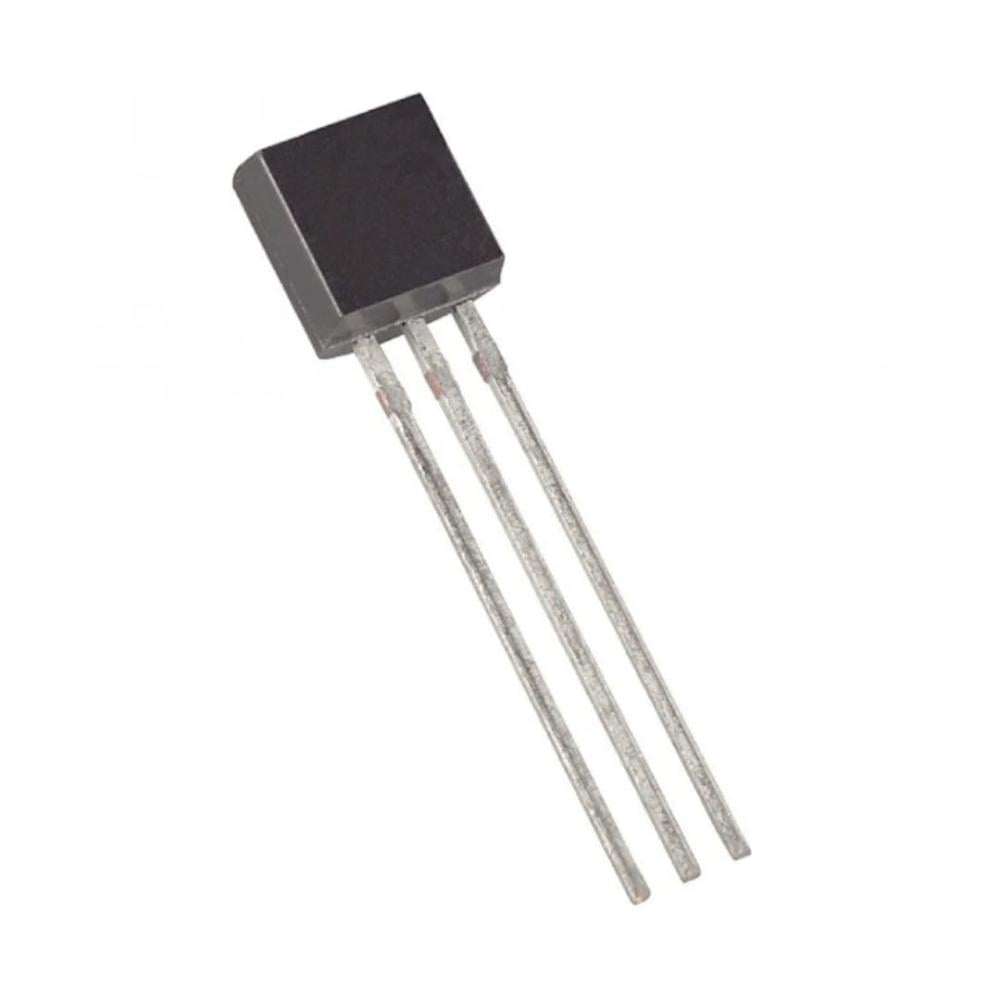

⚡ The BS170 is a compact N-Channel MOSFET used in low-voltage, medium-current switching applications such as PWM control, small load driving, and general digital electronics. It can be directly driven by TTL or CMOS logic signals, making it ideal for use with Arduino, Raspberry Pi, and other development platforms. It's widely used in educational projects and simple switching circuits.
- ✅ Specifications:
- Transistor Type: MOSFET – N-Channel
- Max Drain-Source Voltage (Vds): 60V
- Max Continuous Drain Current (Id): 0.5A
- Gate-Source Voltage (Vgs): ±20V
- On-Resistance (Rds ON): 1.2Ω
- Max Power Dissipation: 830mW
- Package Type: TO-92
- Logic level operation: Yes (5V compatible)
- Operating Temperature: -55 to +150°C
🔹 Key Features:
✔️ Directly controlled by logic-level signals
✔️ Low power consumption
✔️ Easy to integrate in small circuits
✔️ Ideal for low-current switching
✔️ Compatible with Arduino and Raspberry Pi
📌 Common Applications:
- Educational electronics switching
- Driving relays and small lamps
- Low-voltage PWM circuits
- Arduino and digital control circuits
- Simple low-current switching projects
🔸 Product Weight:
Product Weight: 1g
