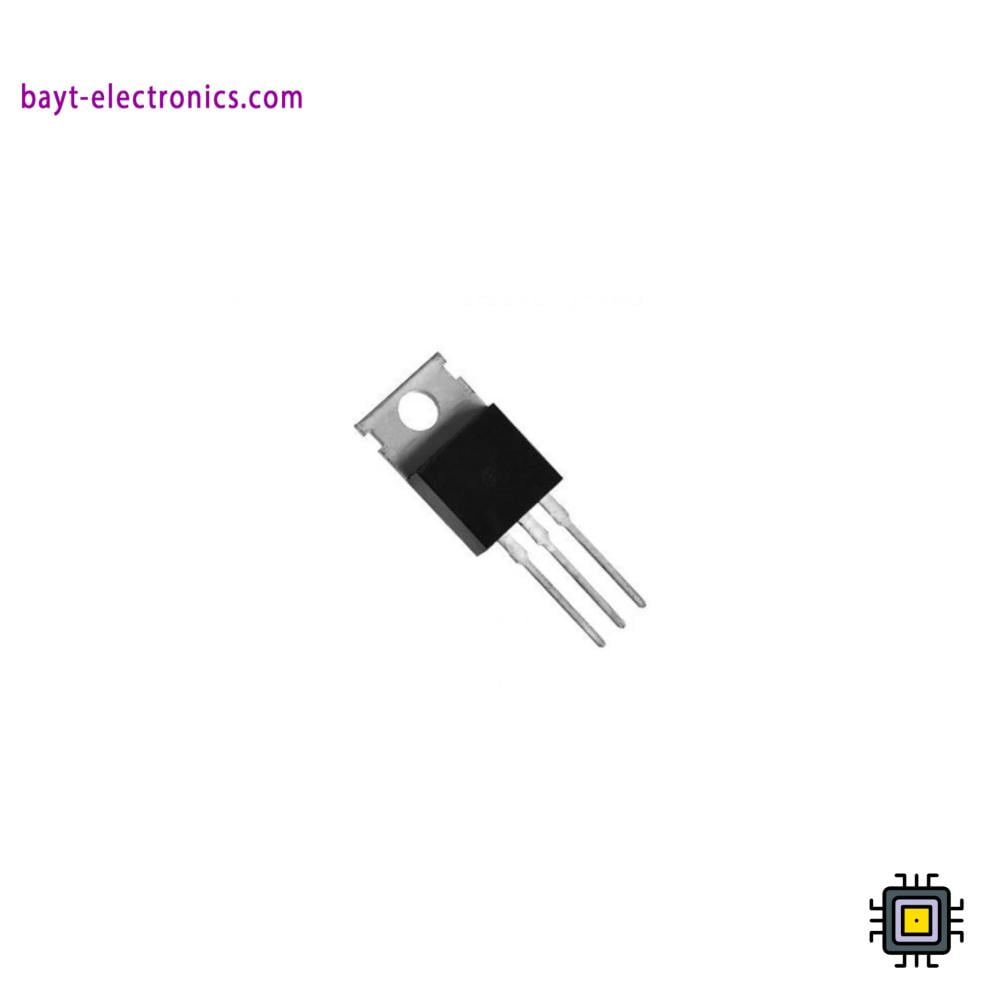

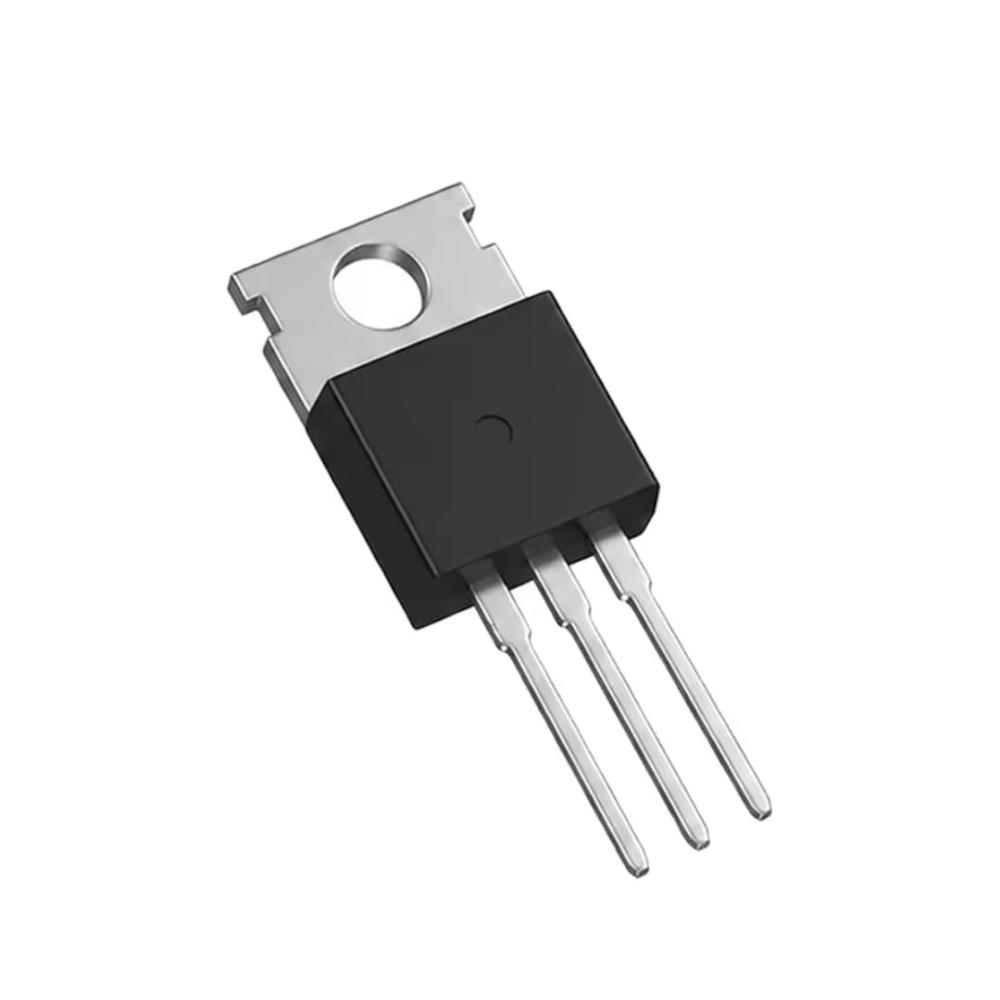

⚡ The 3DD13009A8 is a high-voltage, high-current NPN bipolar junction transistor (BJT) designed for demanding applications such as SMPS power supplies, motor control systems, and industrial-grade circuits. With a collector-emitter voltage rating of up to 700V and a current capacity of 12A, it provides reliable high-speed switching and robust performance under harsh conditions.
- ✅ Specifications:Transistor Type: NPN – BJT
- Max Collector-Emitter Voltage (Vce): 700V
- Max Collector-Base Voltage (Vcb): 700V
- Base-Emitter Voltage (Vbe): 9V
- Max Collector Current (Ic): 12A
- Max Power Dissipation: 80W
- Current Gain (hFE): 8 – 40
- Package Type: TO-220
- Operating Temperature: -55 to +150°C
🔹 Key Features:
✔️ High-voltage and high-current capacity
✔️ Fast switching performance
✔️ Ideal for SMPS and power converter circuits
✔️ Durable and reliable for industrial use
✔️ Easy to mount with TO-220 package
📌 Common Applications:
- Switch Mode Power Supplies (SMPS)
- High-voltage power converters
- Motor control circuits
- High-power lighting systems
- Industrial and heavy-duty electronics projects
🔸 Product Weight:
Product Weight: 2g
