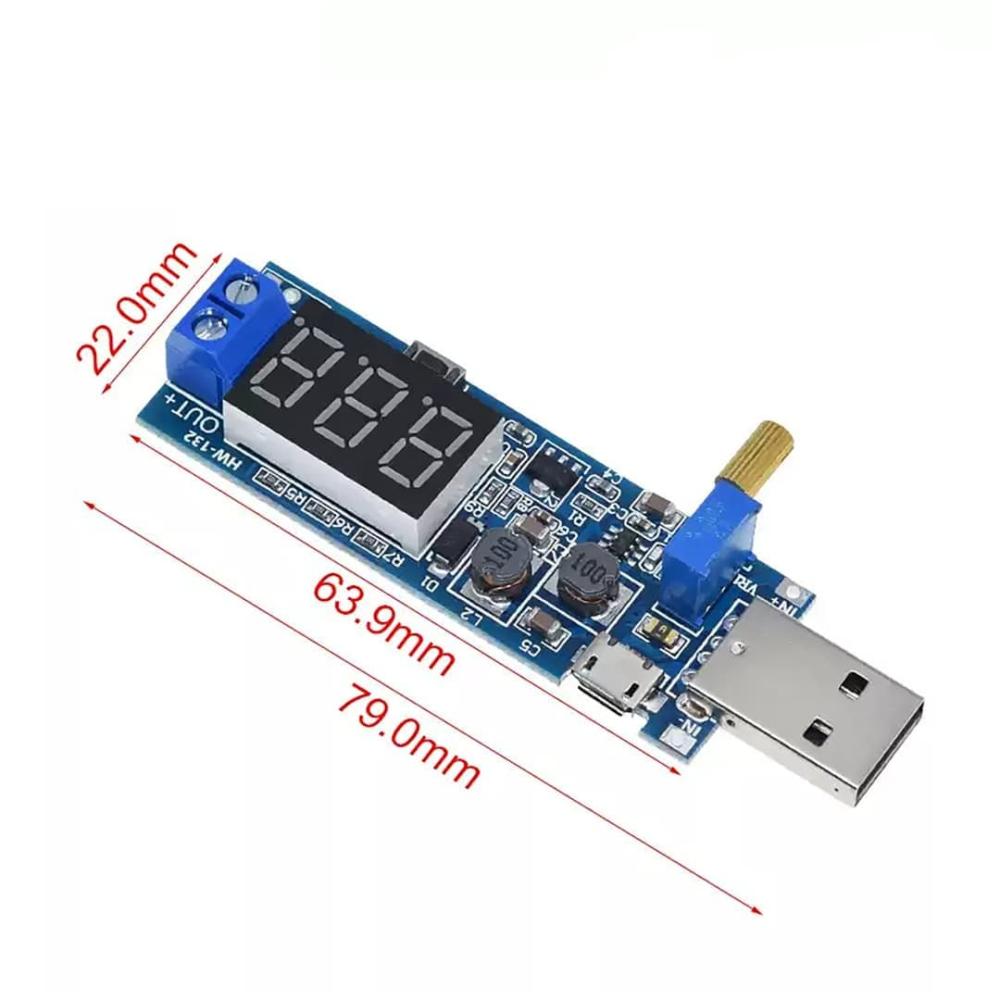

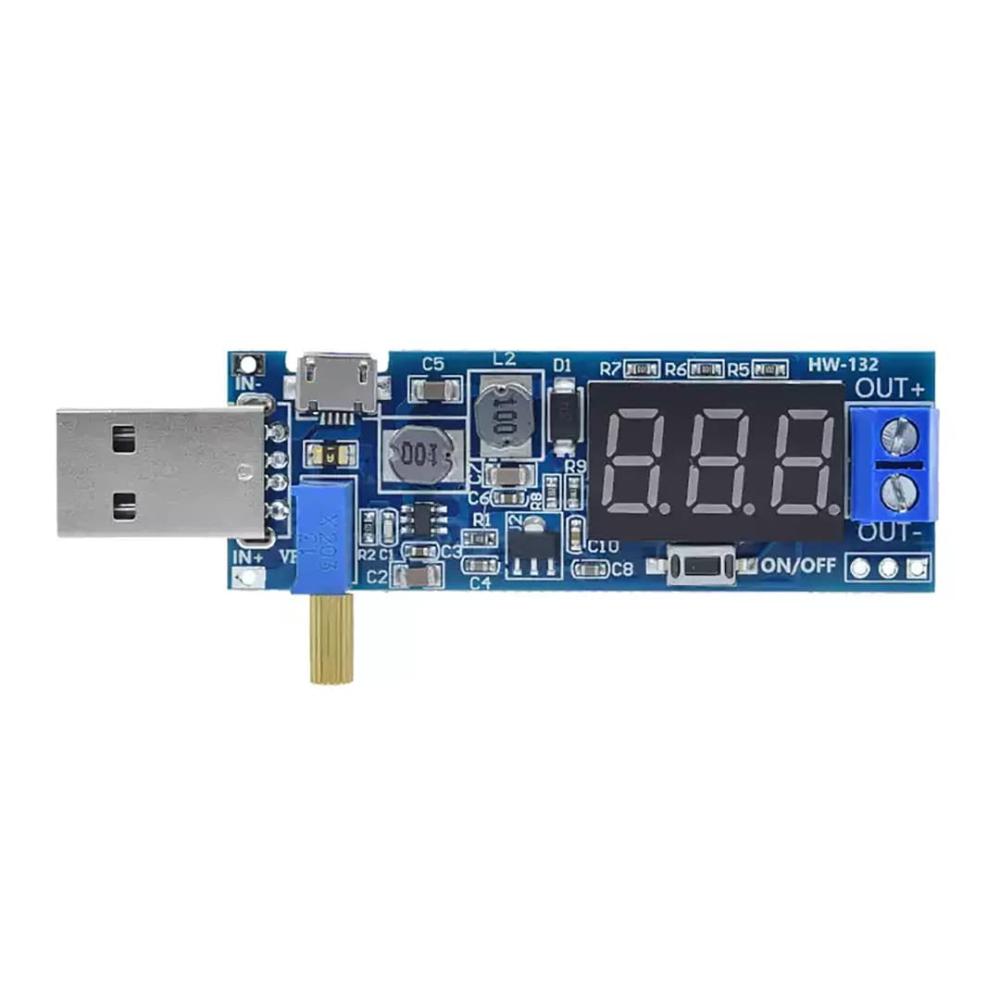

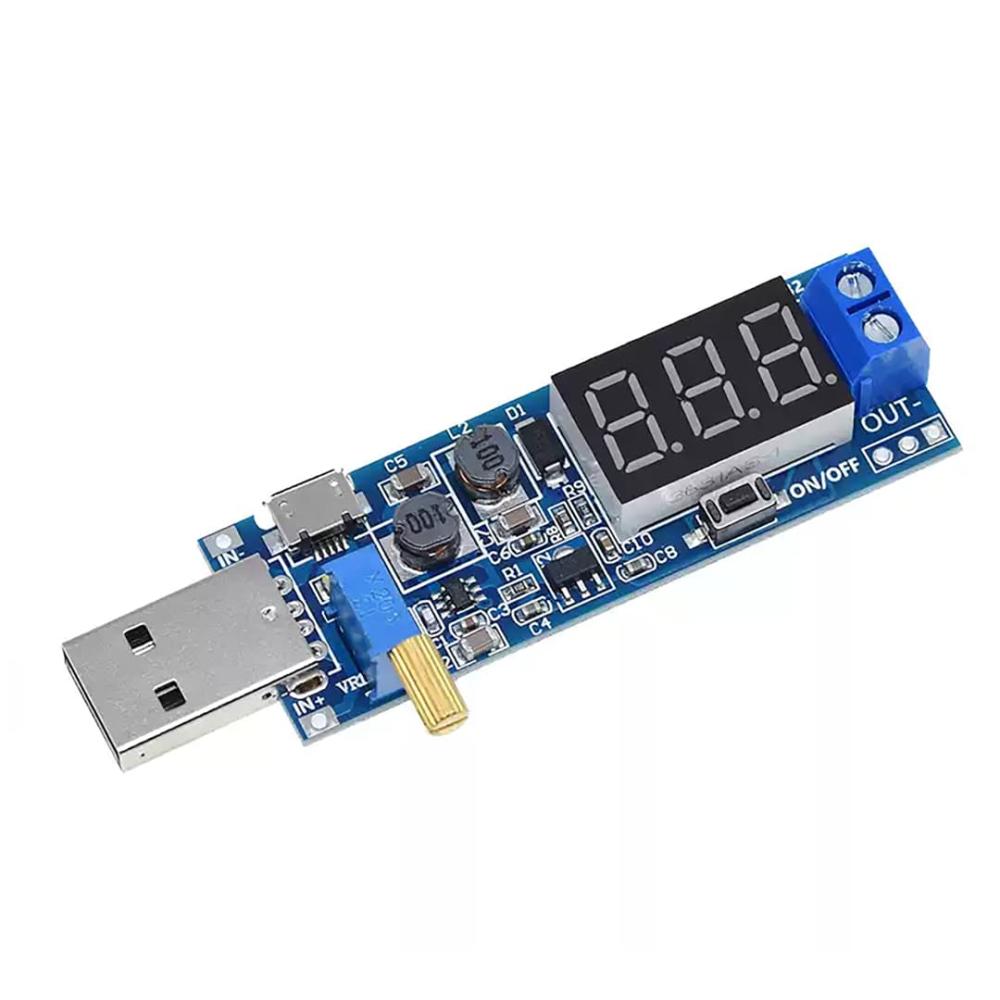

⚡ This is a versatile DC-DC Boost/Buck Converter module equipped with a digital voltage display. It can step up or step down input voltage to provide a stable, adjustable output ranging from 1.2V to 24V. With multiple input options (USB, Micro USB, and solder pads), a precision adjustment potentiometer, and control button for output and display, it is perfect for powering Arduino, battery charging, electronics testing, and custom DIY circuits.
- ✅ Specifications:
- Converter Type:
- Boost/Buck DC-DC Converter
- Input Voltage:
- USB: 5V

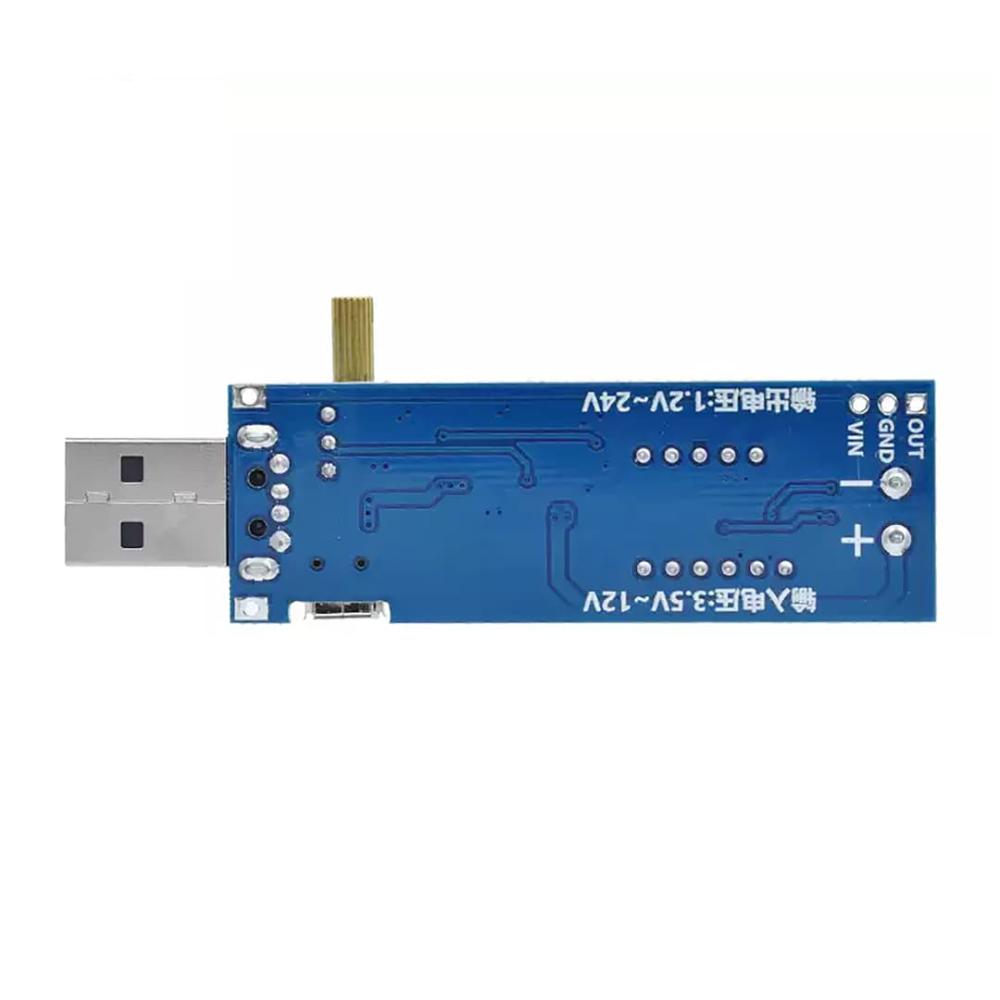

- Pads: 3.5V to 12V
- Output Voltage: Adjustable from 1.2V to 24V
- Max Output Current: Up to 2A (with cooling)
- Efficiency: Up to 92%
- Display: 3-digit digital voltage display
- Input Options: USB, Micro USB, and soldering pads
- Voltage Adjustment: Onboard potentiometer (clockwise increases output)
- Control Button:
- Short press: Turn output ON/OFF
- Long press: Turn display ON/OFF
🔹 Key Features:
✔️ Boost or buck voltage flexibly
✔️ Built-in display for real-time output monitoring
✔️ USB and Micro USB input for ease of use
✔️ Fully adjustable with potentiometer and button
✔️ Great for portable power and educational projects
📌 Common Applications:
- Powering circuits from USB sources
- Charging lithium batteries or small devices
- Voltage regulation in lab experiments
- Arduino and Raspberry Pi power supply
- Multi-voltage conversion for testing and prototyping
🔸 Product Weight: 8g
