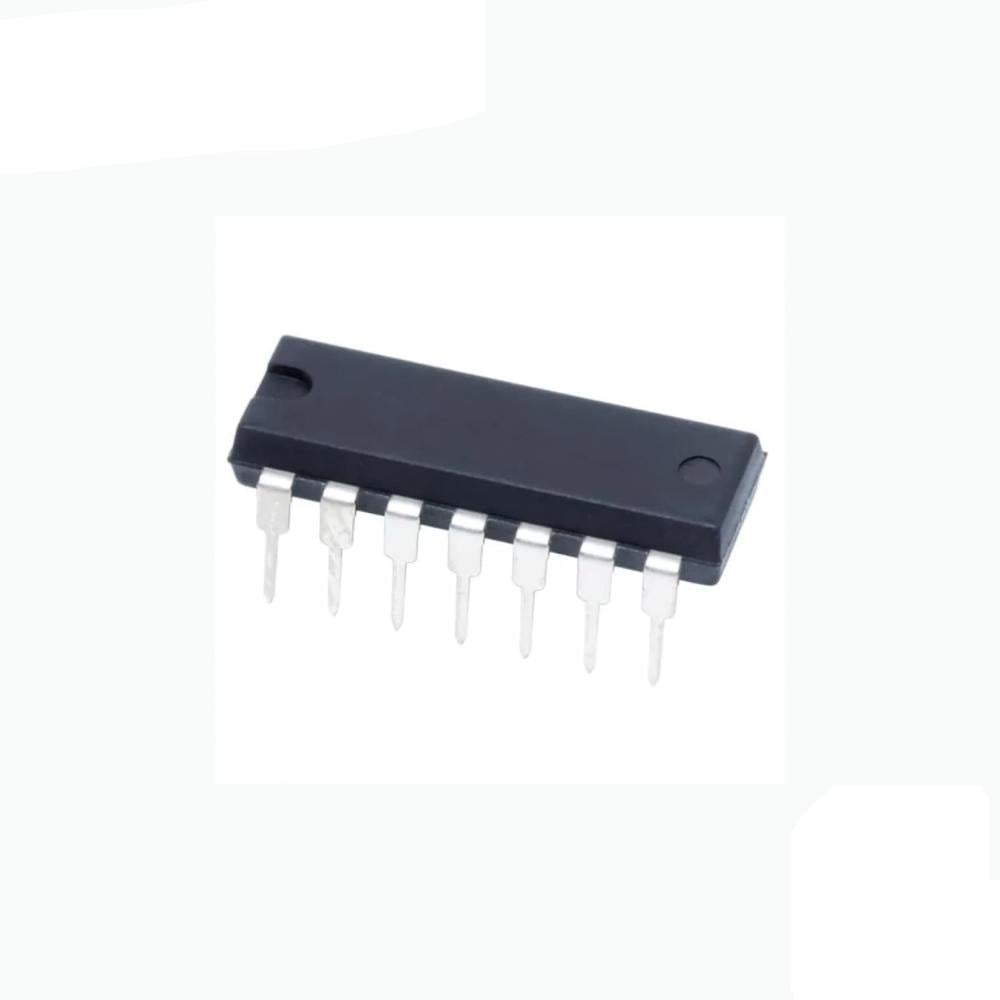

🔌 SN74LS266N XNOR Gate - 74266 Quad Logic IC with Schmitt Trigger Inputs 🔌
The SN74LS266N (74266) is a quad XNOR gate IC equipped with Schmitt trigger inputs, making it ideal for digital circuits that require high noise resistance and stable response in imperfect conditions. These gates output a HIGH signal (1) only when the inputs are equal (either both 0 or both 1), making them essential for comparison, counting, and digital signal control applications.
✅ Technical Specifications:
- Model: SN74LS266N (74266)
- Number of Gates: 4 Independent XNOR Gates
- Number of Inputs per Gate: 2 Inputs
- Number of Outputs per Gate: 1 Output
- Input Type: Schmitt Trigger (for improved noise immunity and stability)
- Operating Voltage Range: 4.75V - 5.25V
- Power Consumption: Low-power and efficient operation
- Propagation Delay: Low for high-speed operation
- Operating Temperature Range: 0°C to 70°C
🔹 Key Features:
✔ Contains 4 independent XNOR gates, providing flexibility in design.
✔ High noise immunity due to Schmitt trigger inputs.
✔ High accuracy in comparison and digital data processing.
✔ Low-voltage operation, ideal for embedded systems.
✔ Compatible with Arduino, Raspberry Pi, and other embedded systems.
📌 Common Applications:
- Advanced logic circuit design.
- Smart control and automation systems.
- Digital data processing and comparison applications.
- Robotics and embedded system projects.
- Computational and data analysis applications in digital circuits.
🔹 Approximate Weight: 10g
