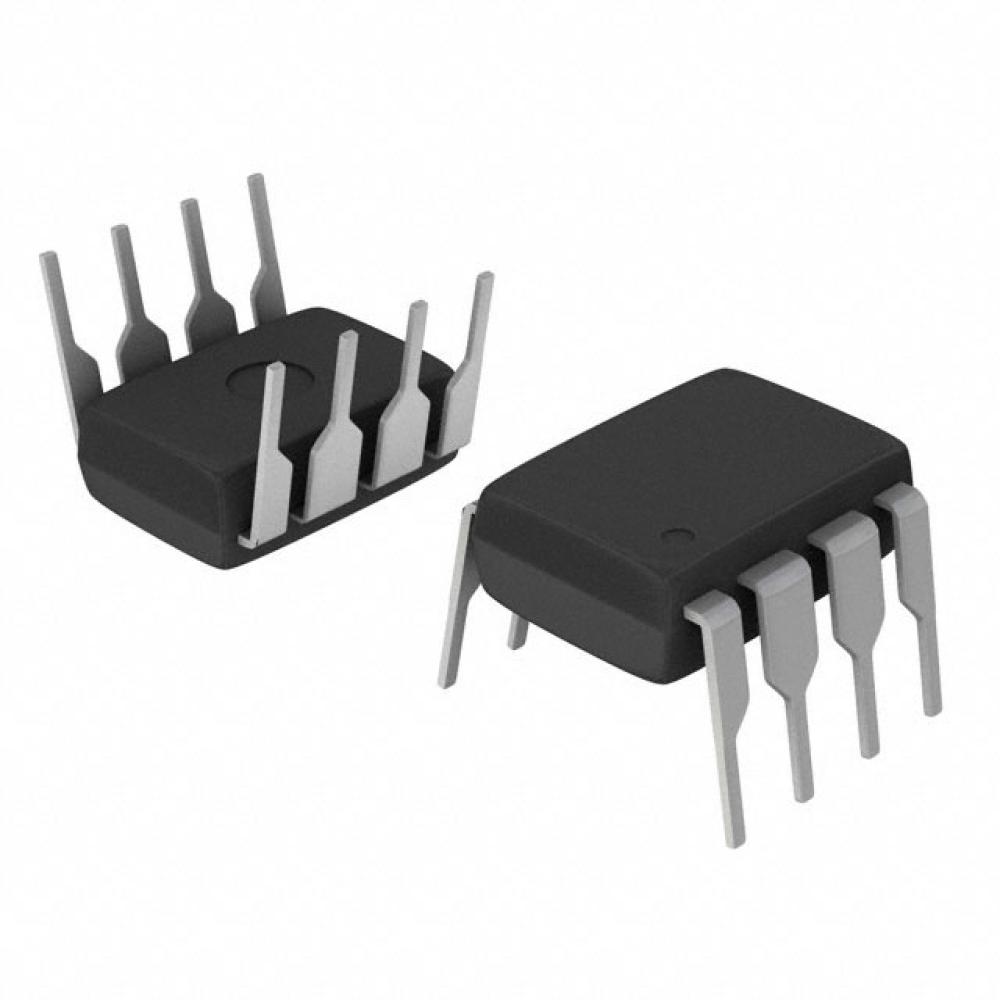

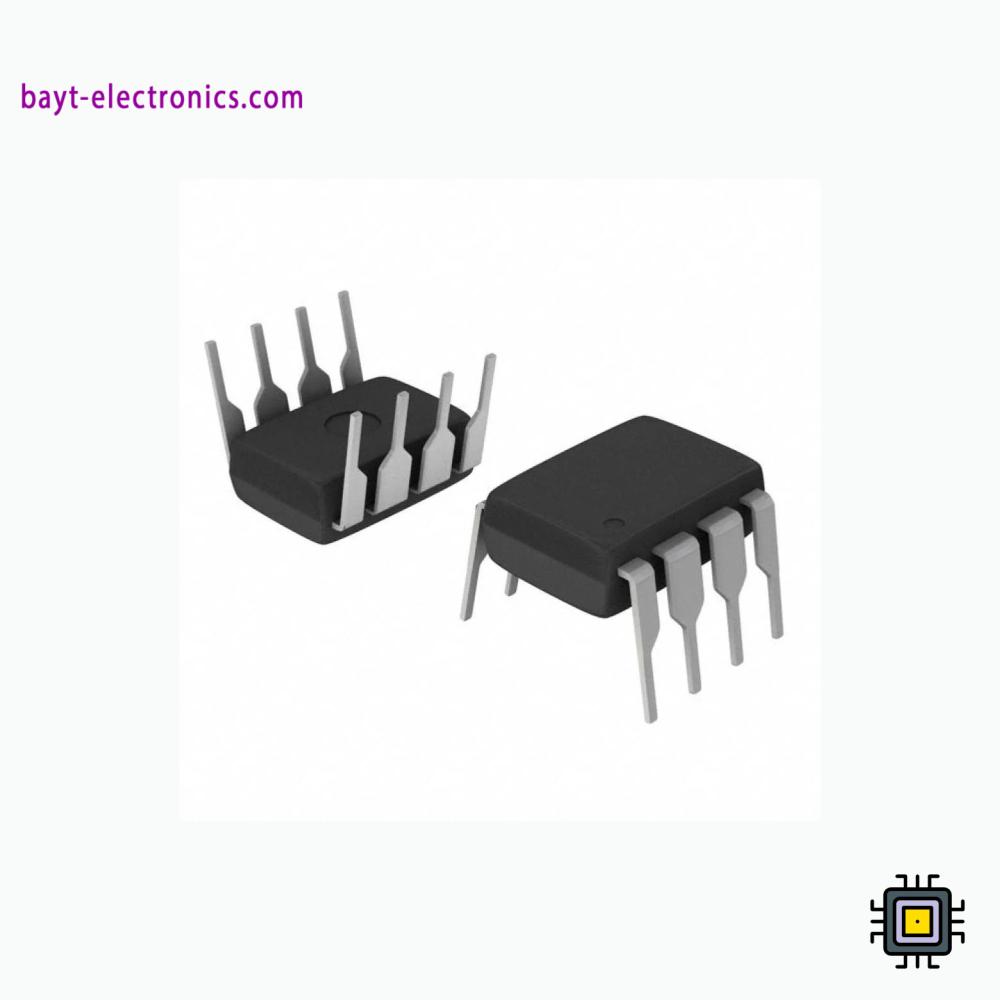

🎚️ UA741CN - General Purpose Operational Amplifier IC 🎚️
The UA741CN is a classic and widely-used operational amplifier (Op-Amp) designed for high performance and stability in analog signal applications. It features low input bias current, high open-loop gain, and built-in overload protection, making it ideal for various general-purpose analog designs.
✅ Technical Specifications:
- Dual Supply Voltage: ±3V to ±18V
- Single Supply Voltage: 7V to 36V
- Output Current: ±20 mA max
- Open-loop Voltage Gain: >100,000
- Slew Rate: 0.5 V/µs typical
- Input Impedance: >2 MΩ
- Operating Temperature: 0°C to 70°C
- Package: DIP-8
🔹 Features:
- Thermally stable and reliable for precision analog tasks
- Built-in protection against overload and reverse polarity
- Low power consumption, suitable for battery-powered systems
- Classic pin configuration compatible with most Op-Amp circuits
- Ideal for low to mid-frequency analog signal applications
📌 Common Applications:
- Analog signal amplification
- Signal comparators and measurement circuits
- Active filter circuits (low-pass, high-pass)
- Signal conditioning for ADC input
- Audio and voltage control systems
🔹 Approximate Weight: 10 grams.
