Si4703 - SparkFun FM Tuner Module

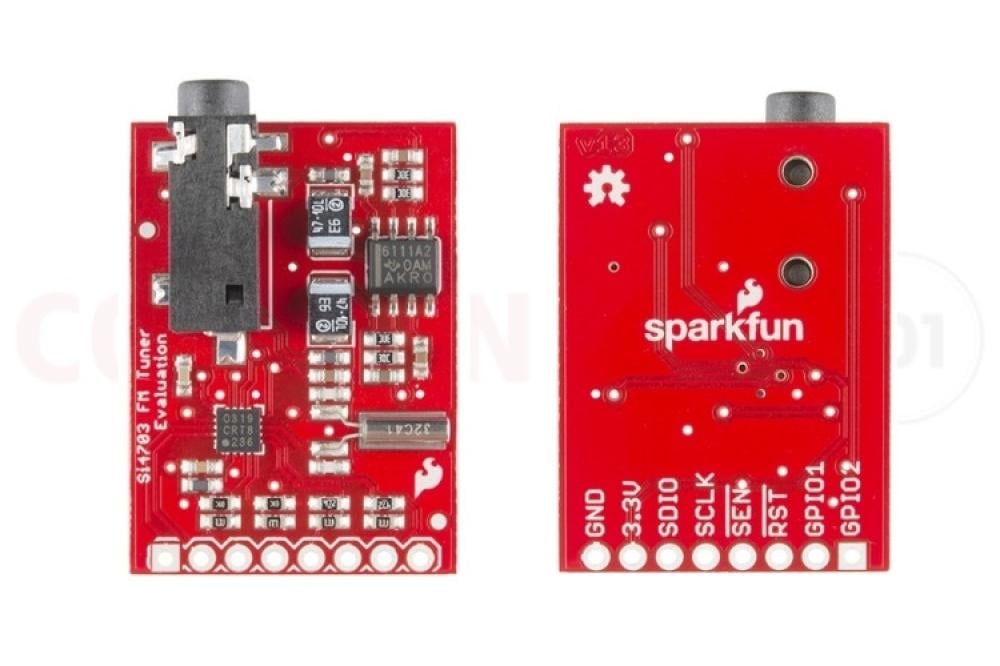

The Si4703 FM tuner module Evaluation Board is a highly integrated and precision FM radio receiver module designed to deliver crystal-clear audio and robust signal reception. Built around the Silicon Labs Si4703 IC. This module supports worldwide FM bands ranging from 76 MHz to 108 MHz, offering excellent sensitivity and selectivity even in low signal environments. With features like automatic seek, tune functions, programmable volume control, and built-in RDS (Radio Data System) support for receiving station names and broadcast text, the Si4703 stands out as a powerful and compact radio solution.
What sets the Si4703 module apart is its comprehensive feature set, including automatic seek and tune functions, programmable volume control, and built-in RDS (Radio Data System) support for displaying station names and broadcast text. Using the I²C interface, the module can be easily integrated with microcontrollers like Arduino, ESP32, Raspberry Pi, and other embedded platforms. Its low power consumption and small form factor make it ideal for applications such as portable FM receivers, alarm clocks, home audio systems, educational radio projects, and DIY electronics. Whether you're building a custom radio receiver, experimenting with wireless communication, or designing an audio-based IoT project, the Si4703 FM tuner Evaluation Board provides a reliable, feature-rich platform for high-quality FM tuning and signal processing.
Understanding the Si4703 FM Tuner Architecture

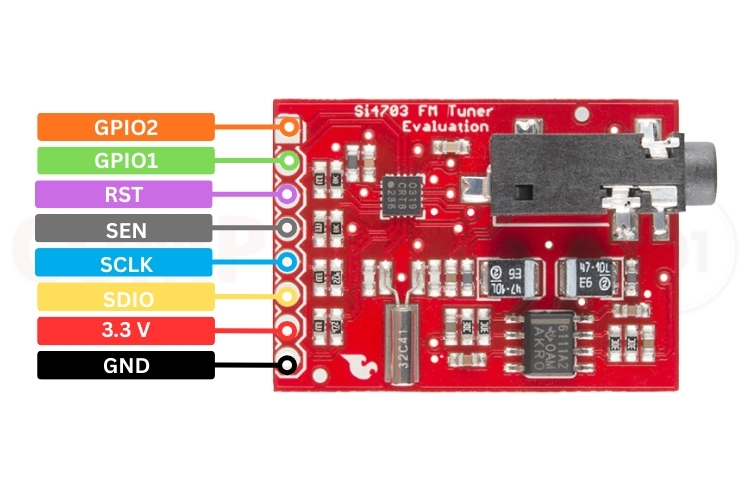

The Si4703 FM Tuner module pin layout is designed for easy integration with microcontrollers using the I²C interface. Each pin serves a specific function required for power, communication, control, and optional status signalling. The following table provides a clear overview of all available pins and their roles for seamless connection and operation. Understanding the Si4703 pinout is essential for successful integration.
| PIN | FUNCTION | DESCRIPTION |
| GND | Power | Connected to the Ground |
| VCC | Power | 3.3v Supply |
| SDIO / SDA | I²C Data | I²C data line. Connect to MCU SDA. |
| SCLK / SCL | I²C Data | I²C data line. Connect to MCU SCL. |
| SEN | Control / Enable | Module enable / power-sense pin on some breakouts. Typically tied HIGH (3.3 V) to enable. |
| RST / RESET | Input (active LOW) | Hardware reset. Pull HIGH (3.3 V) for normal operation; drive LOW briefly to reset the Si4703. |
| GPIO1 | Digital I/O / Status | General purpose — often used for interrupts, STC (seek/tune complete), or RDS ready. Can be read by the MCU. |
| GPIO2 | Digital I/O / Status | Another general-purpose pin; sometimes used as STC, RDS or other status output. |
Technical Specifications and Features of the Si4703 FM Tuner
The Si4703 datasheet from Silicon Labs provides comprehensive technical specifications.
- FM frequency range: 76–108 MHz
- Digital low-IF FM receiver
- RDS/RBDS support
- I²C (2-wire) control interface
- Auto seek and tune functions
- Programmable volume control
- Integrated oscillator
- Low power consumption
- GPIO1/GPIO2 configurable pins
- 3.3V operating voltage
- Compact breakout module design
| FeatureSpecification | |
| FM Frequency Range | 76–108 MHz (supports worldwide FM bands including 87.5-108 MHz Europe/US and 76-90 MHz Japan) |
| Receiver Architecture | Digital low-IF FM receiver with integrated DSP |
| RDS/RBDS Support | Full RDS decoder for station ID, program service name, radio text, and time data |
| Control Interface | I²C (Two-Wire Interface) with 7-bit addressing |
| Seek Function | Automatic seek up/down with programmable RSSI threshold and SNR settings |
| Volume Control | 16-level digital volume control (0-15) with software mute capability |
| Clock Source | Integrated 32.768 kHz crystal oscillator (no external components required) |
| Power Consumption | Typical 50mA during reception, <10µA in powerdown mode |
| Operating Voltage | 3.3V (±10% tolerance: 2.7V-3.6V absolute maximum) |
| Sensitivity | -105 dBm typical for 30 dB SNR mono reception |
| Module Dimensions | Compact breakout design (typically 20mm x 20mm for SparkFun variant) |
Si4703 Module Alternatives: Comparative Analysis
When evaluating Si4703 module alternatives, consider these comparable FM tuner ICs, each with distinct advantages for different application requirements:
- Si4702 – Similar FM receiver without RDS support
- Si4705 – Enhanced FM tuner with improved RDS performance
- RDA5807M / RDA5807FP – Low-cost FM tuner ICs with RDS functionality
- TEA5767 – Widely used FM radio module with I²C control
- Si4721 / Si4740 Series – Advanced broadcast radio receivers from Silicon Labs
| Alternative ModuleKey DifferencesBest Use Case | ||
| Si4702 | Same family as Si4703 but without RDS/RBDS support | Cost-sensitive applications not requiring broadcast data |
| Si4705 | Enhanced FM tuner with improved RDS performance and lower power consumption | Professional audio equipment and battery-powered devices |
| RDA5807M / RDA5807FP | Budget-friendly FM tuner with basic RDS, lower cost but reduced sensitivity | Price-critical consumer electronics and educational projects |
| TEA5767 | Older but widely documented FM radio module with I²C, no RDS support | Simple FM radio projects with extensive community library support |
| Si4721 / Si4740 Series | Advanced broadcast receivers supporting AM/FM/SW with superior DSP | Multi-band radio receivers and advanced automotive systems |
