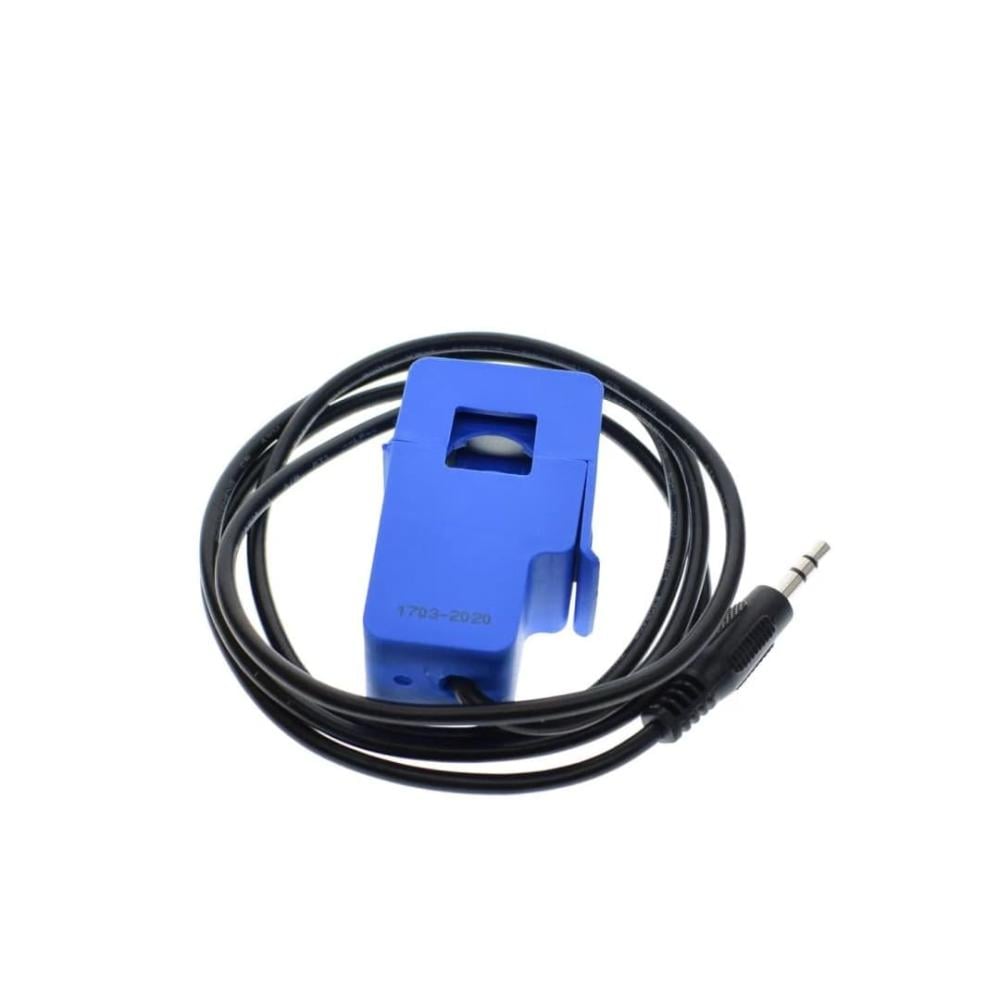

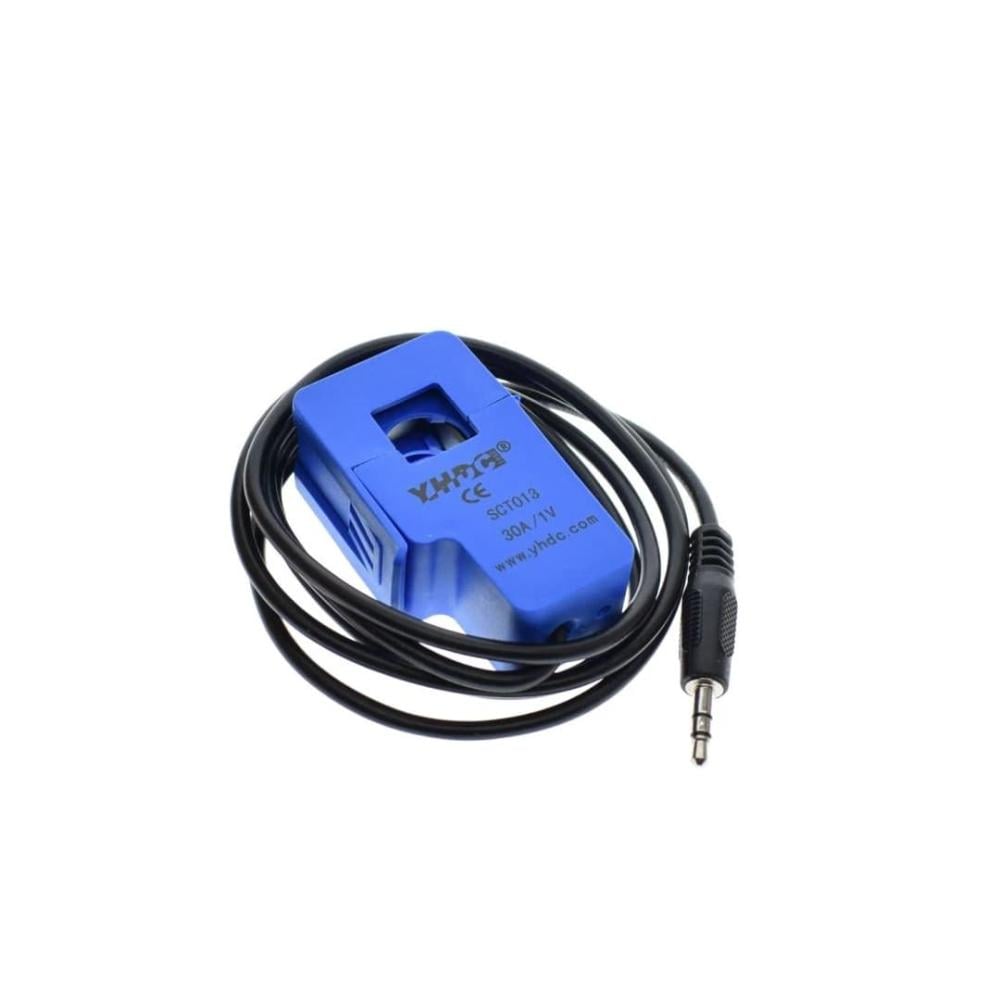

30A Current Sensor - SCT-013-030

⚡ 30A Current Sensor - SCT-013-030 ⚡

The SCT-013-030 is a non-invasive current transformer designed to measure AC currents up to 30A with high accuracy. It connects safely to the electrical line without the need to cut or modify the wires, making it ideal for smart energy monitoring systems and engineering projects.

✅ Specifications:

• Sensor Type: Current Transformer (CT).
• Measurement Range: Up to 30A AC.
• Output Signal: Analog voltage signal.
• Conversion Ratio: 1V output at 30A input.
• Output Connector: 3.5mm audio jack.

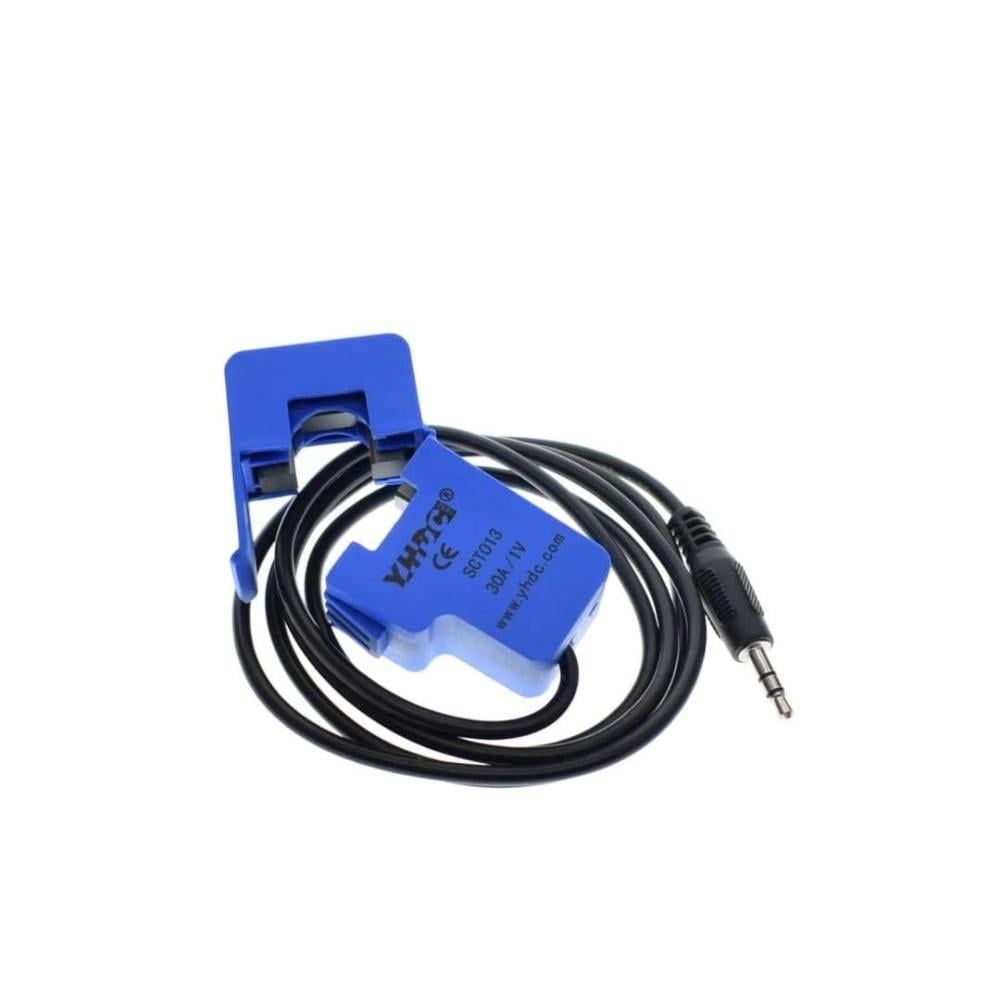

• Clip-on design for easy wire mounting.
• Electrical isolation between the main circuit and measuring side.

🔹 Key Features:

✔ No need to cut or open the circuit for installation.

✔ Safe and stable current measurement.

✔ Suitable for power monitoring and energy management systems.

✔ Easy integration with microcontrollers like Arduino and ESP32.

🔹 Approximate Weight: About 100 grams

📌 Common Applications:

• Monitoring household or office electricity consumption.
• Smart energy management and load monitoring projects.
• Current control and protection systems.
• Analyzing and tracking device power usage.
• Arduino and IoT-based monitoring projects.
