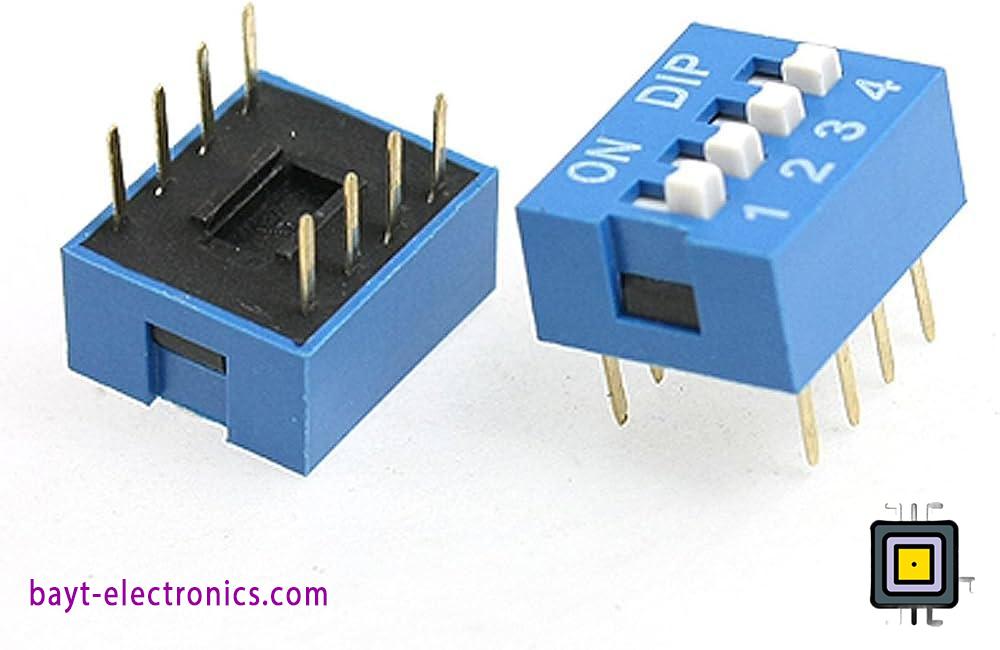

🔧 A DIP switch is a compact manual switch array used for setting configurations directly on a circuit board. It's commonly found in embedded systems and microcontroller projects to toggle features or assign device addresses. Available in 4, 6, or 8-switch versions, it offers reliable and reusable manual control without requiring software modification.
- ✅ Specifications:
- Type: DIP Switch
- Positions: 4 / 6 / 8 switches available
- Switch Type: SPST (Single Pole Single Throw)
- Operation Mode: ON / OFF per switch
- Mounting: Through-hole (DIP spacing)
- Pin Pitch: 2.54 mm
🔹 Key Features:
✔️ Manual configuration without reprogramming
✔️ Ideal for I2C, SPI, or UART address selection
✔️ Easy to install and use
✔️ Available in multiple pin counts
✔️ Widely used in embedded and digital systems
📌 Common Applications:
- Setting device addresses (I2C/SPI)
- Enabling/disabling circuit features
- Configuring microcontroller logic
- Hardware-level testing and control
- Educational and prototyping electronics
🔸 Product Weight:
- DIP 4 pin: 1g
- DIP 6 pin: 1.3g
- DIP 8 pin: 1.6g
