📡 E18-D80NK Adjustable Infrared Sensor 📡

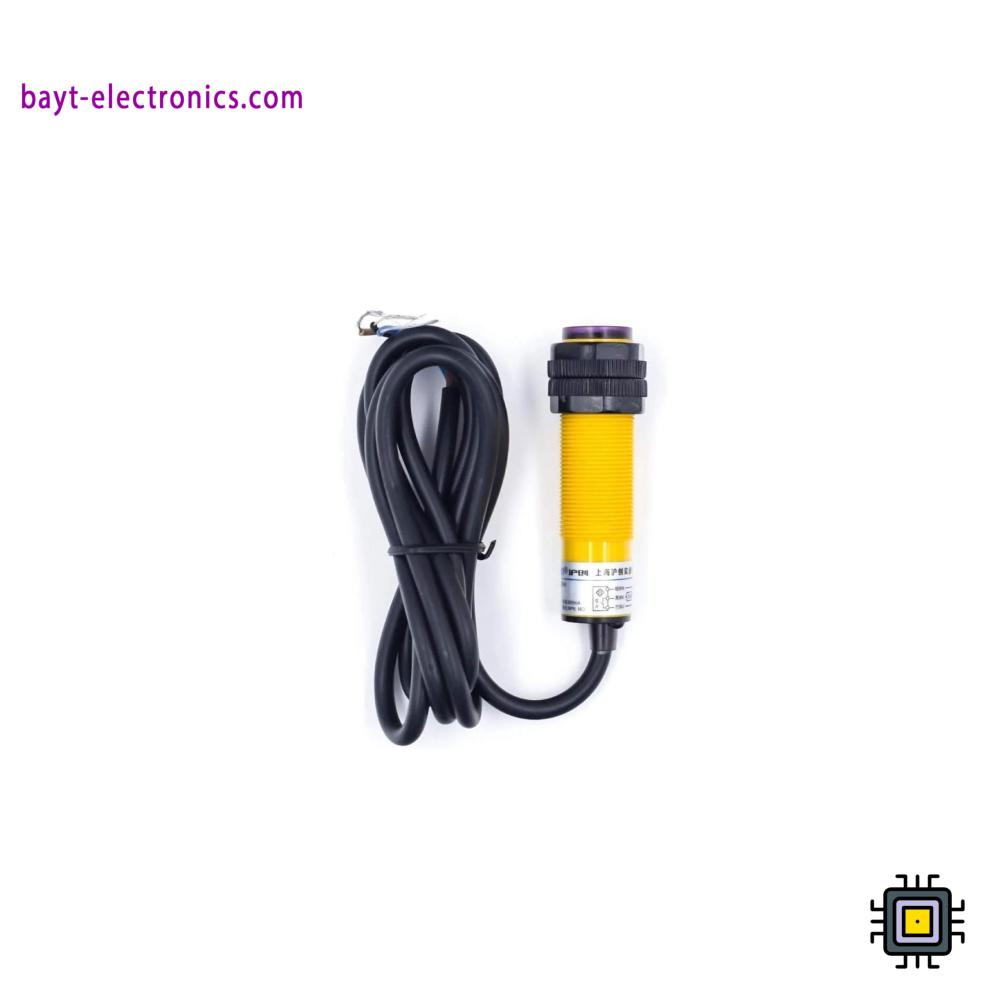

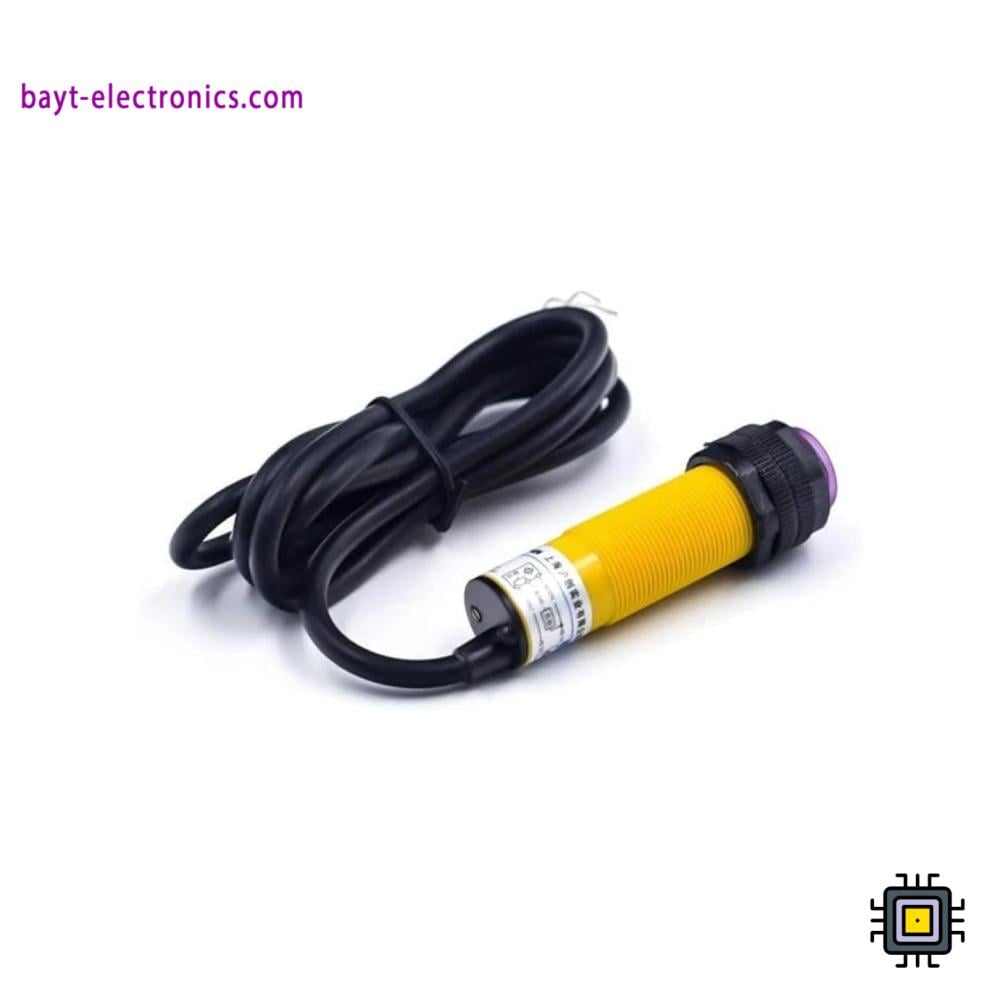

The E18-D80NK is a 5V DC infrared proximity sensor with an adjustable detection range of 3 to 80cm, designed for object detection and automation tasks. It features a 70mm cylindrical body with a built-in adjustment screw for sensitivity control, making it widely used in robotics, counting systems, production lines, and automation projects.
✅ Technical Specifications:
- Model: E18-D80NK.
- Type: Infrared proximity sensor.
- Operating Voltage: 5V DC.
- Detection Range: 3 – 80cm (adjustable).
- Output Type: Digital (ON/OFF).
- Sensor Size: 70mm length × 18mm diameter.
- Housing Material: ABS plastic.
- Power Consumption: Low.
- Wiring: 3-pin (VCC – GND – OUT).
- Approximate Weight: 25 g.
🔹 Key Features:
✔ Adjustable detection range with easy screw control.
✔ Compact cylindrical design (70mm length).
✔ Low power consumption.
✔ Fast and reliable response.
✔ Ideal for industrial and robotic applications.
📌 Common Applications:
- Obstacle detection in robotics.
- Production line counters and sensors.
- Automatic lighting or door control.
- Arduino and Raspberry Pi projects.
- Smart home and industrial automation.
