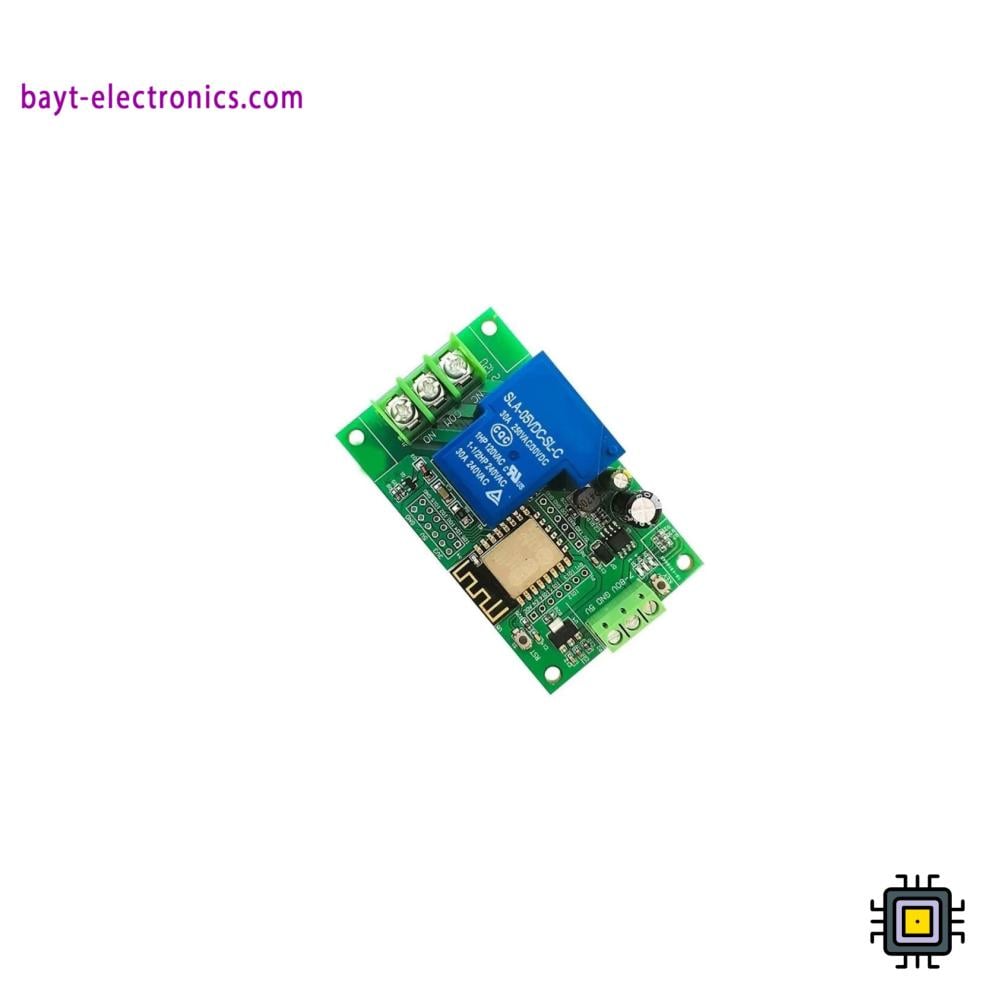

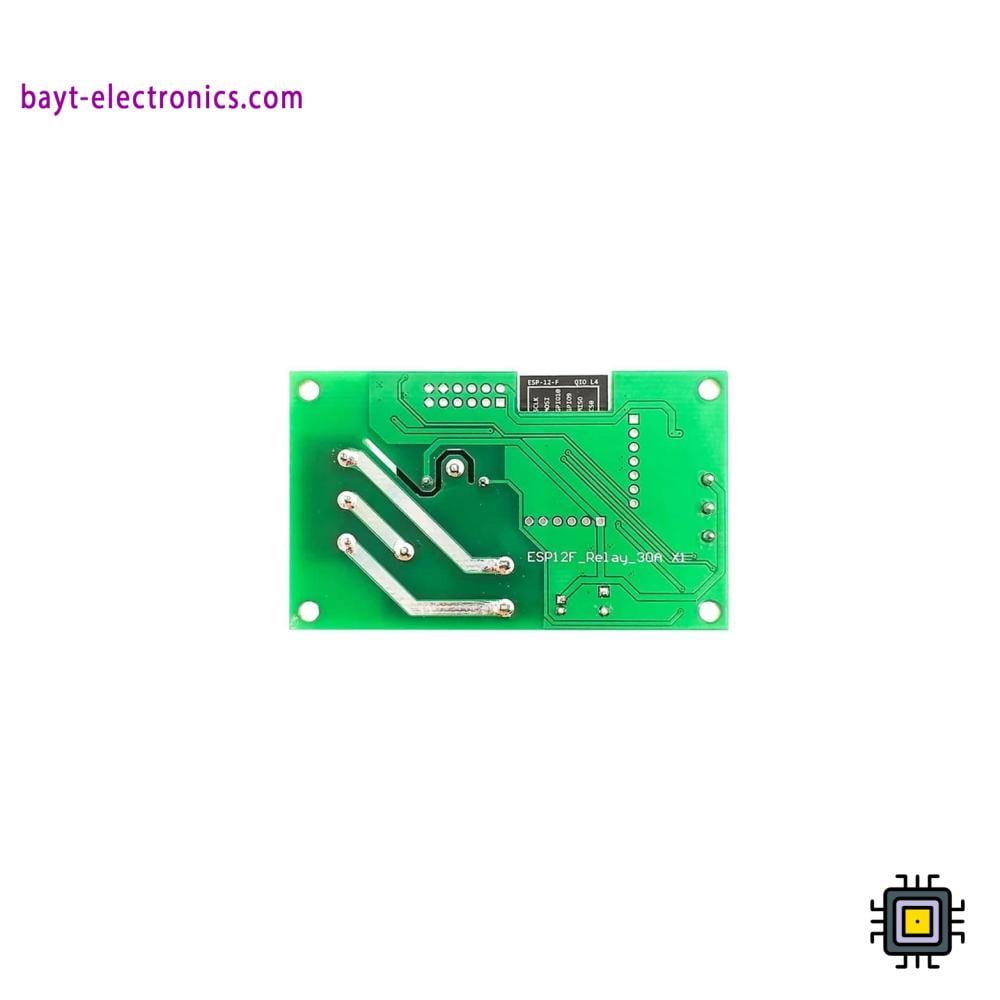

📡 ESP8266 ESP-12F WiFi Relay Module – Single Channel 30A 📡
This smart relay module is powered by the ESP8266 ESP-12F WiFi chip and features a single-channel relay supporting loads up to 30A. It accepts DC 7–80V or 5V input, making it versatile for different power setups. Easily control electrical devices remotely via WiFi using smartphones or IoT platforms such as Blynk or Home Assistant. Perfect for smart home and automation projects.
✅ Technical Specifications:
- Controller: ESP8266 ESP-12F (2.4GHz WiFi).
- Channels: 1 Relay.
- Relay Rating: up to 30A @ 250VAC / 30VDC.
- Input Voltage: 5V DC or 7–80V DC.
- Communication: WiFi (IEEE 802.11 b/g/n).
- Operating Modes: AP / STA / AP+STA.
- Programming: Arduino IDE, Lua, AT Commands.
- Dimensions: ~55 × 45 × 20 mm.
- Approximate Weight: 45 g.
🔹 Key Features:
✔ High-power relay supporting up to 30A.
✔ Integrated ESP8266 ESP-12F WiFi control.
✔ Supports STA, AP, and AP+STA modes.
✔ Compatible with IoT platforms (Blynk, Home Assistant).
✔ Great for both home and industrial automation.
📌 Common Applications:
- Remote control of electrical appliances (fans, lamps, pumps).
- Smart home automation systems.
- IoT projects with ESP8266.
- Small industrial load control.
- Automation for farms and workshops.
