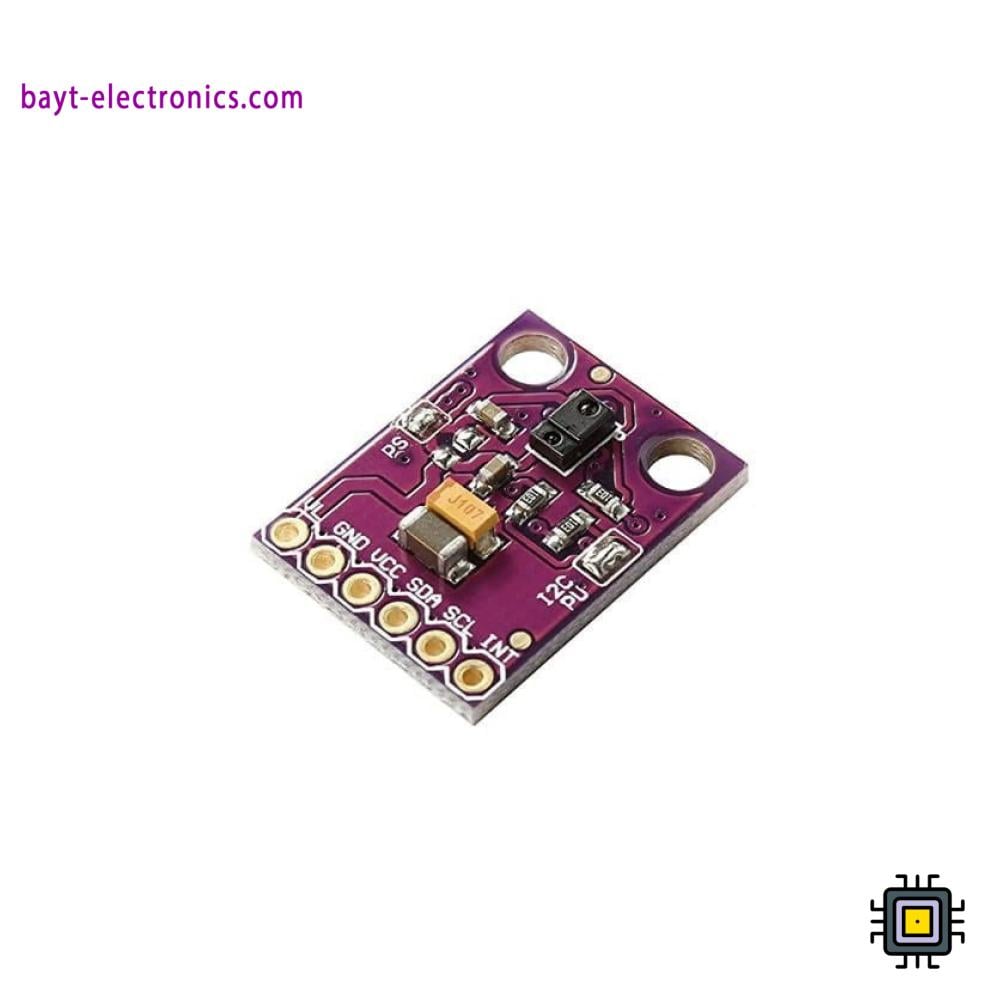

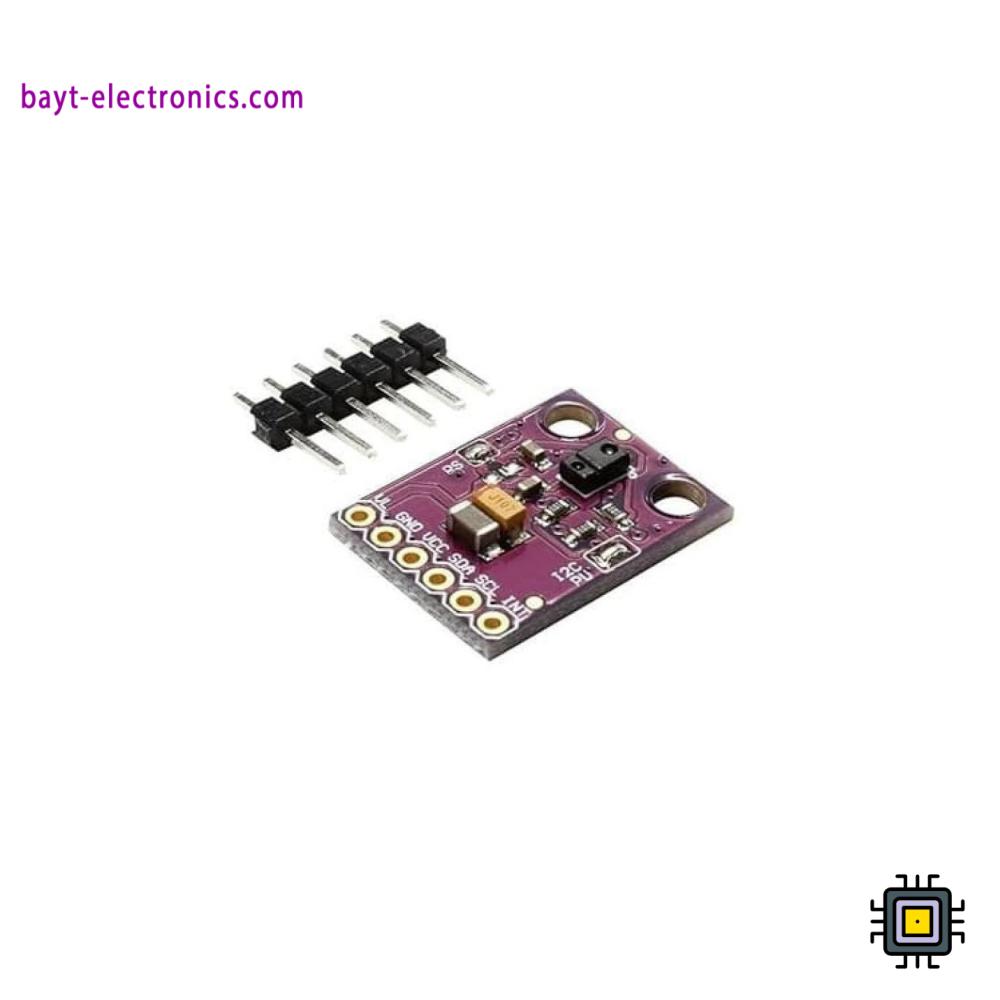

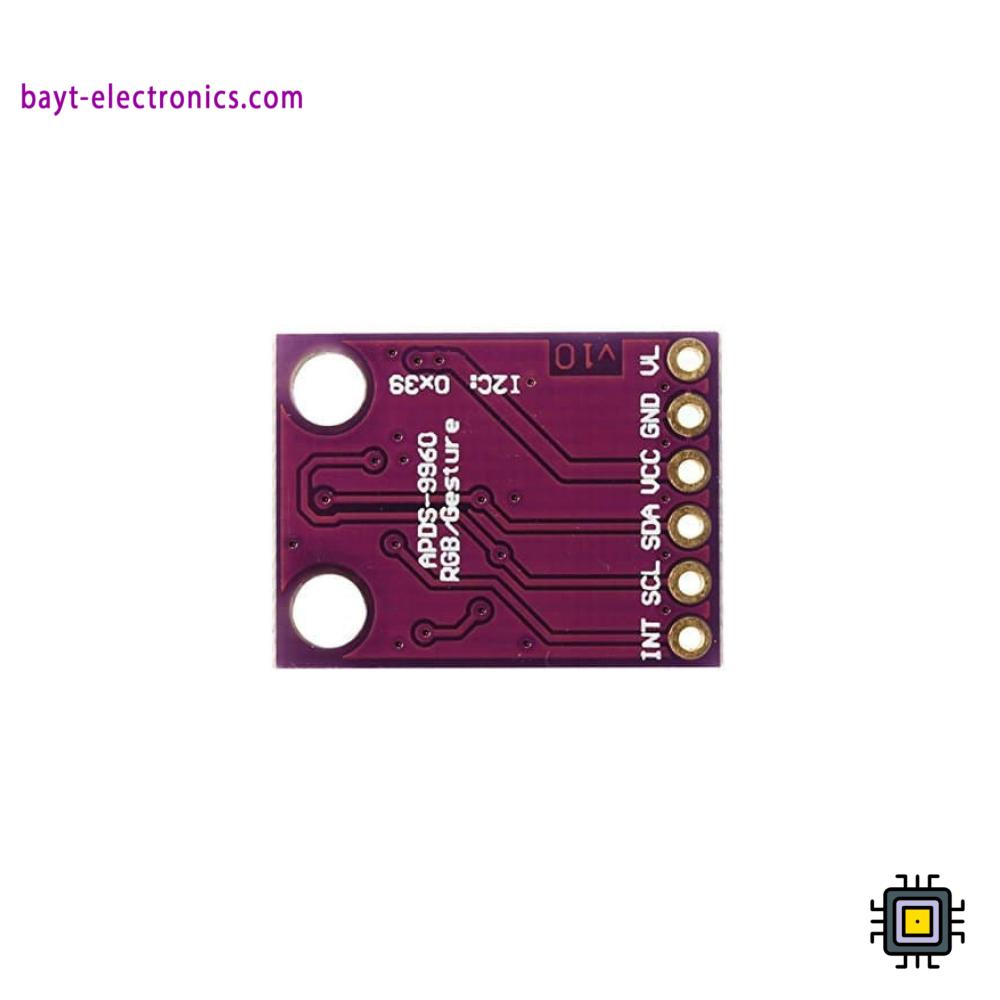

🤖 GY-9960-3.3 APDS-9960 RGB & Infrared Gesture Sensor Module 🤖
The GY-9960-3.3 module uses the APDS-9960 sensor by Avago, providing gesture recognition, RGB color sensing, ambient light detection, and IR proximity sensing in one compact device.
It’s widely used in gesture-controlled interfaces, smart lighting systems, and interactive robotics, and connects easily to microcontrollers via I2C communication.
✅ Technical Specifications:
- Model: GY-9960-3.3
- Chipset: APDS-9960 (Avago)
- Operating Voltage: 3.3V DC
- Interface: I2C (SCL, SDA)
- Functions:
- • Gesture Recognition (Up, Down, Left, Right)
- • RGB Color Detection
- • Ambient Light Sensing
- • IR Proximity Detection
- Detection Angle: ±35°
- Operating Temperature: -25°C to +70°C
- Module Size: 20 × 15 mm
- Weight: 5g
🔹 Key Features:
✔ 4-in-1 multifunctional sensor (gesture, light, color, IR).
✔ Accurate detection with low power consumption.
✔ Compatible with Arduino, Raspberry Pi, and ESP boards.
✔ Ideal for interactive robotics and smart devices.
✔ Compact and easy to integrate.
📌 Common Applications:
- Gesture-controlled devices (touchless interaction).
- Smart lighting and automation systems.
- Educational robotics and experiments.
- Color measurement and ambient sensing.
- IoT and AI-based control systems.
