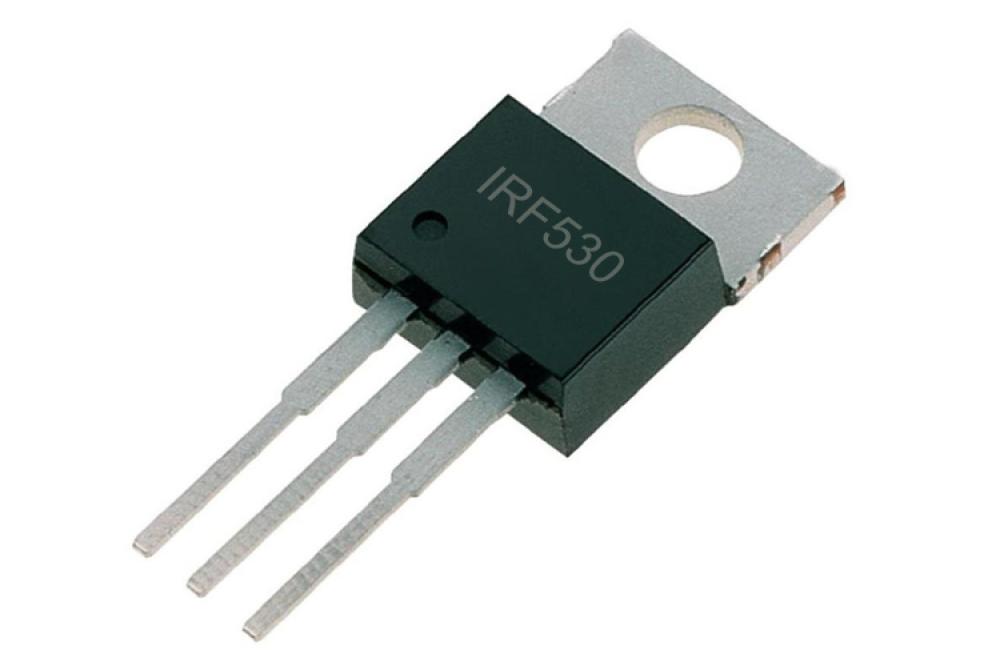

IRF530N Power MOSFET – N-Channel

⚡ IRF530N – High-Power N-Channel MOSFET

The IRF530N is a high-performance N-channel MOSFET designed for power switching, motor control, PWM regulation, and high-efficiency converters.

It supports high current, high voltage, and fast switching speeds, making it ideal for demanding electronic and industrial applications.

✅ Specifications:

• Type: N-Channel MOSFET
• Vds: 100V
• Id: 31A
• Rds(on): ≈ 0.06Ω @ Vgs = 10V
• Vgs: ±20V Max
• Power Dissipation: 110W
• Package: TO-220
• Operating Temperature: –55°C to +175°C

🔹 Key Features:

✔ High-voltage and high-current MOSFET.

✔ Low Rds(on) for efficient power switching.

✔ Fast switching performance.

✔ Ideal for motor control and DC-DC converters.

🧩 Common Applications:

• DC motor drivers
• PWM controllers
• H-Bridge circuits
• LED power systems
• SMPS converters
• Robotics and automation
