KY-017 Mercury Tilt Switch Sensor Module

⚡ KY-017 Mercury Tilt Switch Sensor Module ⚡

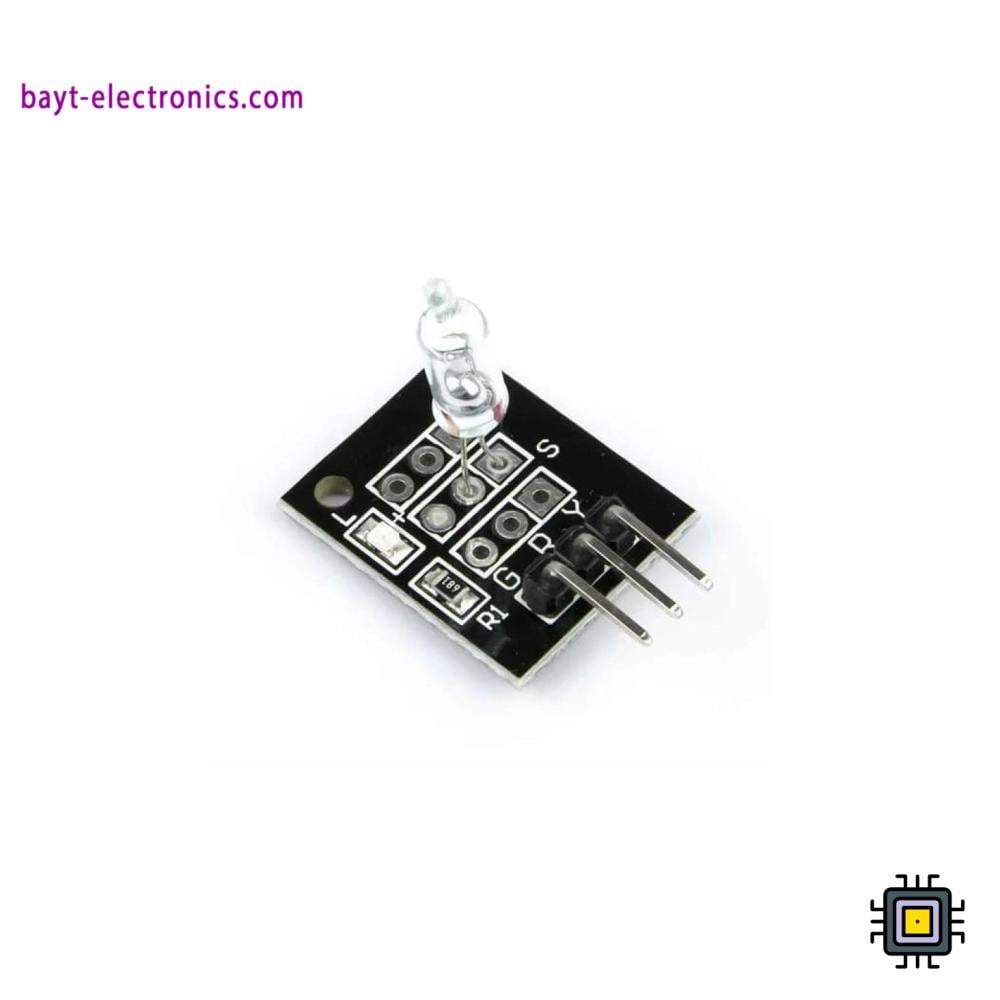

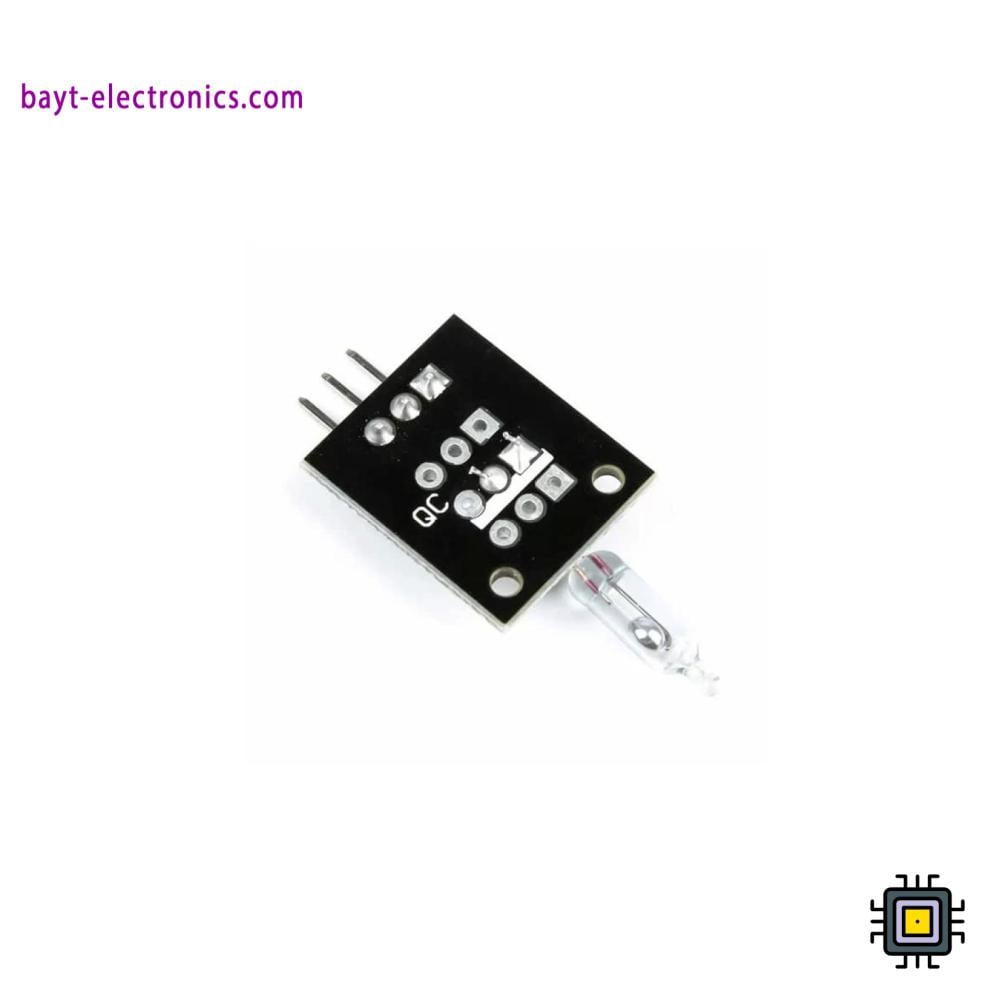

The KY-017 module is a tilt and vibration detection sensor that uses a small mercury switch. When the module is tilted or shaken, the liquid mercury completes or breaks the circuit, generating a digital signal readable by microcontrollers such as Arduino or Raspberry Pi. It is widely used for detecting motion, tilt, or vibration in simple electronic projects.

✅ Technical Specifications:

• Model: KY-017.
• Sensor Type: Mercury Tilt Switch.
• Operating Voltage: 3.3V – 5V DC.
• Output Signal: Digital (HIGH/LOW).
• Tilt Angle: ~30° – 90° (depending on position).
• Interface: 3 pins (VCC, GND, Signal).
• LED Indicator: Shows output state.
• Module Size: ~35 × 14 × 7 mm.
• Approximate Weight: 5 g.

🔹 Key Features:

✔ Simple and effective tilt/vibration detection.

✔ Digital output easily read by Arduino or other MCUs.

✔ Built-in LED indicator for signal status.

✔ Compact and lightweight design.

✔ Ideal for educational and DIY projects.

📌 Common Applications:

• Tilt or vibration detection.
• Anti-tampering or motion alarms.
• Robotics position detection.
• Educational IoT projects.
• Simple security systems.
