⚡ L7805 Linear Voltage Regulator – Fixed 5V Output

The L7805 is one of the most widely used linear voltage regulators, providing a stable 5V output for digital and embedded circuits.

With its built-in protection and ability to supply up to 1A, it is ideal for powering microcontrollers, sensors, and low-voltage systems.

✅ Specifications:

• Model: L7805
• Output Voltage: 5V
• Max Output Current: 1A
• Recommended Input: 7V–20V
• Max Input: 35V
• Protections: Overcurrent / Thermal / Short Circuit

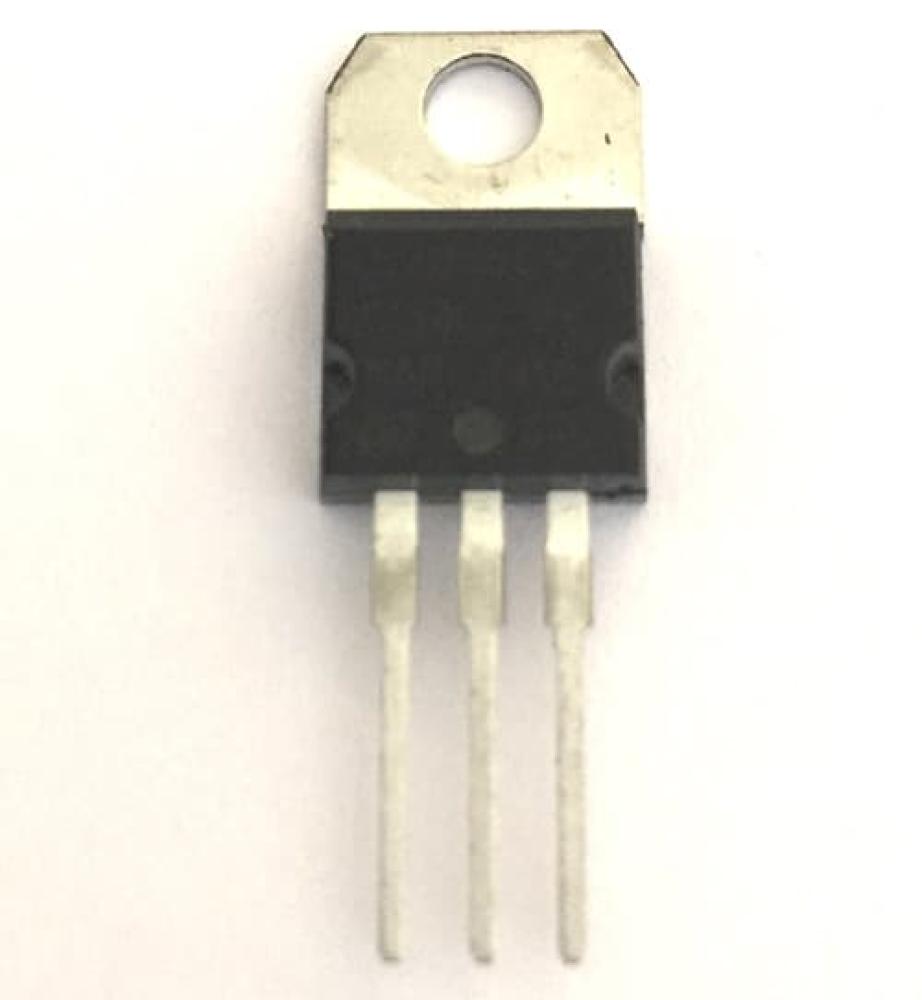

• Package: TO-220
• Weight: ≈2g

🔹 Key Features:

✔ Stable and clean 5V output.

✔ Built-in safety protections.

✔ Ideal for digital circuits.

✔ Easy to integrate into power supply designs.

📌 Common Applications:

• Arduino / ESP modules
• Sensors
• Power supply circuits
• Embedded controllers
• Small robots and DIY electronics
