L7824 Linear Voltage Regulator – 24V Fixed Output

⚡ L7824 Linear Voltage Regulator – Fixed 24V Output

The L7824 is a high-voltage linear regulator from the 78xx family, delivering a stable 24V DC output for industrial and control applications.

It offers reliable performance with built-in protection features, making it ideal for relays, actuators, and industrial electronics.

✅ Specifications:

• Model: L7824
• Output Voltage: 24V Fixed
• Max Output Current: 1A
• Recommended Input Voltage: 27V–35V DC
• Max Input Voltage: ≈40V
• Protections: Thermal / Overcurrent / Short Circuit

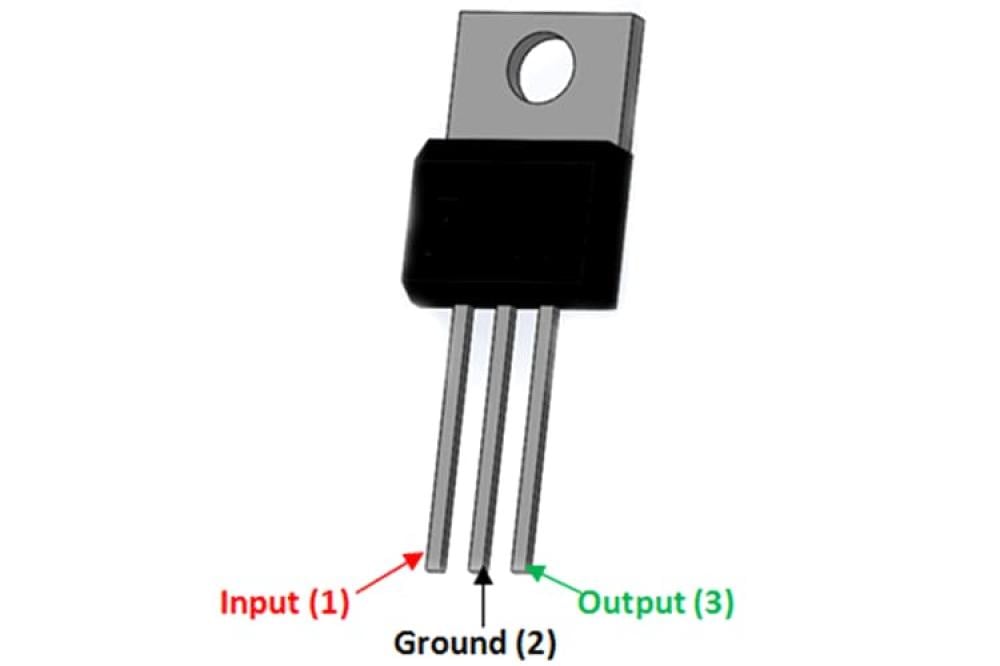

• Package: TO-220
• Operating Temperature: 0°C to 125°C
• Weight: ≈2.5g

🔹 Key Features:

✔ Stable 24V DC output.

✔ Designed for industrial applications.

✔ Built-in safety protections.

✔ Easy integration into power supply circuits.
