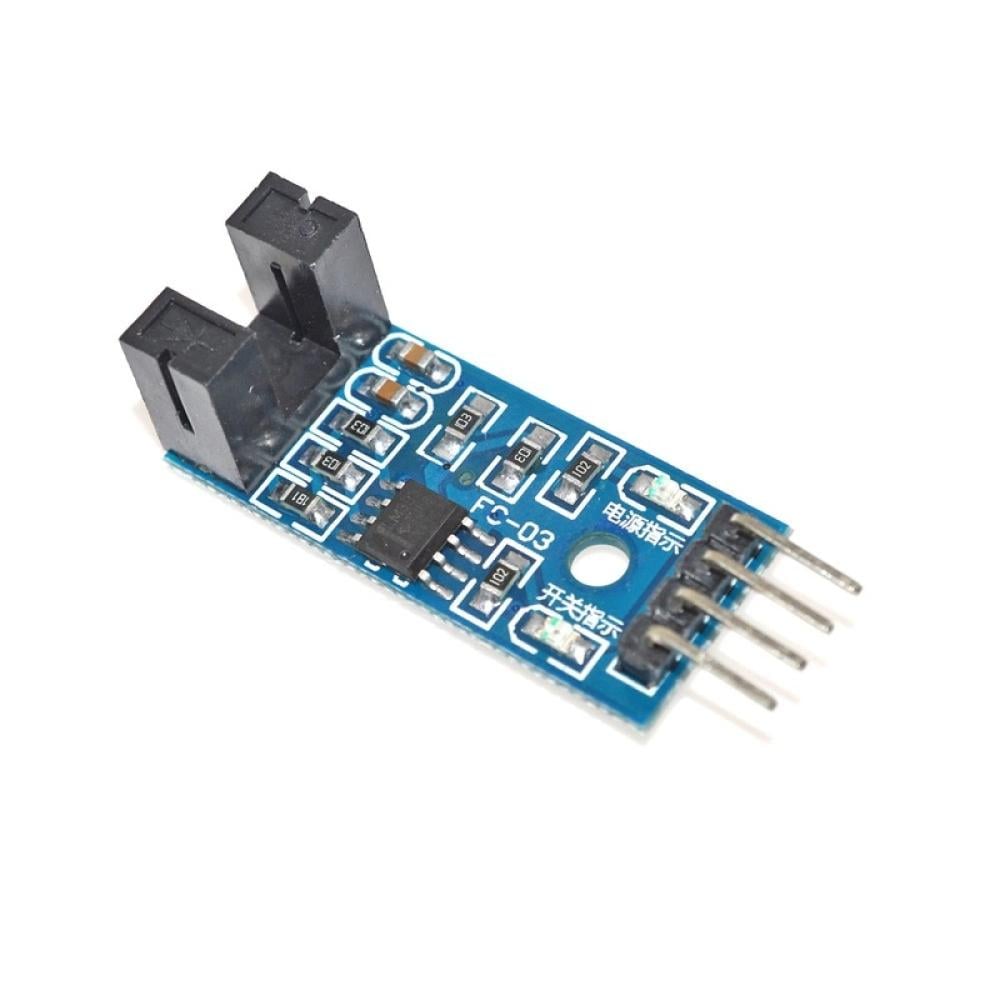

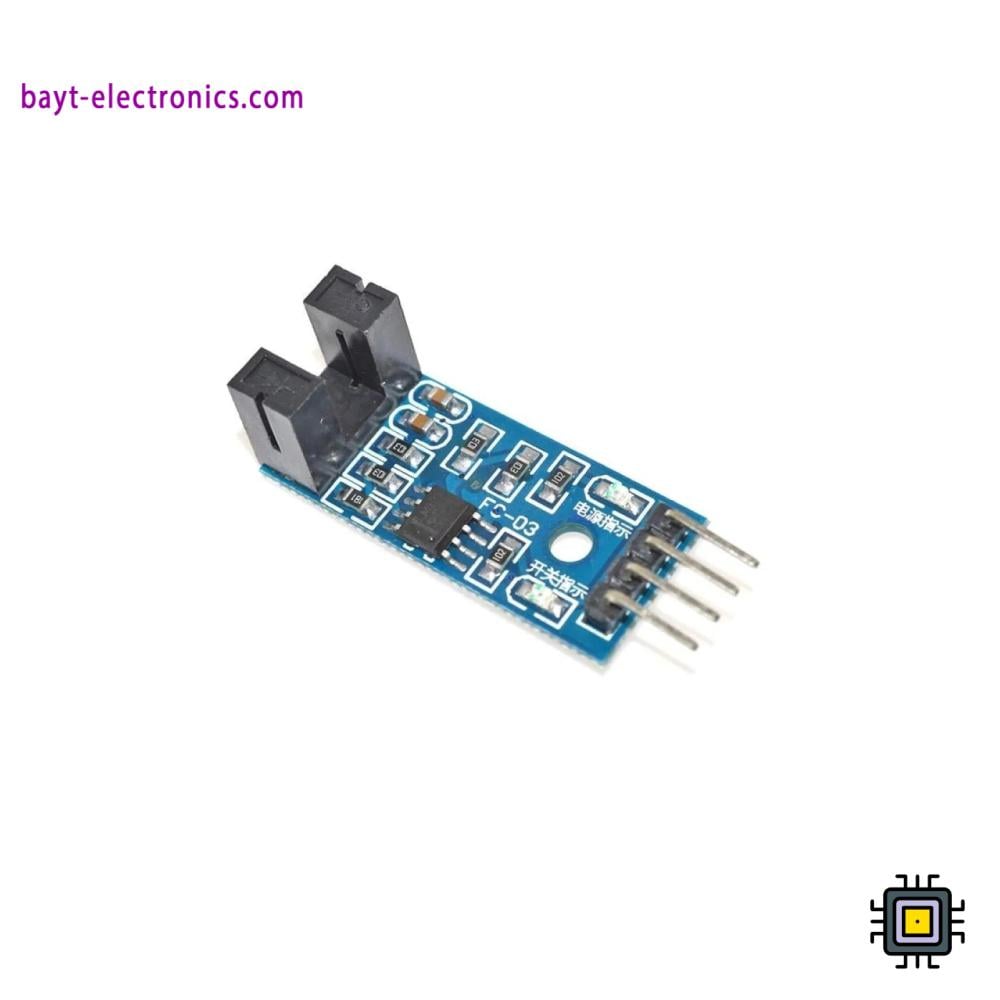

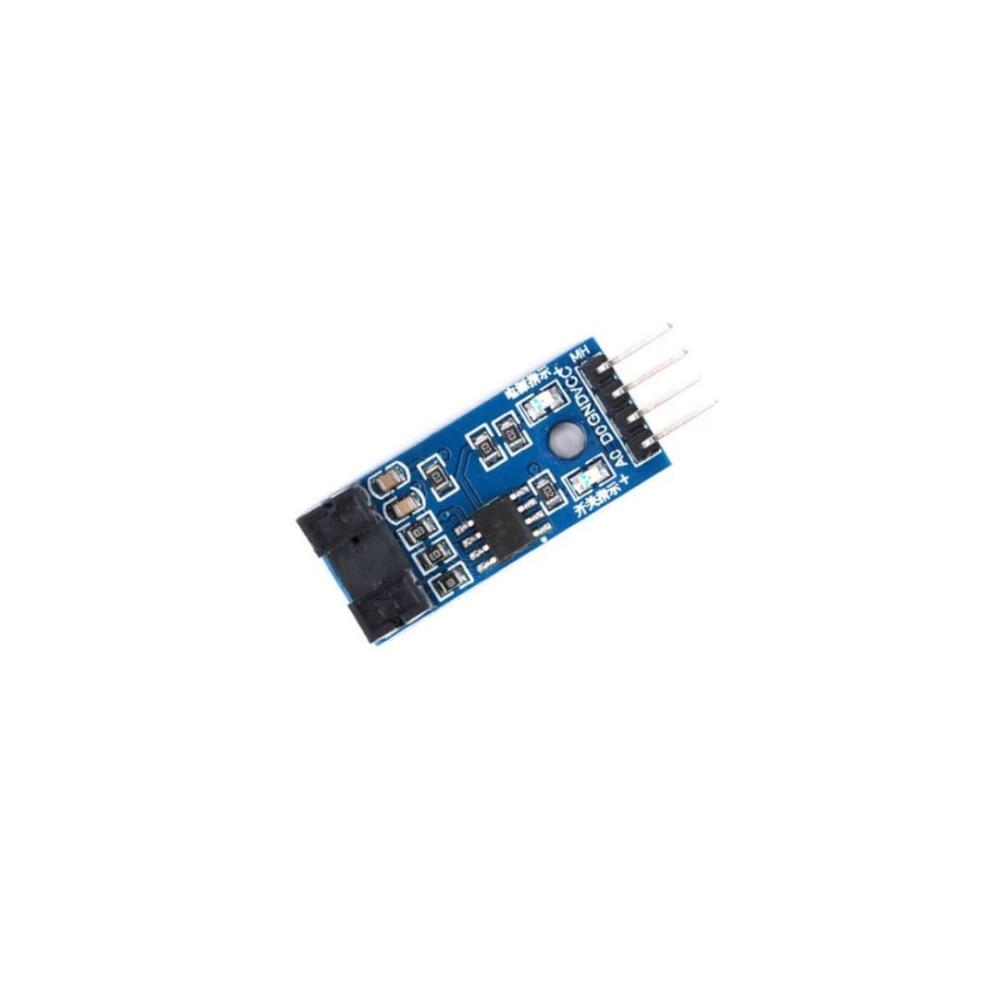

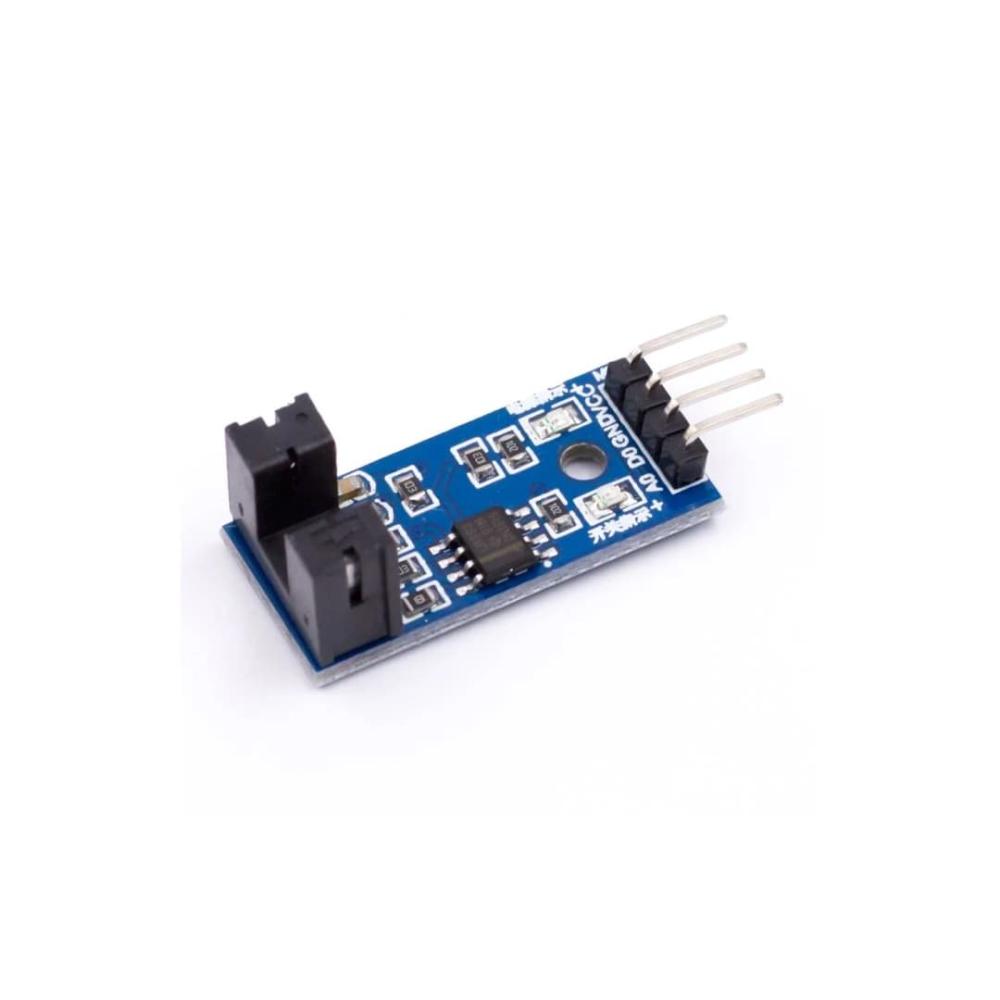

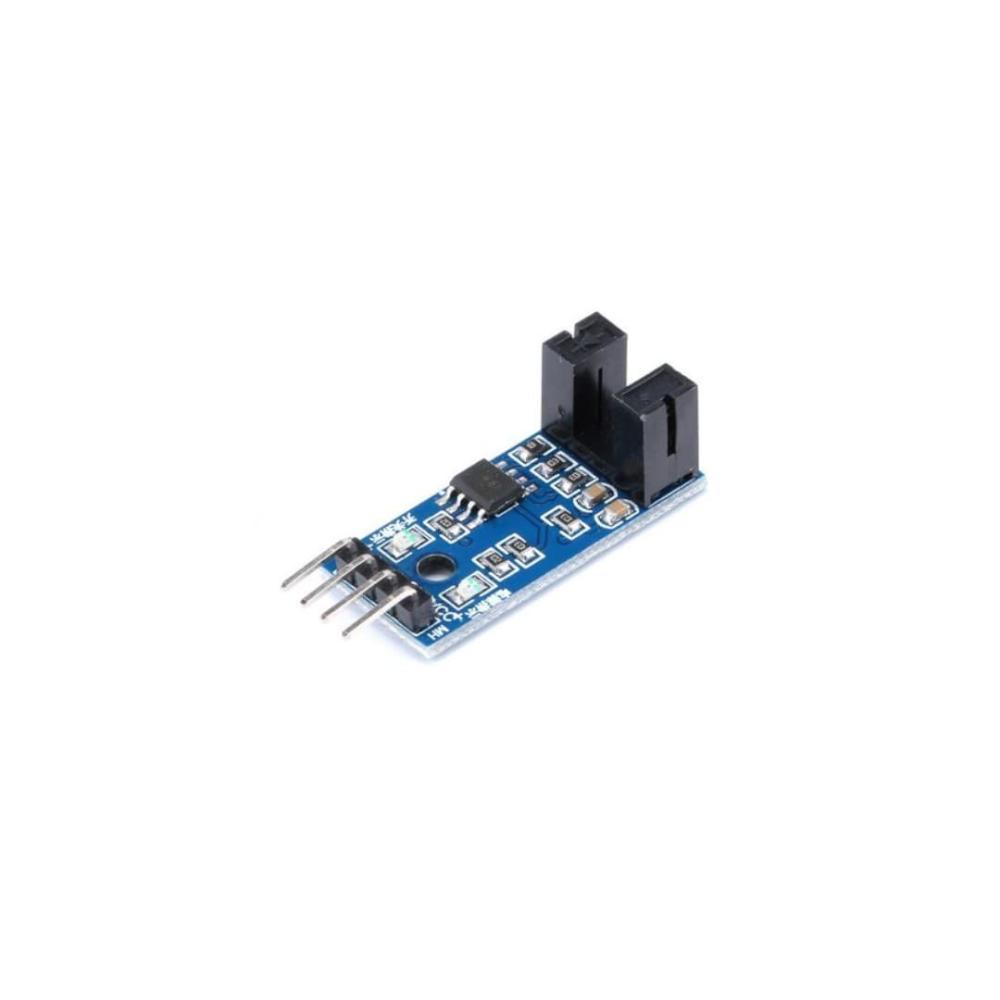

⚙️ LM393 Motor Speed Sensor Module – Groove Coupler Optical Encoder ⚙️
The LM393 Speed Sensor Module uses an infrared slot coupler to detect rotational speed or motion by counting interruptions in a light beam.
As an object (such as a wheel slot or encoder disc) passes through the sensor’s gap, it outputs digital pulses that can be easily read by Arduino, ESP32, or Raspberry Pi.
Perfect for robotics, automation, motor control, and speed measurement applications.
✅ Technical Specifications:
- Model: LM393 Speed Sensor Module
- Chipset: LM393 Comparator IC
- Sensor Type: Infrared Slot Coupler
- Operating Voltage: 3.3V – 5V DC
- Output Type: Digital (HIGH / LOW)
- Detection Gap Width: ≈ 10mm
- Indicator: On-board LED output indicator
- Dimensions: 32 × 14 × 10 mm.
- Weight: 5g
🔹 Key Features:
✔ Accurate speed and rotation measurement.
✔ Easy digital output interface for Arduino and MCU use.
✔ LED indicator for signal status monitoring.
✔ Reliable LM393 comparator for stable operation.
✔ Ideal for robotics and motor control systems.
📌 Common Applications:
- Measuring motor RPM.
- Optical encoder systems.
- Robotics wheel motion detection.
- Pulse counting and automation systems.
- DIY motor control projects.
