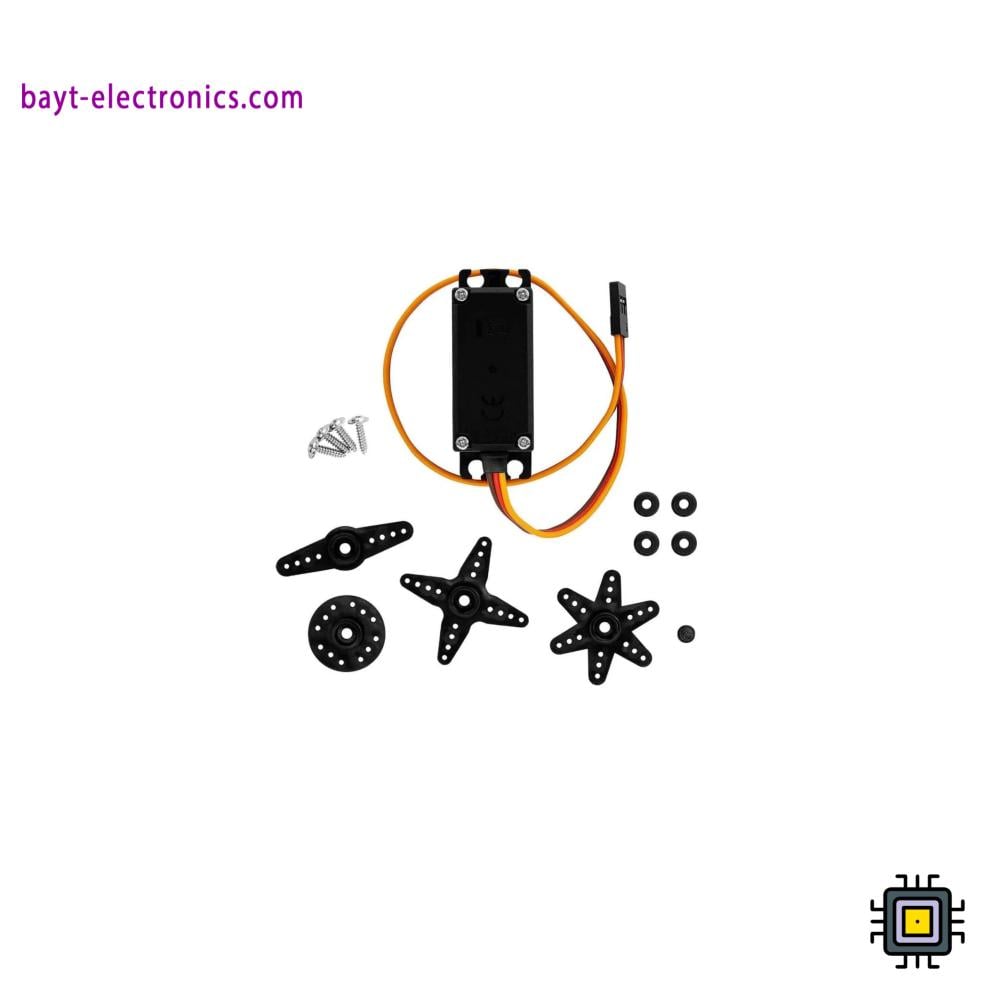

MG996R 180° Servo Motor – 13kg/cm High Torque – High Quality

🔄 MG996R 180° Servo Motor – High Torque 13kg/cm 🔄

The MG996R is a high-torque servo motor with full metal gears, capable of delivering up to 13kg/cm torque at 6V. It provides precise angular motion up to 180°, making it ideal for robotics, robotic arms, smart cars, and RC models. It is controlled easily with PWM signals and is compatible with Arduino, Raspberry Pi, and ESP32.

✅ Technical Specifications:

• Model: MG996R (180° Standard Rotation).
• Operating Voltage: 4.8V – 7.2V.
• Stall Torque:
• • 11kg/cm @ 4.8V
• • 13kg/cm @ 6.0V
• Rotation Angle: 0° – 180°.
• Gear Type: Full metal gears.
• Speed: 0.17 sec/60° @ 6V.
• Dimensions: 40.7 × 19.7 × 42.9 mm.
• Approximate Weight: 55 g.
• Control Signal: PWM (pulse width 1000–2000µs).

🔹 Key Features:

✔ High torque up to 13kg/cm.

✔ Full metal gear design for durability.

✔ Standard 180° angular rotation.

✔ Easy PWM control with Arduino, Raspberry Pi, ESP32.

✔ Great for robotics and mechanical arm applications.

✔ High-quality and reliable performance.

📌 Common Applications:

• Advanced robotics and motion control.
• Robotic arms and RC vehicles.
• Educational robotics and DIY electronics.
• Angular positioning systems (arms, wheels, steering).
• IoT and smart robotic projects.
