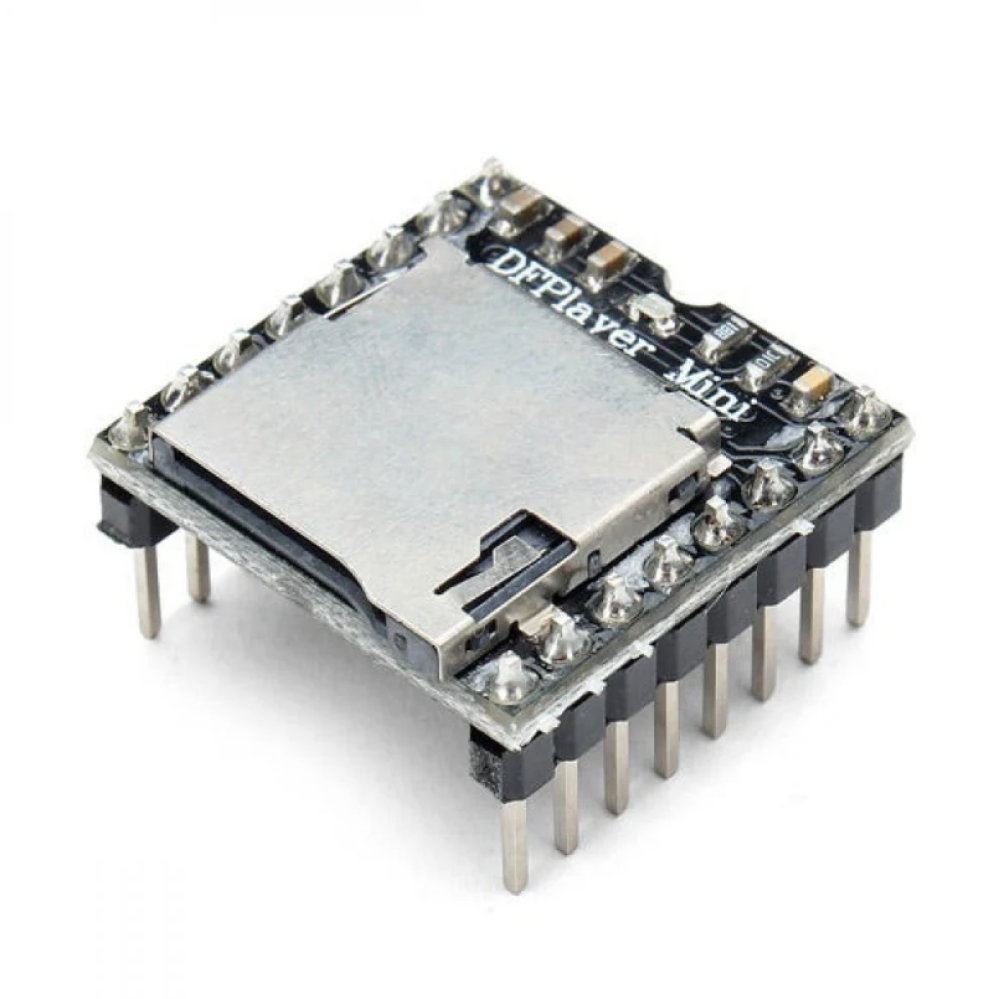

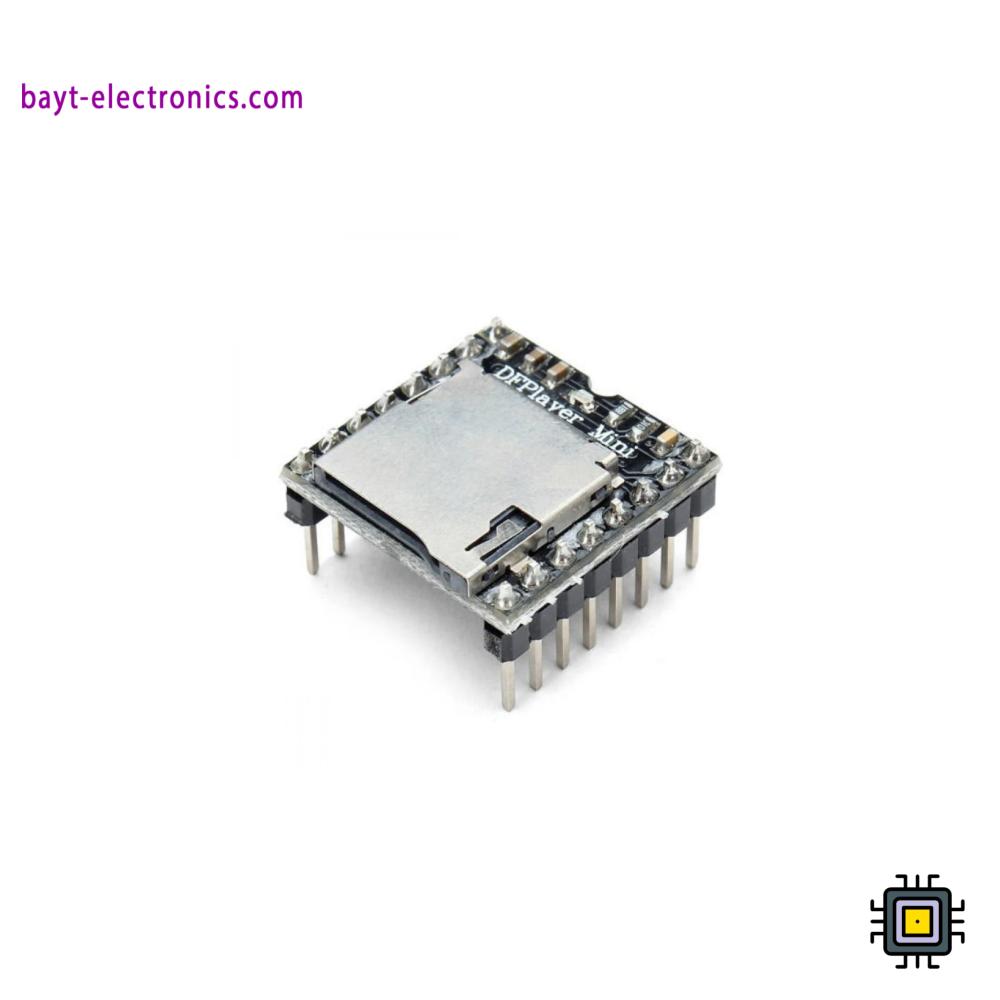

🎶 MP3-TF-16P MP3 Player Module – TF Card Audio Decoder with Serial Control (Updated TD5580A Chip) 🎶
The MP3-TF-16P module allows easy playback of MP3, WAV, and WMA audio files from a TF (microSD) card using serial UART commands.
This latest version uses the TD5580A chip, replacing the older YX5200.
Perfect for Arduino, ESP32, or Raspberry Pi projects that need simple and reliable audio playback.
✅ Technical Specifications:
- Model: MP3-TF-16P
- Chipset: TD5580A (YX5200 replacement)
- Operating Voltage: 3.2V – 5V DC
- Interface: UART (TX, RX)
- Storage Support: TF Card (microSD) up to 32GB
- Supported Formats: MP3 / WAV / WMA
- Bitrate: 8 – 320 kbps
- Audio Output:
- • DAC Output
- • Serial command control (TX/RX)
- Functions: Play, Pause, Next, Previous, Volume, Repeat, Folder selection
- Auto playback on card insertion
- Size: 22 × 15 × 3 mm
- Weight: ≈ 3g
🔹 Key Features:
✔ Serial control via simple UART commands.
✔ Supports folder navigation and file indexing.
✔ Compatible with Arduino and microcontrollers.
✔ Compact and energy-efficient design.
✔ New TD5580A chip for improved reliability and compatibility.
📌 Common Applications:
- Voice playback and audio alert systems.
- Interactive education or museum exhibits.
- Talking robots and AI assistants.
- Advertising or display units.
- DIY music playback and embedded audio.
