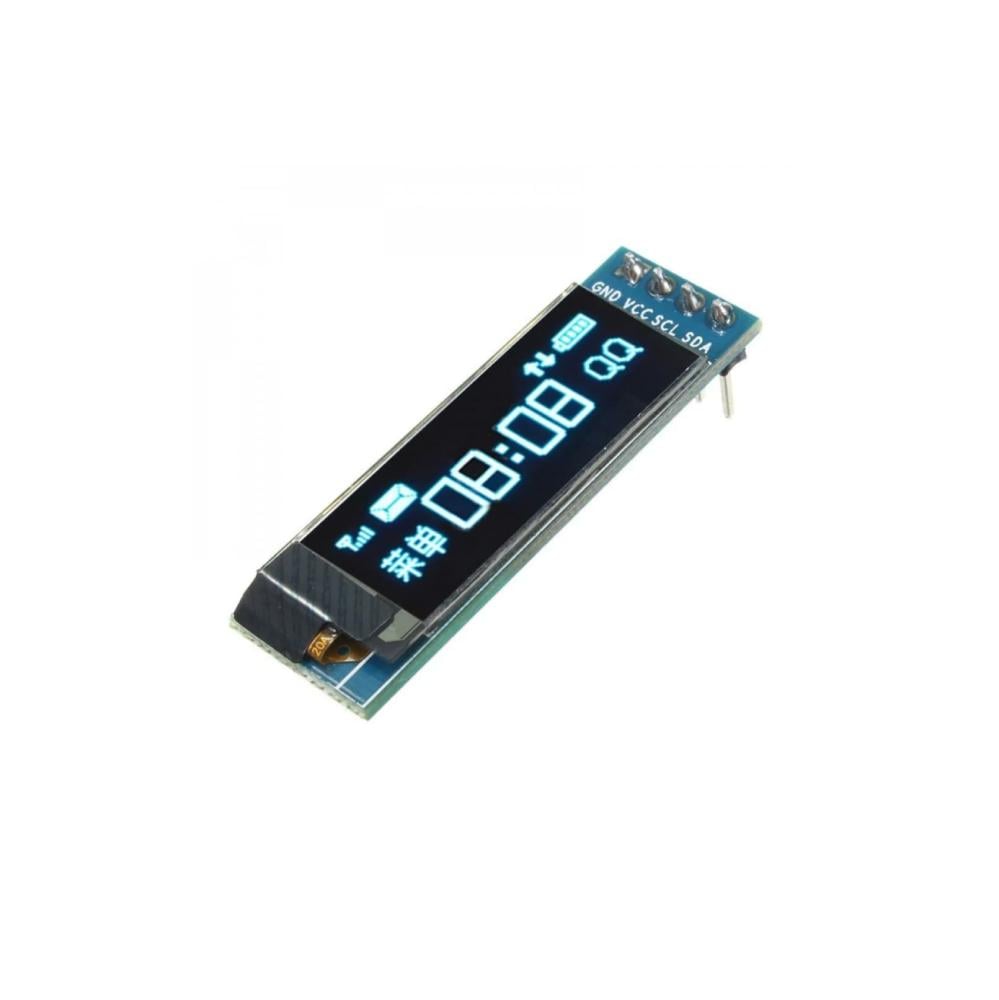

🖥️ 0.91 Inch OLED Smart Display - I2C Interface 🖥️
Display your data elegantly and clearly using the 0.91-inch OLED smart display! Featuring high display quality, low power consumption, and easy interfacing via I2C, it is perfect for microcontroller projects like Arduino, ESP32, and Raspberry Pi.
✅ Technical Specifications:
- Display Type: OLED
- Display Size: 0.91 inch
- Resolution: 128 × 32 pixels
- Display Color: White
- Interface: I2C (4 pins: GND, VCC, SCL, SDA)
- Operating Voltage: 3.3V to 5V

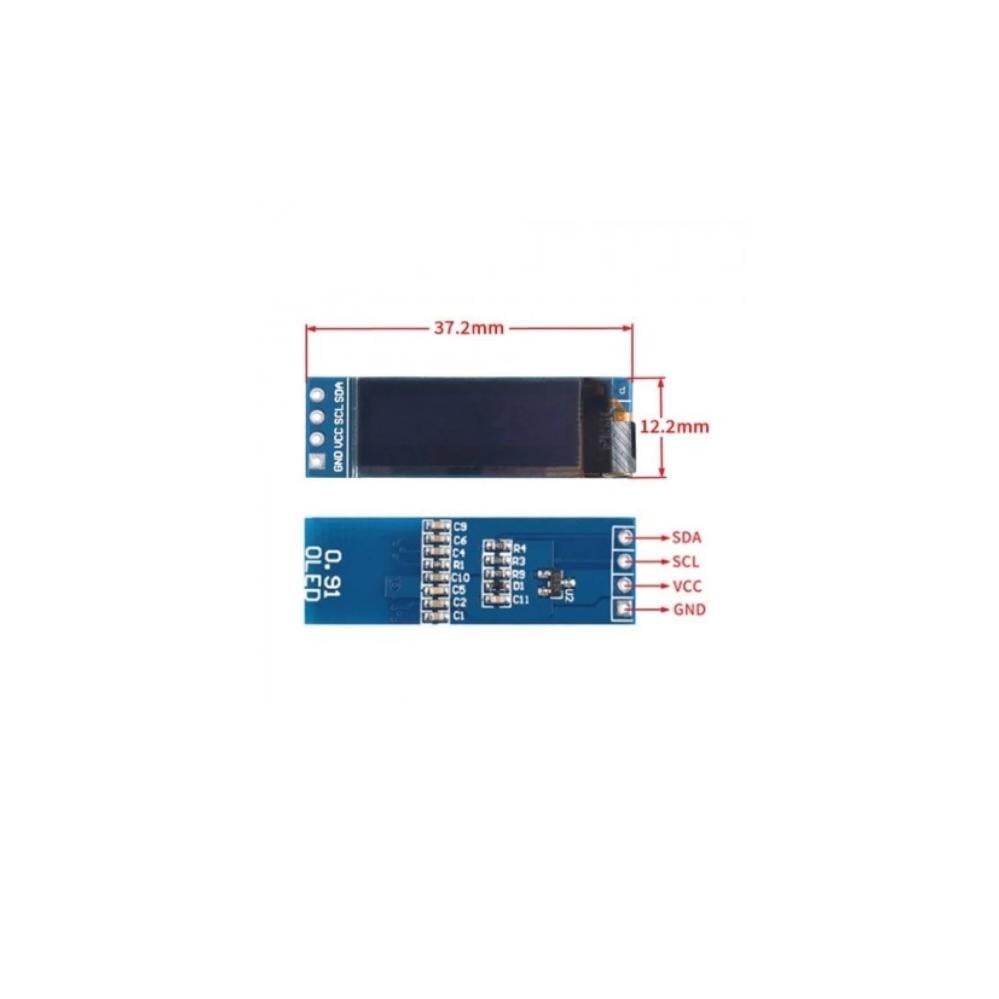

- Board Dimensions: Approx. 37.2 mm × 12.2 mm
- Wide Viewing Angle: > 160 degrees
- Supports fonts and small graphics
🔹 Key Features:
- High contrast and clear data display
- Ultra-low power consumption
- Easy to use with libraries like U8g2 or Adafruit SSD1306
- Compact and lightweight design
- Ideal for portable and smart systems
📌 Common Applications:
- Sensor data displays
- Smart digital clocks
- Electronic counters and performance monitors
- Mini weather station displays
- Portable monitoring systems
🔹 Approximate Weight: 15g
