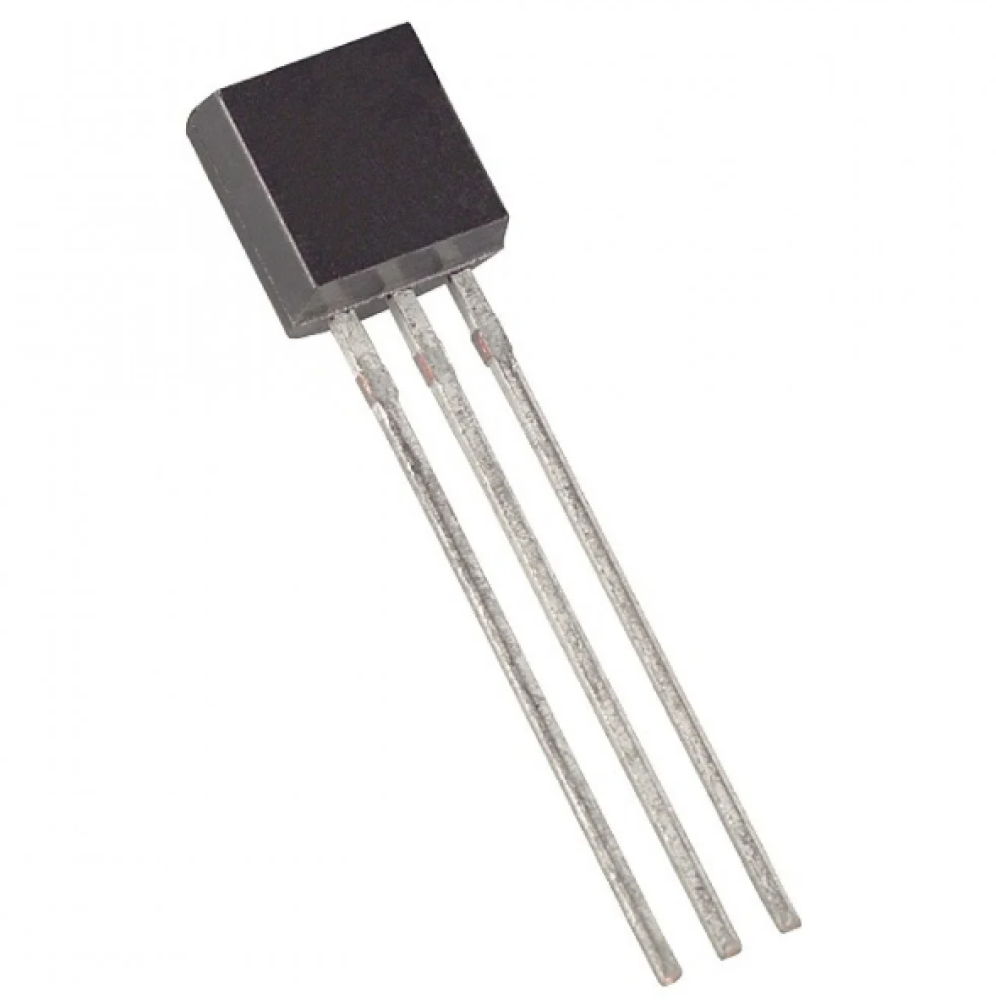

⚡ S8550 PNP Bipolar Junction Transistor (BJT) ⚡
The S8550 is a PNP BJT transistor designed for controlling small currents in various electronic applications. It can handle up to 1.5A of current and 40V between the collector and base, making it ideal for motor control, lighting, transformers, and low-power circuits. It also features high switching speed, making it perfect for circuits requiring fast and precise current control.
✅ Technical Specifications:
- Transistor Type: PNP - Bipolar Junction Transistor (BJT)
- Collector-Base Voltage (Vcb): 40V
- Maximum Collector Current (Ic): 1.5A
- Maximum Operating Voltage (Vce): 25V
- DC Current Gain (hFE): 85 - 300 (varies with base current)
- Operating Temperature: -55 to 150°C
- Maximum Frequency (fT): 150MHz
🔹 Key Features:
✔ Precise small-current control, making it ideal for switching applications.
✔ High switching speed for fast response in electronic circuits.
✔ Low power consumption, suitable for energy-efficient designs.
✔ Compatible with digital circuits and embedded systems like Arduino & Raspberry Pi.
✔ Versatile use in motor control, lighting, and low-power applications.
📌 Common Applications:
- Controlling small electric motors.
- Switching and lighting control circuits.
- Used in low-power transformers and power circuits.
- Industrial and electrical control applications.
- Driving components like relays and solenoids.
🔹 Pin Configuration:
1️⃣ Emitter (E): Current exits the transistor.
2️⃣ Base (B): Controls the transistor’s operation.
3️⃣ Collector (C): Main current entry into the transistor.
🔹 Approximate Weight: Less than 1g
