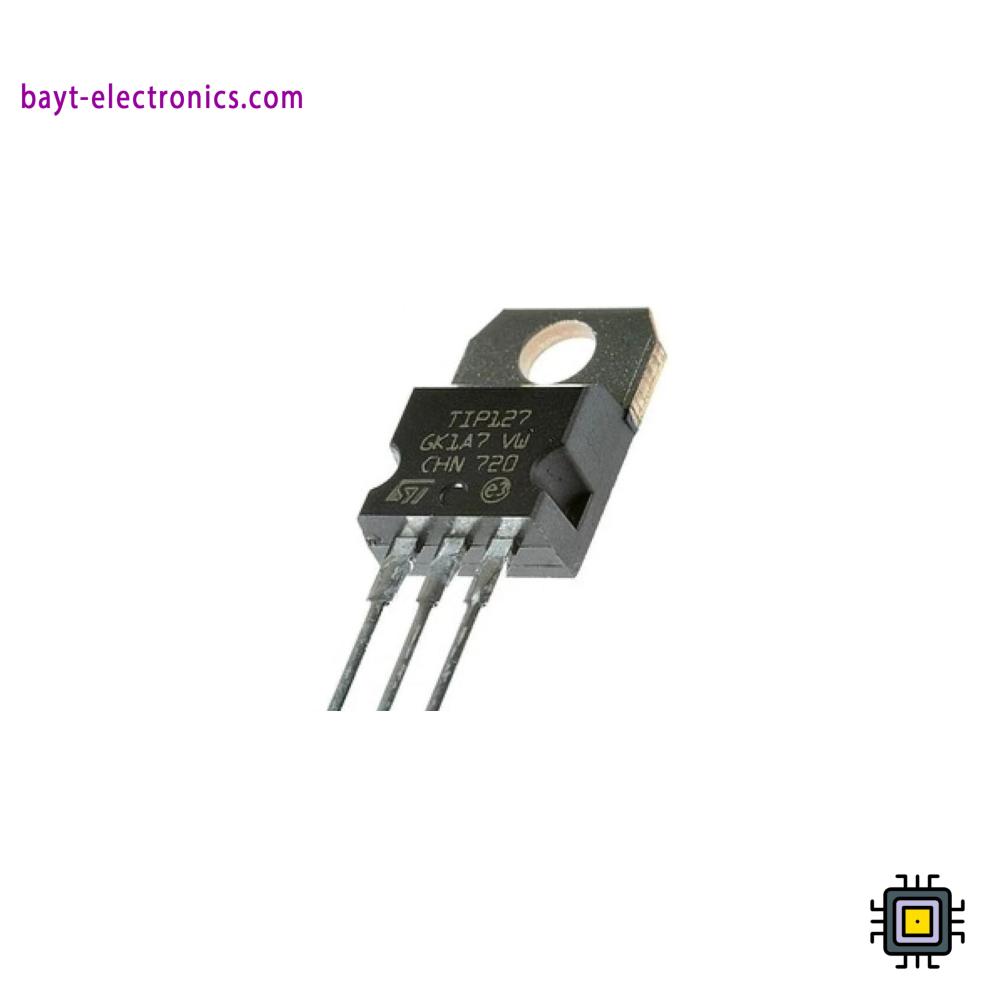

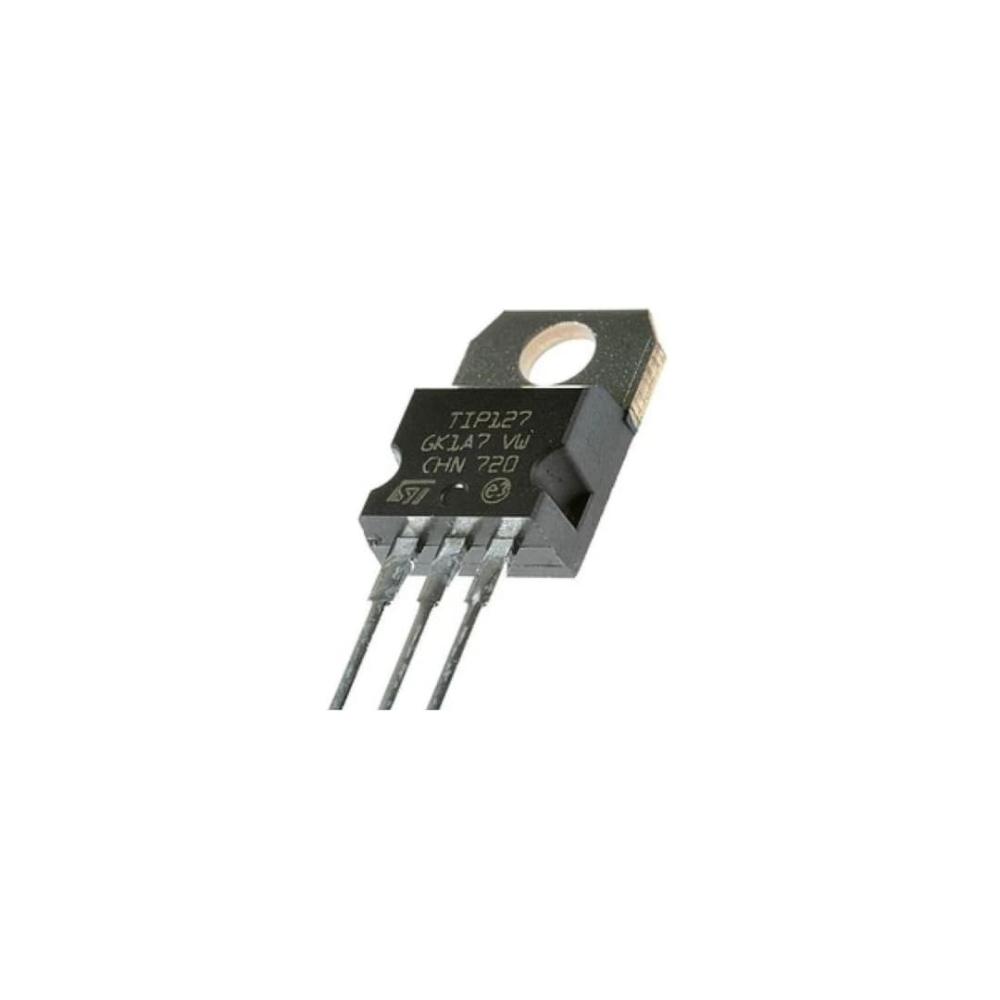

🔋 TIP127 PNP Power Transistor – High Gain Darlington Transistor for Power Control Applications 🔋
The TIP127 is a PNP Darlington transistor designed for high-current and medium-voltage switching or amplification applications.
It’s commonly used in motor drivers, lighting systems, and power control circuits, and is compatible with Arduino, ESP32, and microcontroller-based projects.
✅ Technical Specifications:
- Type: PNP Darlington Power Transistor
- Model: TIP127
- Package: TO-220
- Collector-Emitter Voltage (Vce): -100V
- Collector Current (Ic): -5A
- Power Dissipation (Ptot): 65W
- Base-Emitter Voltage (Vbe): -2V typical
- DC Current Gain (hFE): ≈1000
- Operating Temperature: -65°C to +150°C
- Weight: ≈5g
- Pin Configuration:
- 1️⃣ Base
- 2️⃣ Collector
- 3️⃣ Emitter
🔹 Key Features:
✔ High-gain PNP Darlington configuration for current amplification.
✔ Suitable for switching and amplification in power control circuits.
✔ Durable TO-220 package with excellent heat dissipation.
✔ Works with voltages up to -100V and currents up to -5A.
✔ Ideal for Arduino and electronic control systems.
📌 Common Applications:
- DC motor and fan control.
- Lighting and load switching.
- Audio and signal amplification circuits.
- Relay driver and industrial automation.
- General power management circuits.
Technical Specifications Sheet: Data Sheet
