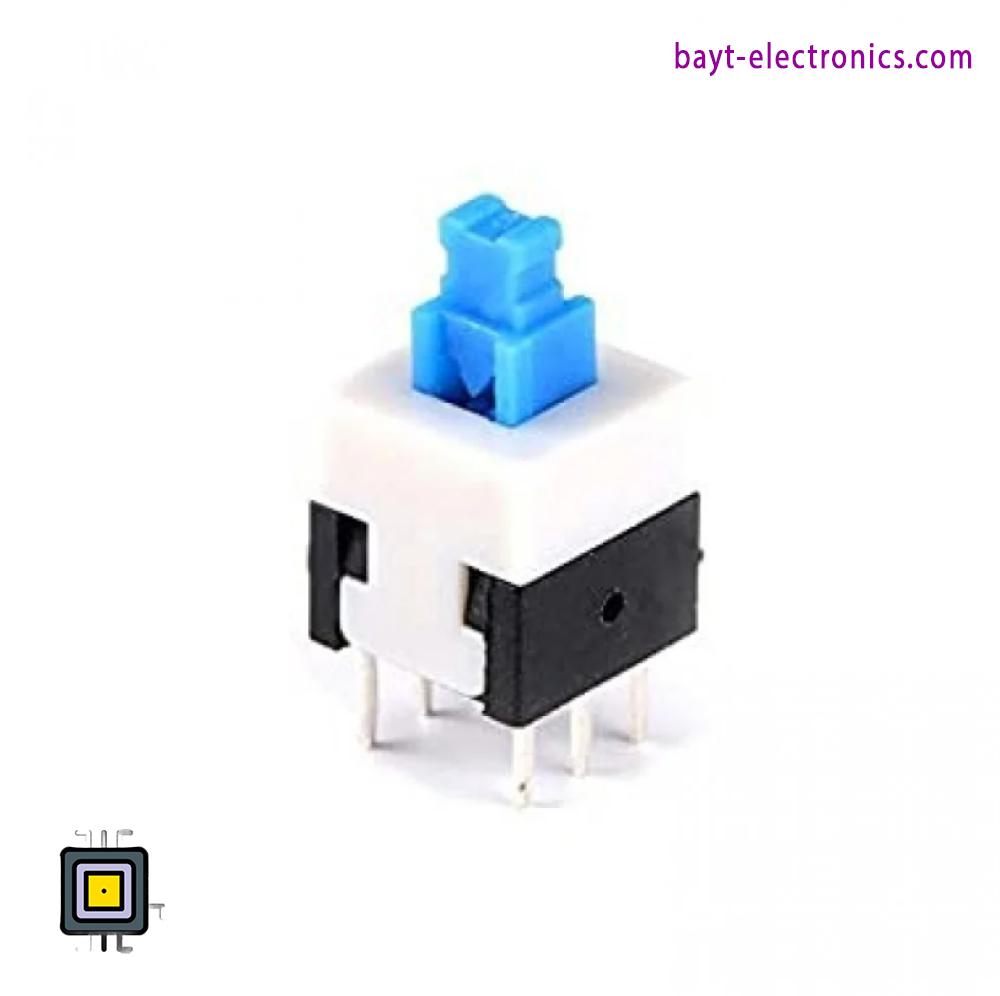

🔁 The DPDT (Double Pole Double Throw) push button switch allows independent control of two separate circuits with a single push. Featuring 6 pins and a compact design, it is commonly used in logic circuits, direction switching for motors, or selecting between different voltage sources. It toggles between ON–ON or ON–OFF–ON configurations depending on internal structure.
- ✅ Specifications:
- Type: DPDT (Double Pole Double Throw) Push Button
- Operation: Push-to-toggle
- Pins: 6 (2 poles × 2 throws)
- Max Current: Up to 3A
- Switching Type: ON–ON / ON–OFF–ON
- Mounting: Through-hole
- Compact size for embedded use
- Actuator Color: Usually Blue
🔹 Key Features:
✔️ Control two circuits independently
✔️ Compact and PCB-friendly design
✔️ Reliable state switching
✔️ Ideal for direction control and logic circuits
✔️ Useful in robotics and dual-state toggling
📌 Common Applications:
- Reversing DC motor direction
- Switching between battery and charger
- Manual toggle in logic-based circuits
- Robot direction control
- Arduino and ESP32 projects
🔸 Product Weight:
Product Weight: 3g
