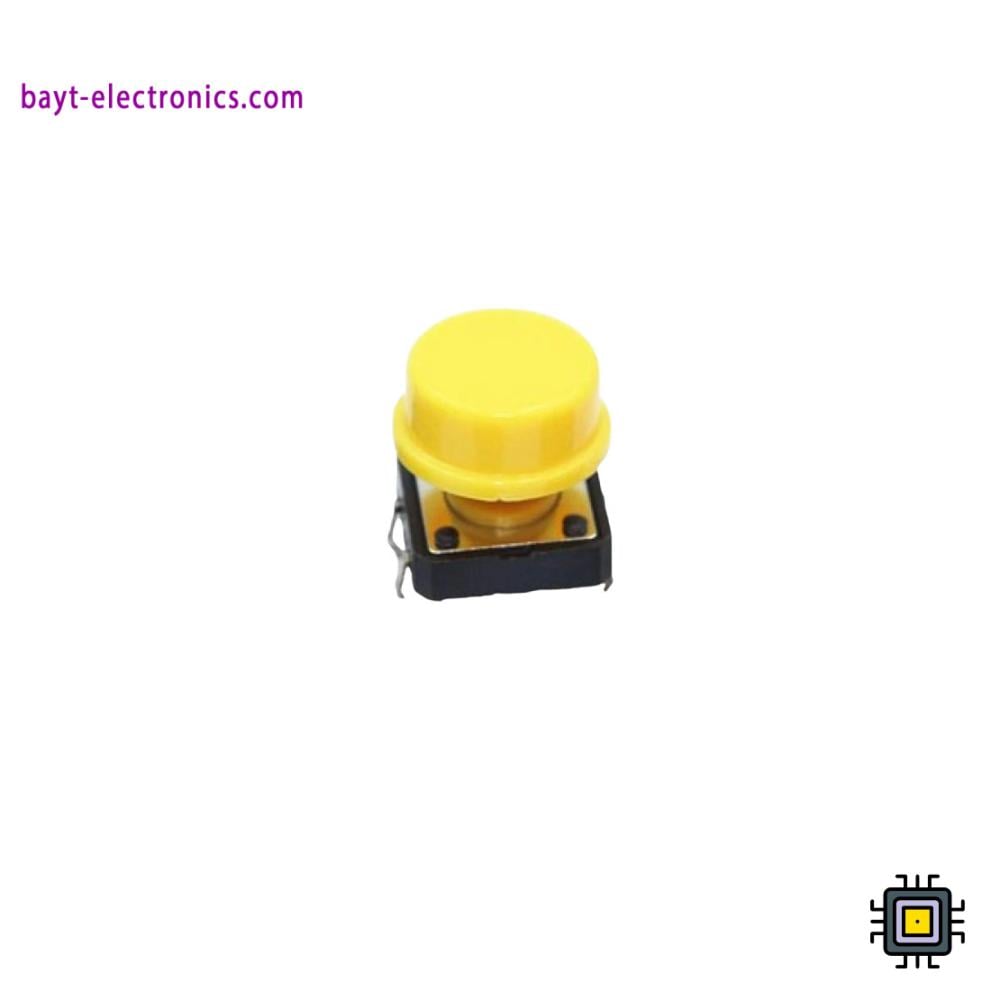

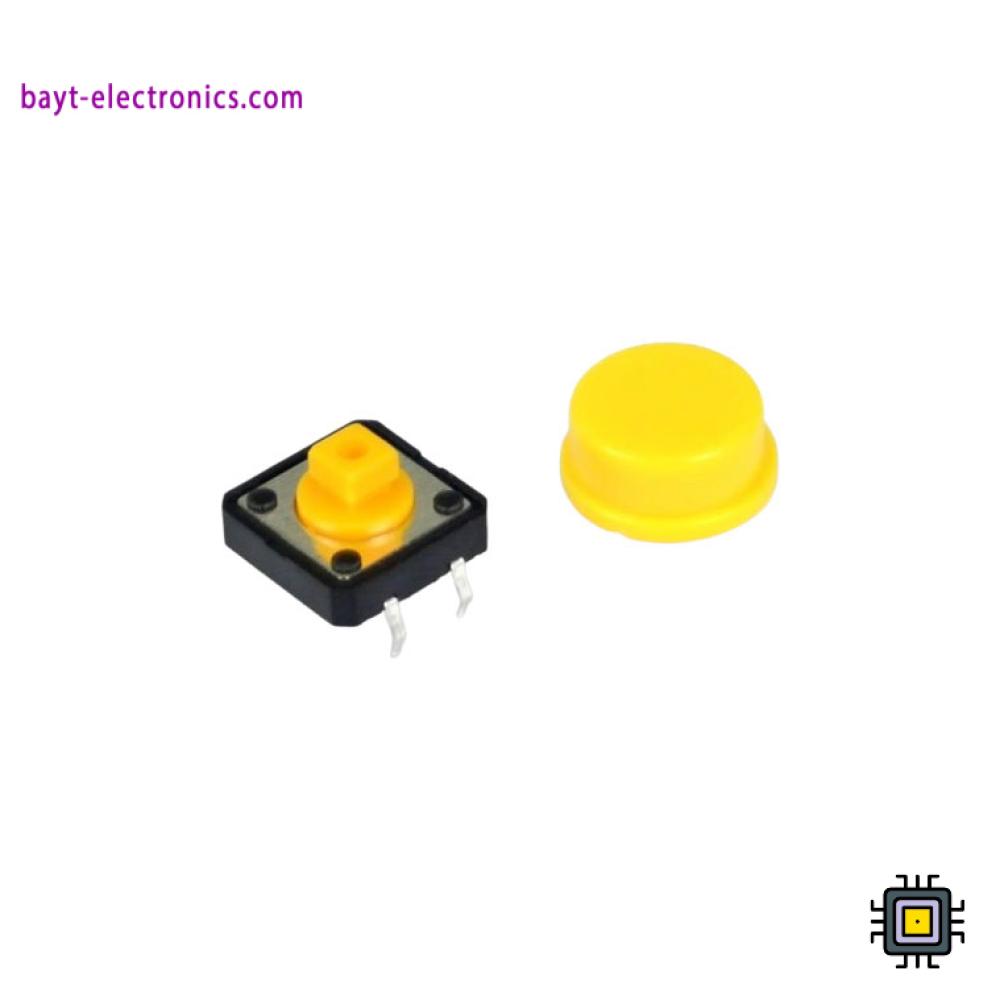

🔘 The E2 push button is a momentary tactile switch featuring a colorful detachable cap that enhances usability and visibility. Sized at 12×12 mm with 4 mounting legs, it is ideal for control panels, interactive projects, or educational electronics. The cap is available in various colors to easily distinguish between different functions or inputs.
- ✅ Specifications:
- Switch Type: Momentary Tactile
- Size: 12 × 12 mm
- Pins: 4 (through-hole compatible)
- Max Voltage: 12V
- Max Current: 50mA
- Contact Type: Normally Open (NO)
- Material: Plastic body + metal contacts + ABS color cap
- Available Colors: Yellow, Red, Blue, Green, White, Black
🔹 Key Features:
✔️ Colored cap for clear visual identification
✔️ Distinct tactile feedback
✔️ Easy mounting on PCBs
✔️ Ideal for interactive interfaces and control boards
✔️ Customizable with color-coded functions
📌 Common Applications:
- Color-coded control buttons in user interfaces
- Arduino or ESP32-based projects
- Educational kits and game consoles
- Prototyping and input control systems
- Visual signal buttons in embedded systems
🔸 Product Weight:
Product Weight: 2.5g
