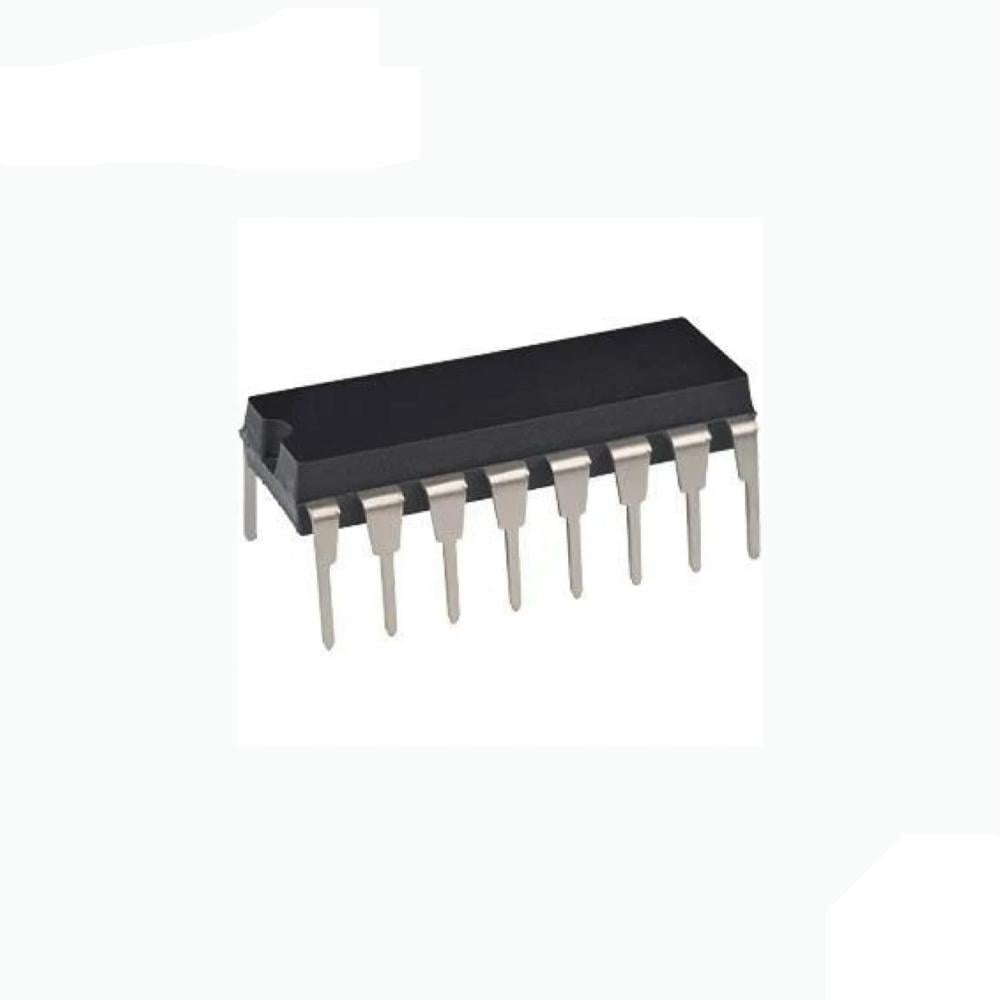

🔒 CD4044BE - Quad SR Latch with Individual Enable Inputs 🔒
The CD4044BE is a quad SR latch IC, providing four independent Set-Reset latches, each with its own enable (EN) input. It is ideal for digital memory, control logic, and signal-holding applications.
✅ Technical Specifications:
- Number of Latches: 4 independent SR latches
- Inputs per Latch: S (Set), R (Reset), EN (Enable)
- Outputs: Q and Q' (complementary)
- Operating Voltage: 3V to 15V (CMOS logic)
- Max Output Current: ±1.5 mA
- Propagation Delay: ~60ns typical
- Operating Temperature: -55°C to 125°C
- Package Type: DIP-16
🔹 Features:
- Individual enable for each latch provides flexible control
- Low power consumption due to CMOS technology
- Wide operating voltage range
- Dual outputs per latch simplify circuit design
- Ideal for educational, sequential logic, and memory-based systems
📌 Common Applications:
- Storing logical states in sequential systems
- Control unit design and logic interlocks
- Digital memory and state retention
- Timer-based logic control
- Signal holding and logic signal storage
🔹 Approximate Weight: 10 grams
