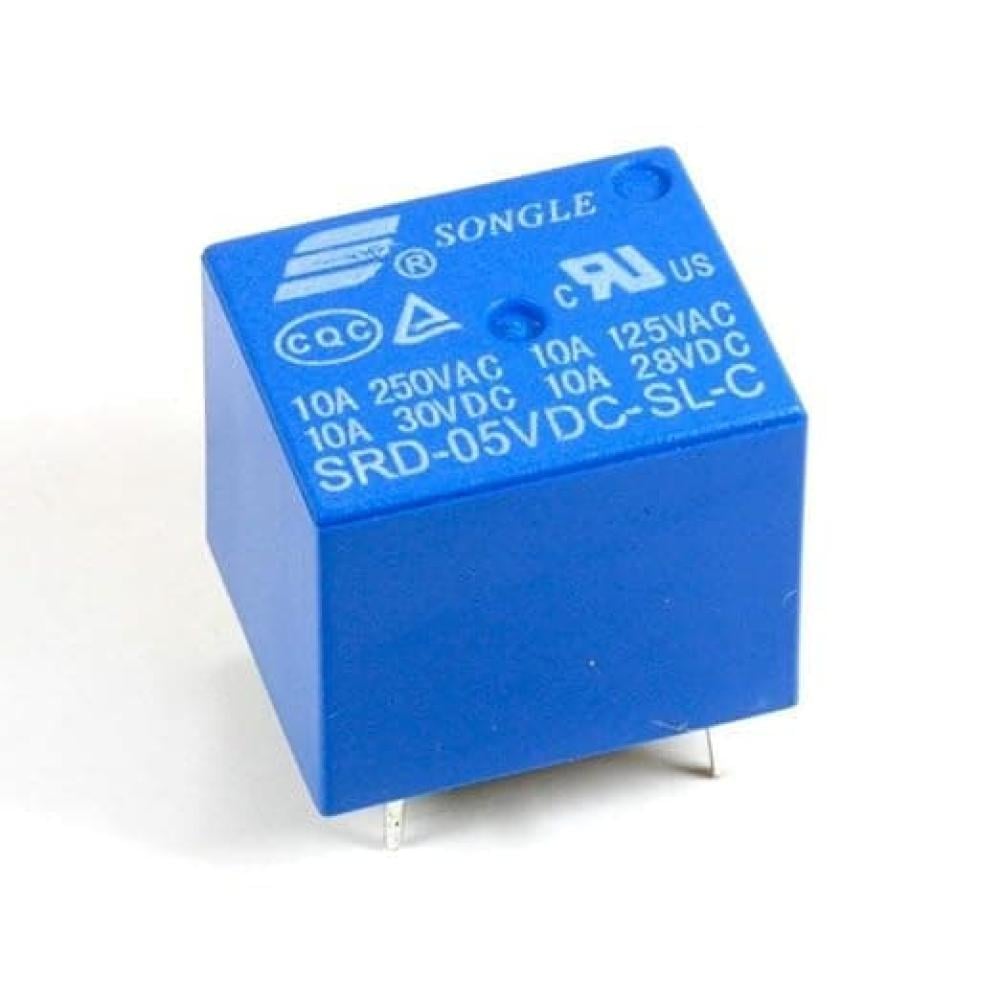

⚡ 5V DC Relay - High-Power SPST Switch for Electrical Loads up to 10A ⚡
The 5V DC Relay with SPST (Single Pole Single Throw) configuration is designed for switching medium to large electrical loads. Perfect for controlling lights, fans, pumps, and small motors with low-voltage signals from microcontrollers like Arduino or Raspberry Pi.
✅ Technical Specifications:
- Coil Voltage: 5V DC
- Relay Type: SPST (Single Pole Single Throw)
- Max Switching Current: 10A
- Max Switching Voltage: 250V AC or 30V DC
- Coil Resistance: ~70 – 100 Ohms (typical)
- Low power consumption
- Operating Temperature: -40°C to 85°C
- Package: Suitable for PCB mounting
🔹 Features:
- High current capacity for household and industrial use
- Low energy consumption with fast switching response
- Simple ON/OFF control for electrical devices
- Ideal for home automation and remote control projects
- Rugged and durable design for long-term reliability
📌 Common Applications:
- Household appliance control
- Arduino and Raspberry Pi load switching projects
- Smart irrigation systems
- Security systems and industrial automation
- Small motor and lighting control circuits
🔹 Approximate Weight: 15 grams
