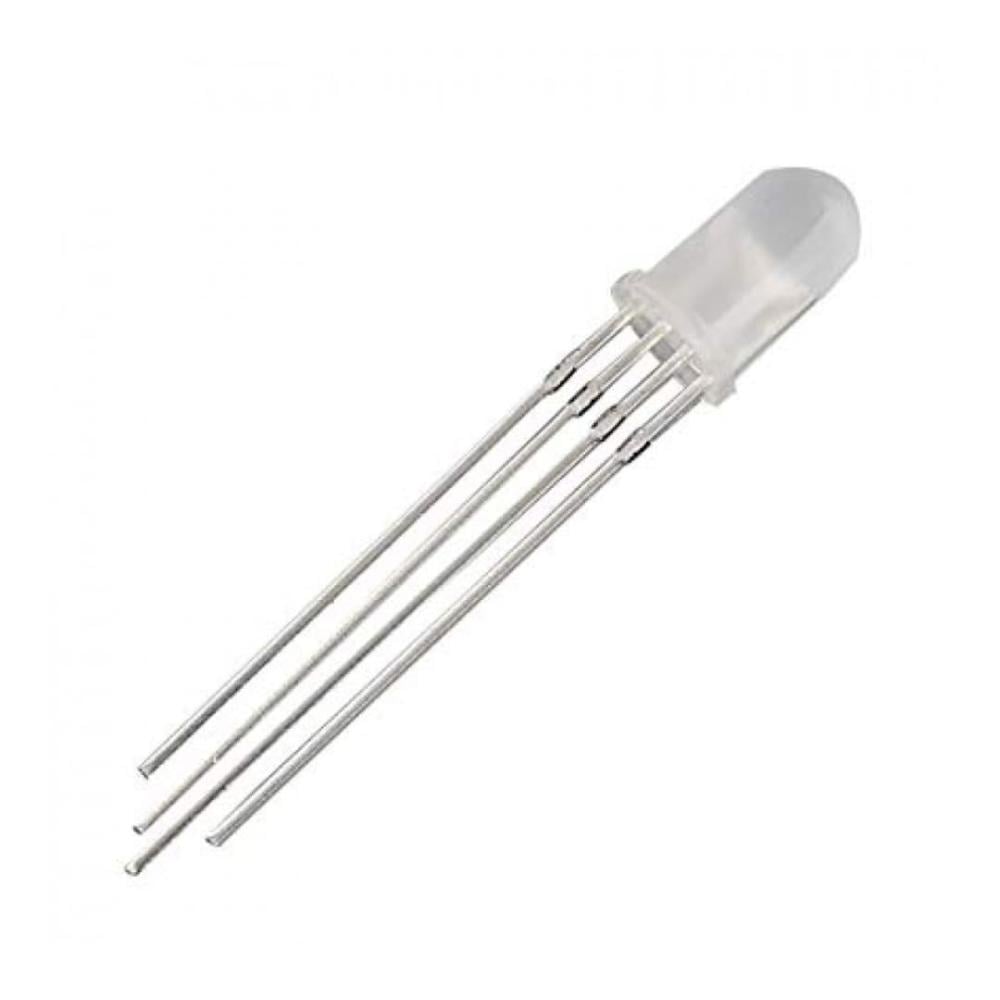

🌈 4-Pin RGB LED Light – Common Anode / Common Cathode 🌈
The RGB LED is a compact light-emitting diode that integrates red, green, and blue chips in a single 5mm clear package. It allows color mixing via PWM signals to create a wide range of colors. Available in two variants: Common Anode (AC 160 CA) and Common Cathode (AC 006 CC), this LED is ideal for interactive and creative electronic projects.
- ✅ Specifications:
- Type: RGB LED – 4 pins
- Models Available:
- ▪ AC 160 CA – Common Anode
- ▪ AC 006 CC – Common Cathode
- Diameter: 5mm
- Number of Pins: 4 (R, G, B + Common)
- Forward Voltage:
- ▪ Red: ~2.0V
- ▪ Green: ~3.2V
- ▪ Blue: ~3.2V
- Rated Current: 20mA per color
- Mounting: Through-Hole (THT)
🔹 Key Features:
✔ Create over 60K colors with PWM control
✔ Clear lens for bright and vivid output
✔ Available in both common anode and cathode types
✔ Perfect for interactive lighting and status indicators
✔ Easy to use with breadboards and PCB circuits
📌 Common Applications:
- Smart and decorative lighting systems
- RGB status indicators
- Arduino or ESP32 interactive projects
- Color blending and animation effects
- Educational electronics and experimentation
