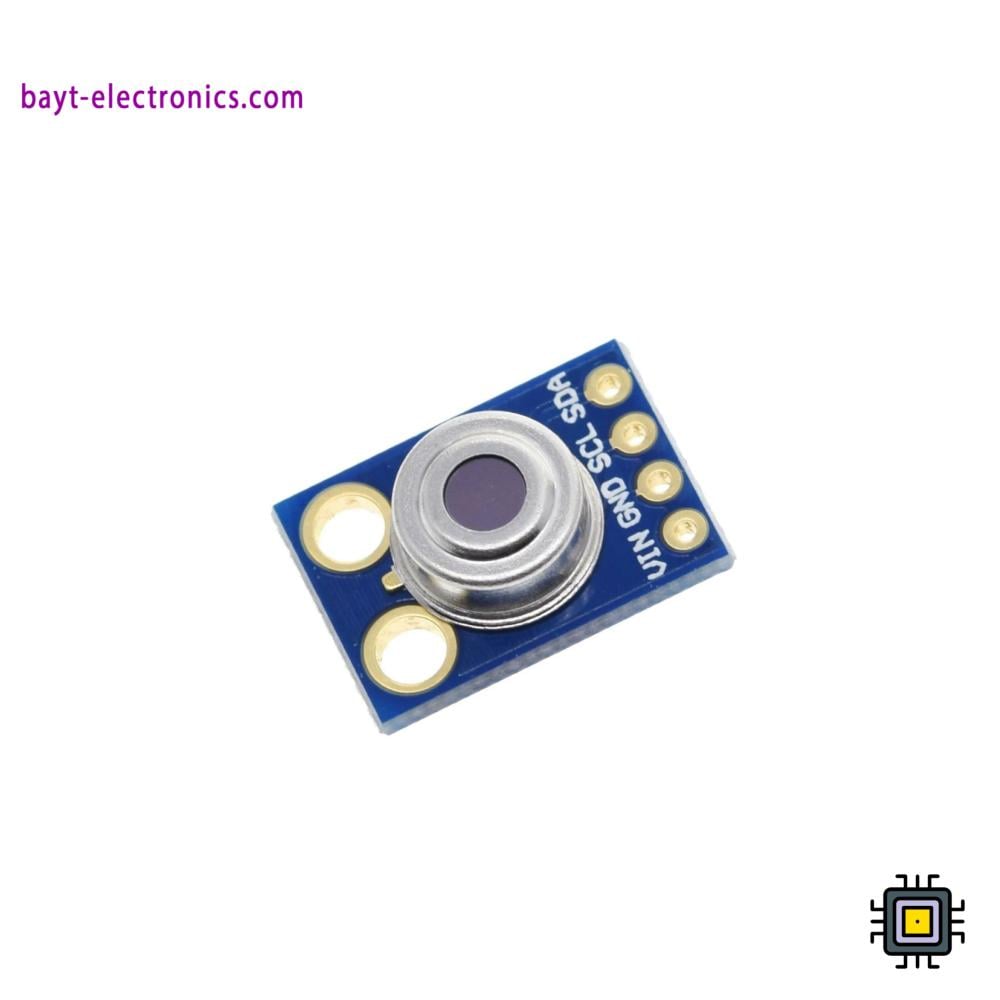

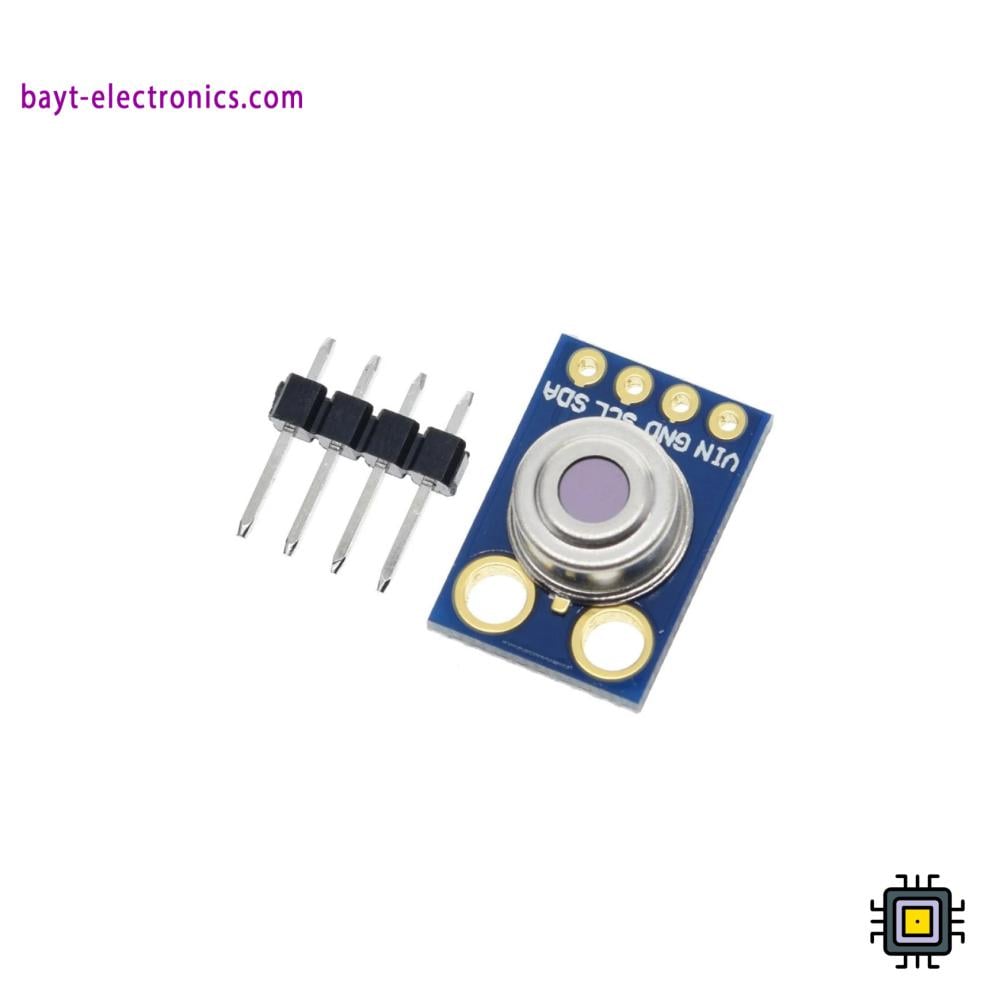

🌡️ The MLX90614 is a high-precision infrared (IR) temperature sensor capable of measuring temperature without physical contact. It uses the I2C protocol to communicate with controllers such as Arduino, ESP32, or Raspberry Pi. It provides fast, accurate readings of both ambient and object temperatures, making it suitable for medical, industrial, and smart automation systems.
- ✅ Specifications:
- Model: MLX90614
- Operating Voltage: 3.3V to 5V
- Interface: I2C
- Object Temperature Range: -70°C to +380°C
- Ambient Temperature Range: -40°C to +125°C
- Accuracy: ±0.5°C
- Pins: 4 (VCC, GND, SCL, SDA)
- Response Time: Fast and real-time
🔹 Key Features:
✔️ Contactless temperature measurement
✔️ High accuracy and fast response
✔️ Compatible with Arduino, ESP32, Raspberry Pi
✔️ Compact and easy to mount
✔️ Ideal for medical and smart automation systems
📌 Common Applications:
- Non-contact body temperature measurement
- Smart home and safety systems
- Robotics and human/object detection
- HVAC control systems
- Medical and environmental monitoring
🔸 Product Weight:
Product Weight: 3g
