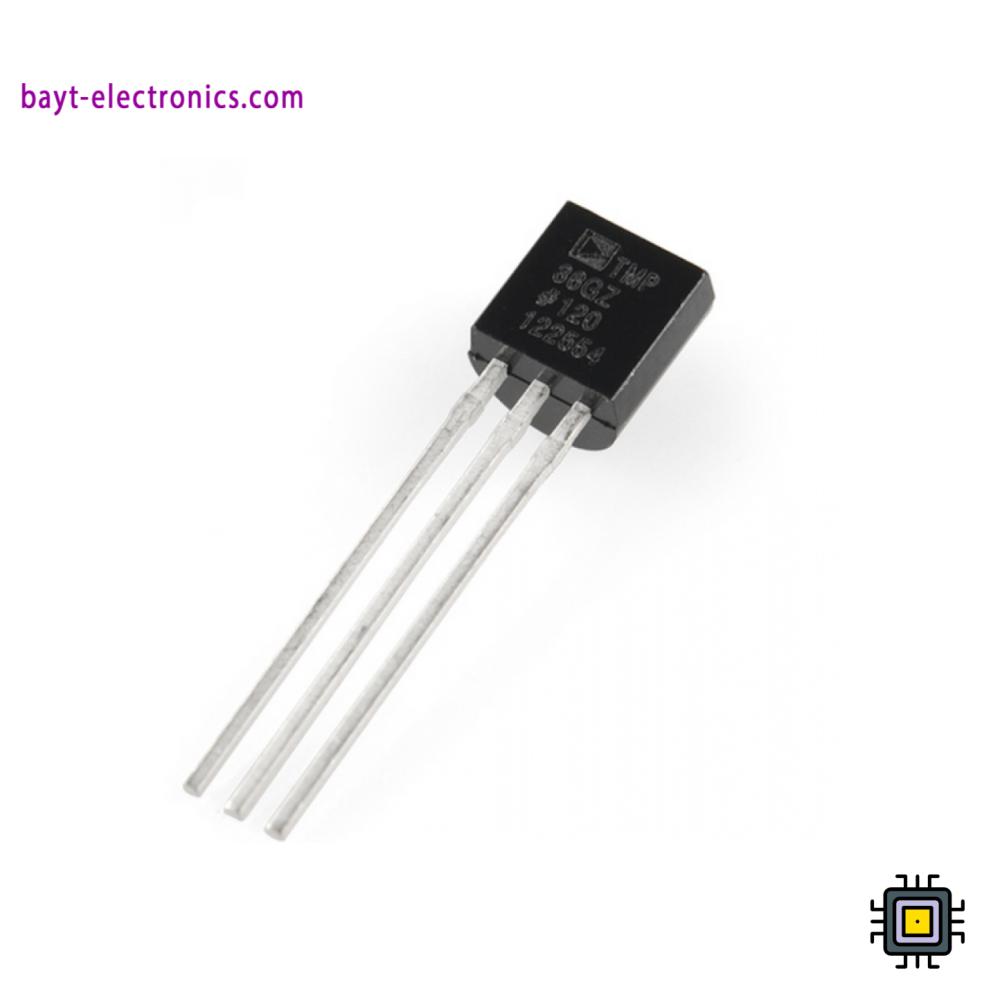

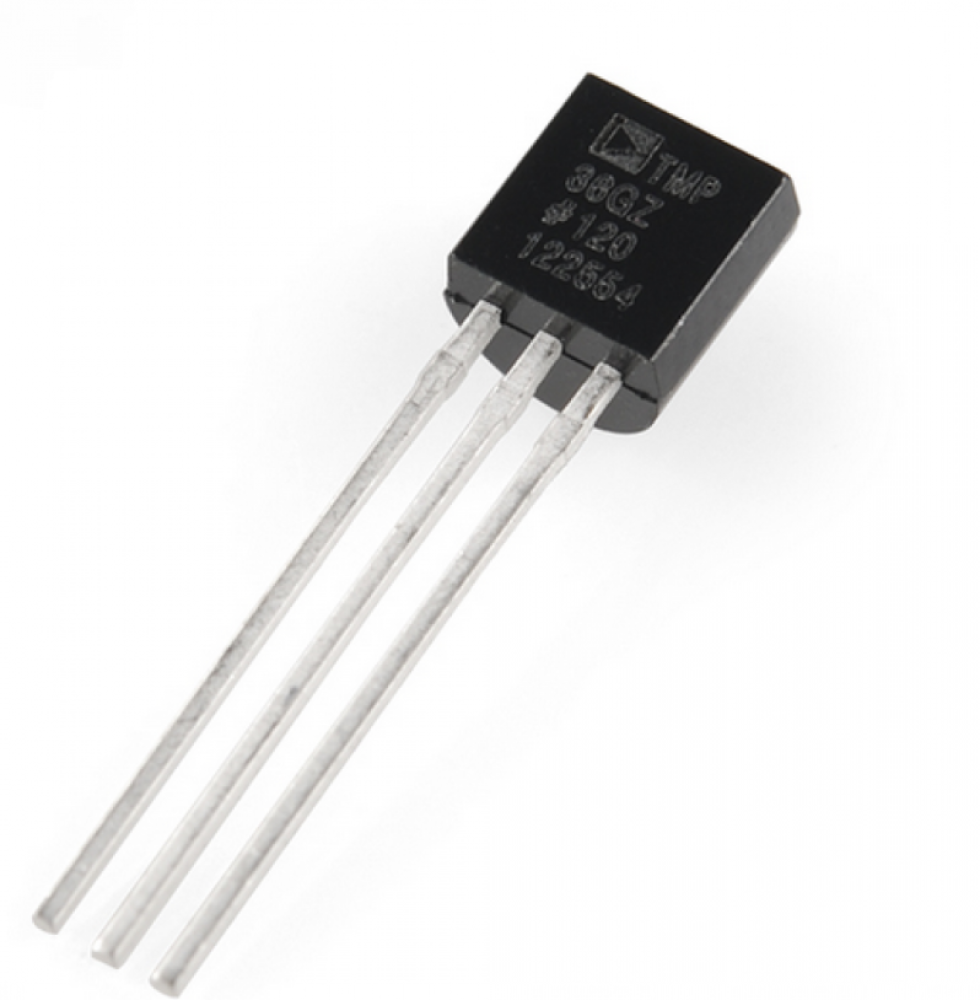

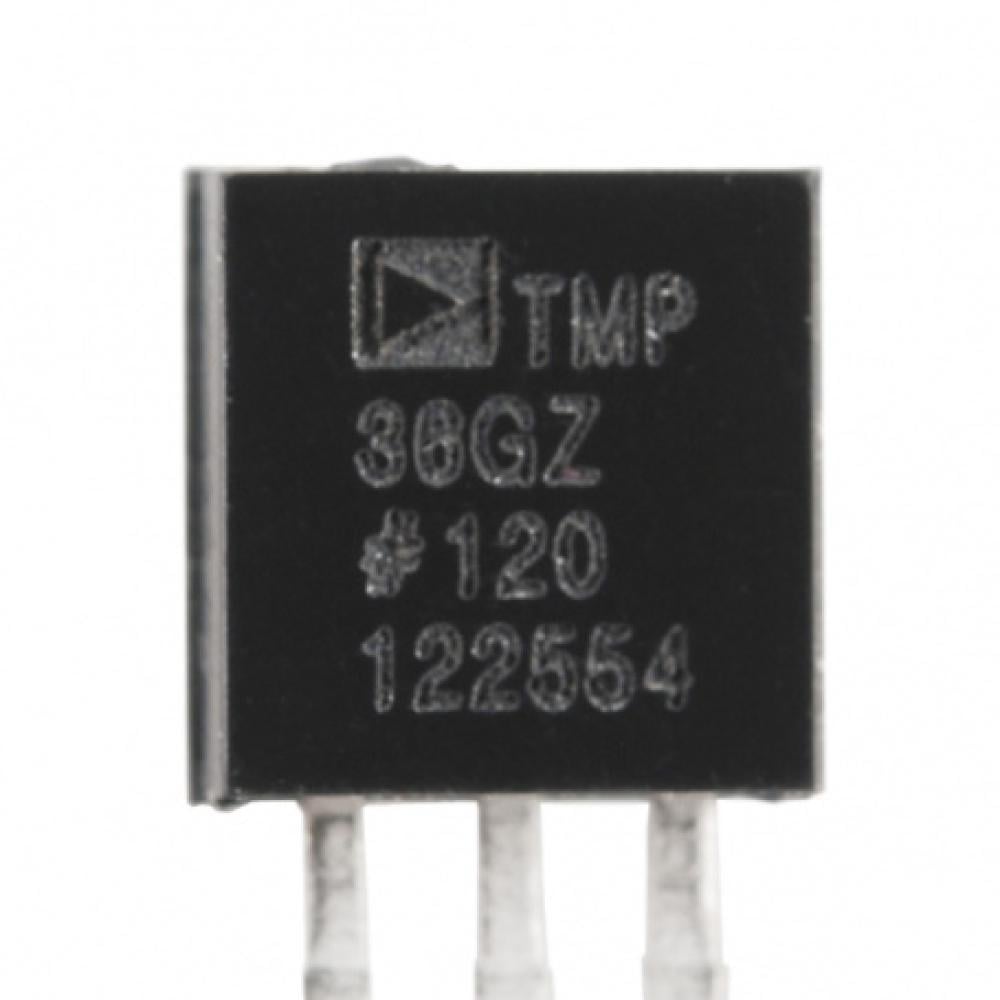

🌡️ TMP36 Analog Temperature Sensor - High Accuracy 🌡️
The TMP36 is a low-voltage, high-accuracy analog temperature sensor that provides a voltage output linearly proportional to the Celsius temperature. It is ideal for embedded systems and easy to use with Arduino or any microcontroller with ADC.
✅ Specifications:
- Sensor Type: Analog
- Operating Voltage: 2.7V – 5.5V
- Temperature Range: -40°C to +125°C
- Accuracy: ±2°C
- Output Scale: 10mV/°C
- Output Voltage at 25°C: ~750mV
- Low power consumption: ~50 µA
🔹 Key Features:
✔ Accurate and linear analog output
✔ No external calibration required
✔ Easy to interface with Arduino, ESP32, etc.
✔ Compact and low-profile package
✔ Suitable for indoor and outdoor monitoring
🔹 Weight: 3 gram
📌 Common Applications:
- Temperature monitoring systems
- Educational electronics projects
- Thermal-sensing robots
- Smart thermostats and HVAC control
- Medical and environmental sensing
