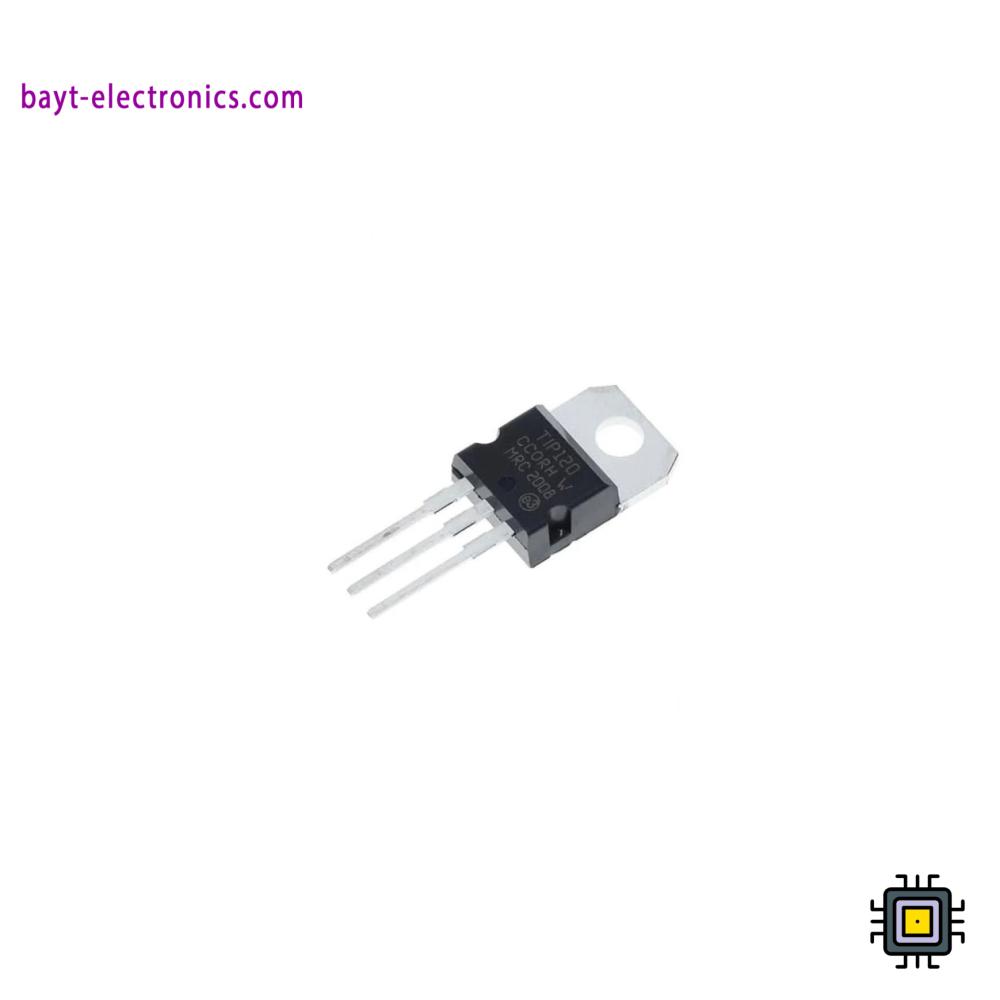

⚡ TIP120 NPN Darlington Power Transistor – High-Gain Switching and Amplification Component ⚡
The TIP120 is a high-gain NPN Darlington transistor designed for power switching and amplification applications.
It can handle up to 5A current and 60V, making it ideal for driving motors, relays, lamps, and other high-power devices using Arduino, ESP32, or Raspberry Pi control signals.
✅ Technical Specifications:
- Type: NPN Darlington Power Transistor
- Model: TIP120
- Package: TO-220
- Collector-Emitter Voltage (Vce): 60V
- Collector Current (Ic): 5A
- Power Dissipation (Ptot): 65W
- Base-Emitter Voltage (Vbe): ≈2V
- DC Current Gain (hFE): ≥1000
- Pin Configuration (left to right, facing flat side):
- 1️⃣ Base
- 2️⃣ Collector
- 3️⃣ Emitter
- Operating Temperature: -65°C to +150°C
- Weight: ≈5g
🔹 Key Features:
✔ High-gain NPN Darlington configuration for powerful switching.
✔ Supports up to 5A and 60V.
✔ Excellent for motor and lighting control.
✔ Compatible with Arduino, Raspberry Pi, and ESP32.
✔ Durable TO-220 package with option for heatsink cooling.
📌 Common Applications:
- DC motor and fan control.
- High-power LED or lamp switching.
- Relay and solenoid driver circuits.
- Power control and signal amplification.
- Robotics and automation systems.
Technical Specifications Sheet: Data Sheet
