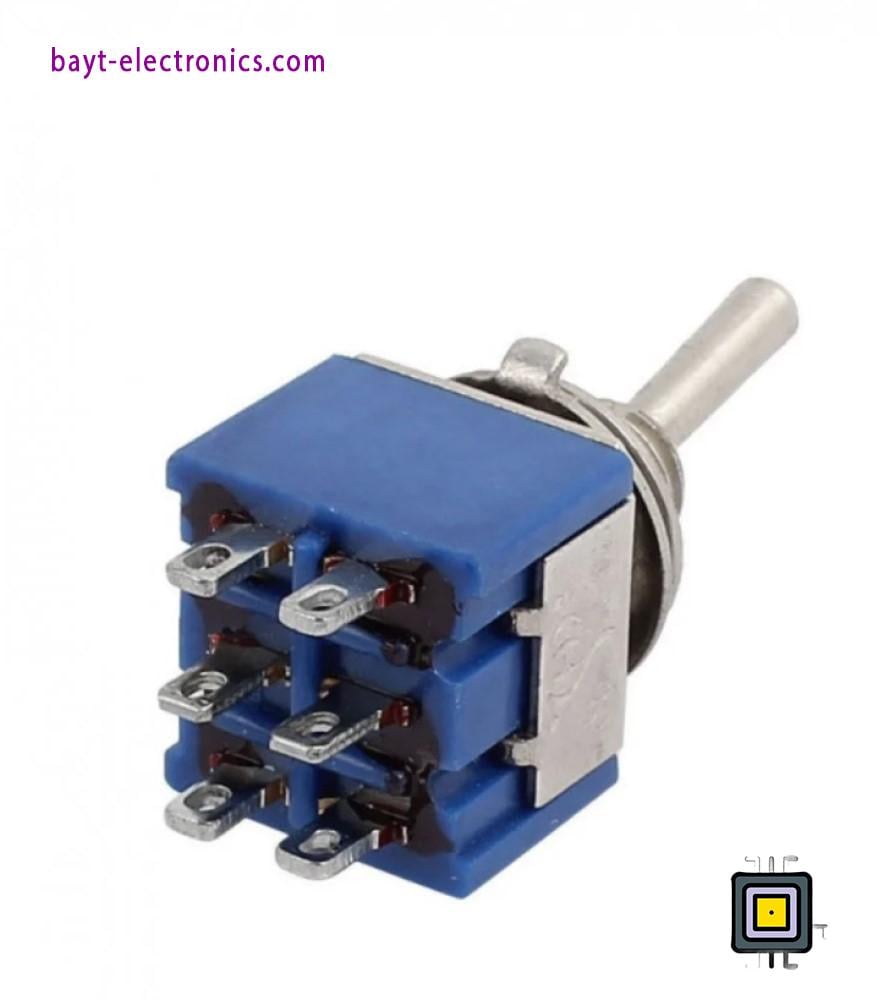

🔀 The ON/OFF/ON toggle switch is a mechanical 3-position switch designed to alternate between two outputs or states, with an intermediate OFF position. It features 6 terminals (DPDT) allowing independent control of two circuits. Built with durable metal housing, this switch is perfect for motor direction control, power source selection, and manual override systems in both DIY and industrial applications.
- ✅ Specifications:
- Type: Toggle Switch – ON/OFF/ON
- Terminals: 6 (Double Pole Double Throw – DPDT)
- Max Voltage: Up to 250V AC
- Max Current: 6A
- Material: Metal body with industrial plastic
- Mounting: Panel mount with securing nut
- Switching Positions: 3 (ON - OFF - ON)
- Lifespan: Over 10,000 operations
- Mounting Hole: ~12mm diameter
🔹 Key Features:
✔️ Clear 3-way toggle operation
✔️ Controls two circuits independently
✔️ Rugged and reliable design
✔️ Suitable for power or motor switching
✔️ Easy to install in control boxes and panels
📌 Common Applications:
- DC motor direction control (Forward / Off / Reverse)
- Power source selection (Battery / Off / Charger)
- Advanced lighting systems
- Manual override systems
- Robotics and industrial control projects
🔸 Product Weight:
Product Weight: 12g
