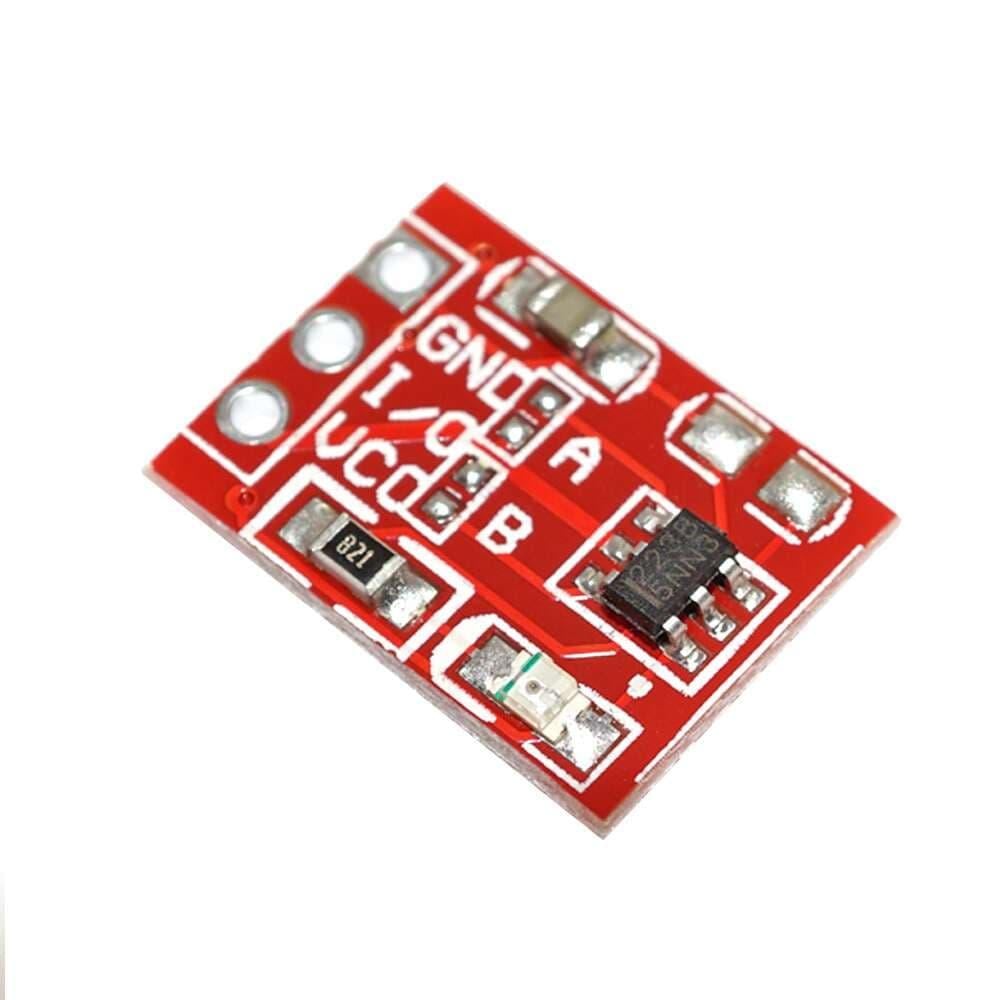

TTP223 Capacitive Touch Sensor Module

👆 TTP223 Capacitive Touch Sensor Module 👆

The TTP223 capacitive touch sensor module offers a smart and modern way to replace traditional mechanical buttons with an electronic touch-sensitive surface. The module detects a human finger touch and converts it into a digital signal, easily readable by microcontrollers like Arduino and Raspberry Pi.

✅ Specifications:

• Sensor Type: Capacitive touch sensor.
• Operating Voltage: 2.0V to 5.5V DC.
• Output: Digital signal (HIGH or LOW).
• Response Time: Fast response (under 60ms on touch).

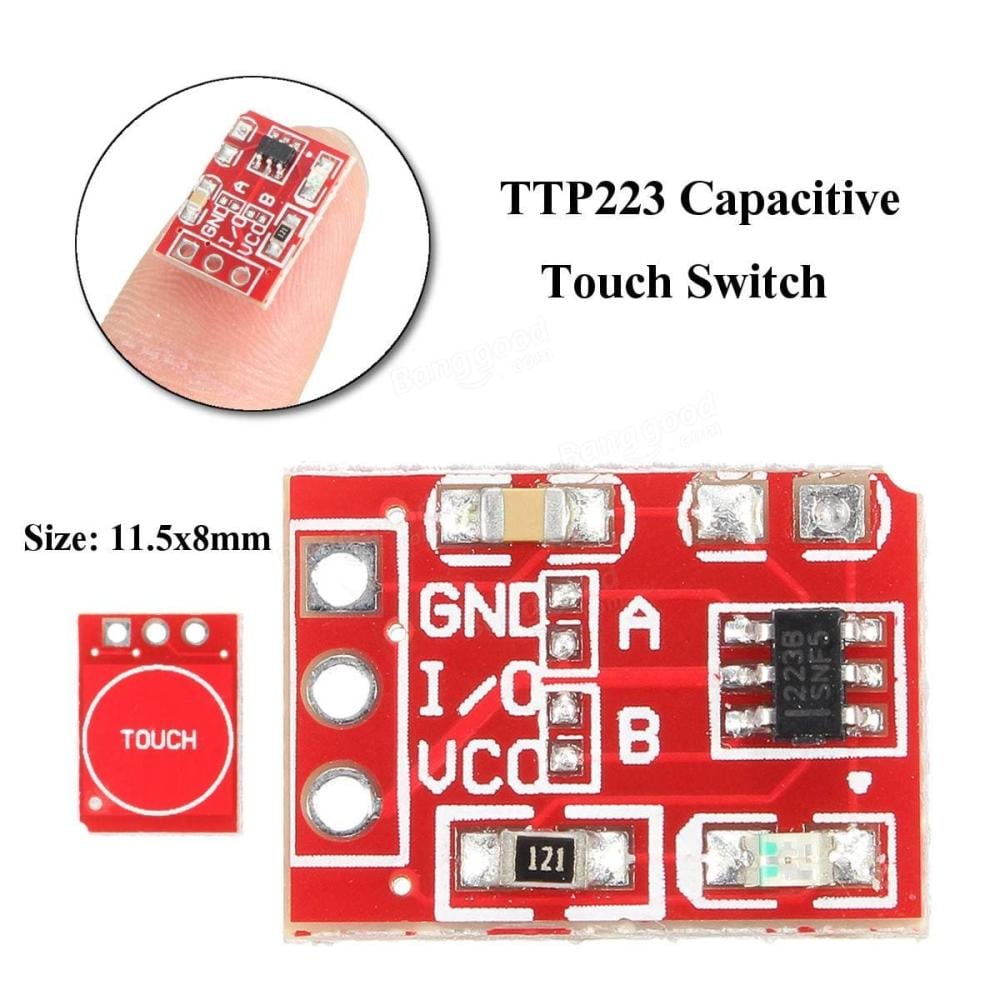

• Module Size: Approximately 24 × 24 mm.
• Built-in LED indicator for touch detection.
• Supports configurable modes (momentary or toggle mode).

🔹 Key Features:

✔ Turns any surface into a smart touch button.

✔ High sensitivity and fast touch detection.

✔ Low power consumption - ideal for portable applications.

✔ Compact and lightweight design for easy integration.

✔ Easy to use with Arduino, ESP32, and other controllers.

🔹 Weight: 5 grams

📌 Common Applications:

• Replacing mechanical buttons with touch interfaces.
• Smart control systems.
• Interactive lighting projects.
• Home automation devices.
• Touch-based interactive games and projects.
