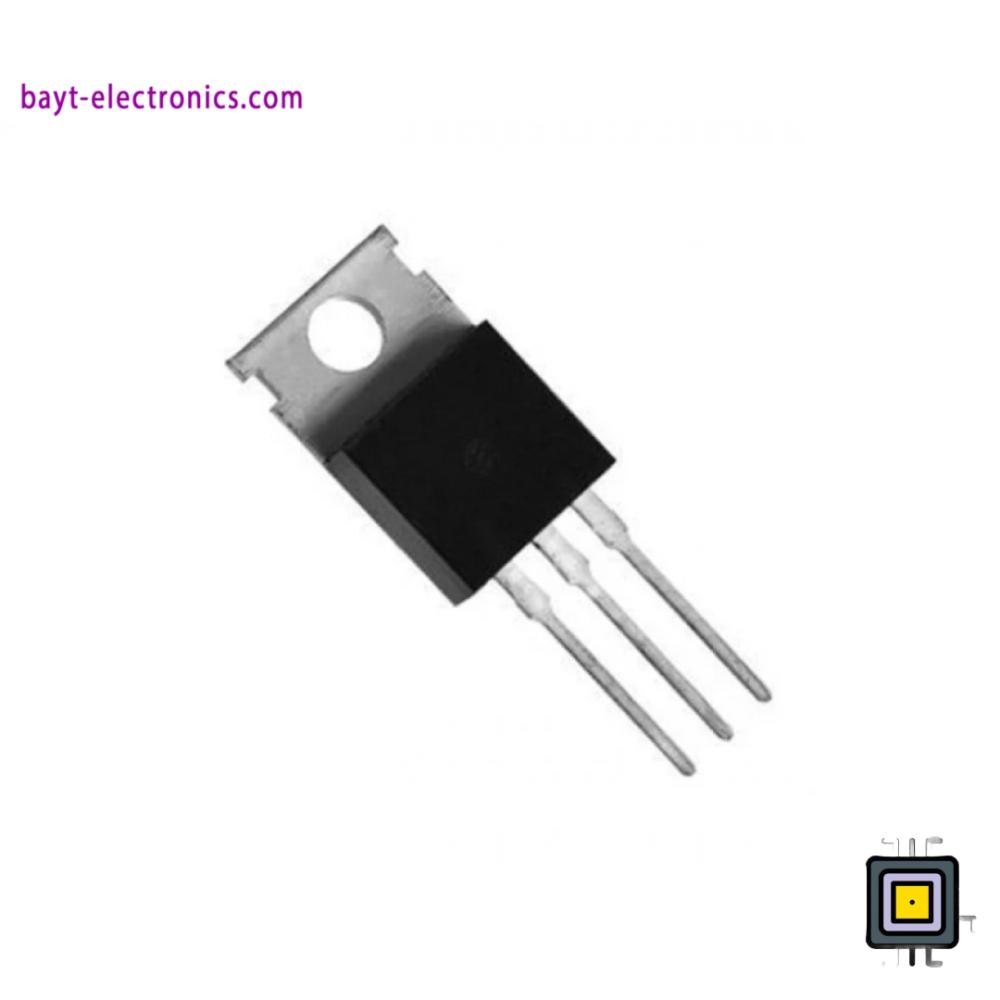

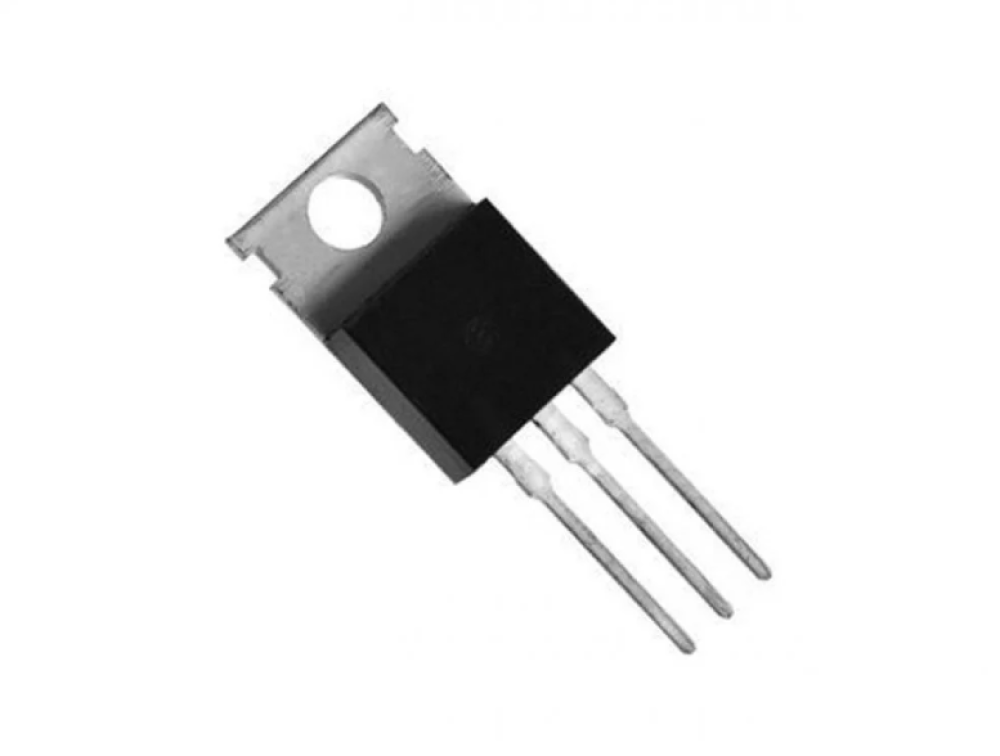

⚡ BTA16-800B Triac – AC Power Switching Device ⚡
The BTA16-800B is a high-performance triac designed for AC power control applications. It supports continuous RMS current up to 16A and can withstand voltages up to 800V, making it ideal for dimmer circuits, motor speed control, and heater regulation. Its TO-220 package includes a mounting hole for heat sink installation.
- ✅ Specifications:
- Type: Triac
- Model: BTA16-800B
- Max RMS On-State Current: 16A
- Peak Repetitive Off-State Voltage: 800V
- Surge Current: Up to 160A
- Gate Trigger Voltage: ~1.3V
- Package: TO-220
- Pins: 3 (MT1, MT2, Gate)
- Mounting: Through-Hole
- Heat Dissipation: Heatsink-compatible
🔹 Key Features:
✔ High current and voltage handling
✔ Bidirectional AC switching
✔ Suitable for resistive and inductive loads
✔ Rugged design with heatsink support
✔ Ideal for industrial and home automation
📌 Common Applications:
- AC light dimming circuits
- AC motor speed control
- Electric heater regulation
- General AC load switching
- Smart energy systems and appliances
🔹 Approximate Weight: 2.8g
