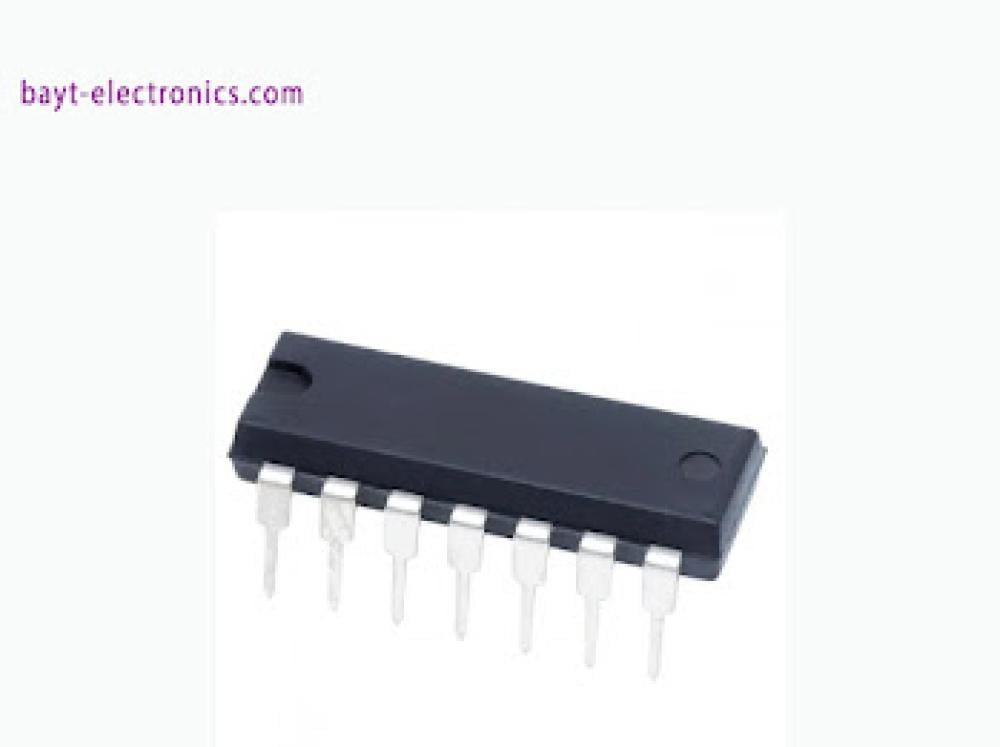

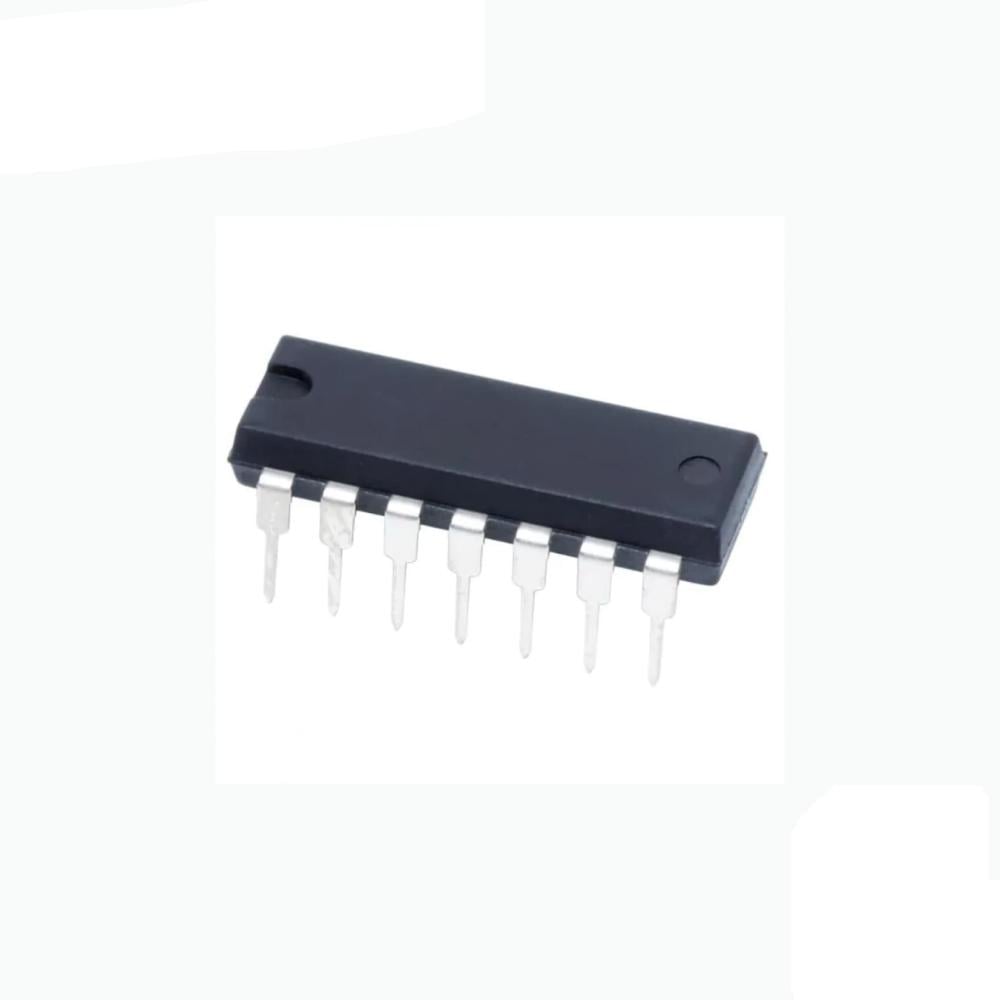

🔌 SN74LS86N XOR Gate - 7486 Quad Logic IC 🔌
The SN74LS86N (7486) is a quad XOR gate IC that performs XOR logical operations between two inputs, outputting a HIGH signal (1) when the inputs are different (one is 0 and the other is 1). This makes it essential for digital circuits that require signal comparison and digital data manipulation.
✅ Technical Specifications:
- Model: SN74LS86N (7486)
- Number of Gates: 4 Independent XOR Gates
- Number of Inputs per Gate: 2 Inputs
- Number of Outputs per Gate: 1 Output
- Operating Voltage Range: 4.75V - 5.25V
- Power Consumption: Low-power, efficient operation
- Propagation Delay: Low for high-speed operation
- Operating Temperature Range: 0°C to 70°C
🔹 Key Features:
✔ Contains 4 independent XOR gates, enhancing design flexibility.
✔ Used in comparing digital signals and processing logical data.
✔ Low voltage operation, ideal for embedded systems.
✔ Efficient and high-performance logic processing for digital circuits.
✔ Compatible with embedded systems like Arduino & Raspberry Pi.
📌 Common Applications:
- Designing advanced logic circuits.
- Robotics and embedded system projects.
- Digital signal processing and data comparison.
- Digital counters and interactive logic gates applications.
- Designing logic units in embedded systems.
🔹 Approximate Weight: 10g
